描述

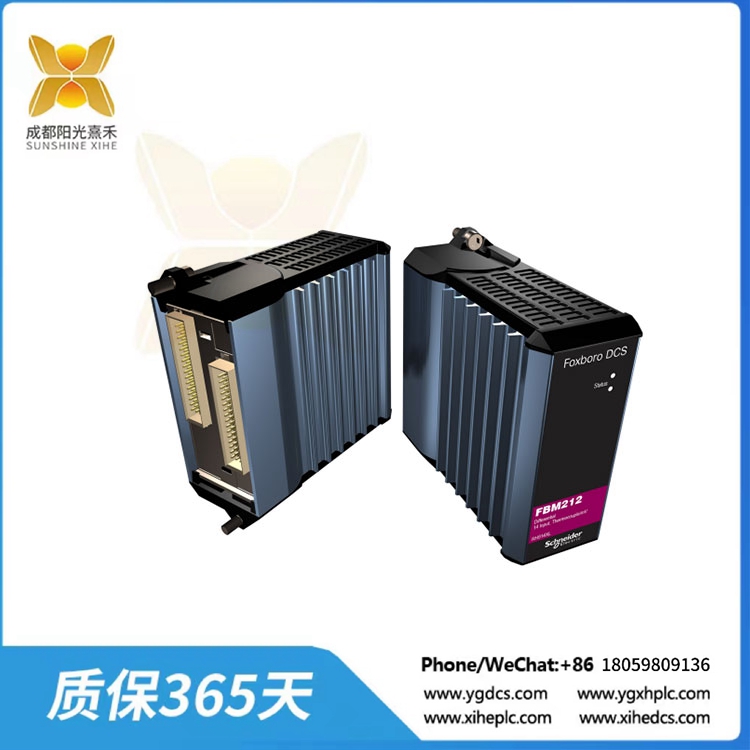

RH914XL-FBM212 熱電偶/mV差分輸入模塊

概述
差分熱電偶/mV輸入模塊(FBM212)包含14個差分隔離熱電偶輸入通道，和一個差分隔離RTD參考結溫度補償通道(用于終端溫度傳感)。每個熱電偶/mV通道接受各種溫度范圍的標準熱電偶，每個熱電偶都提供燒壞檢測(上量程)。每個通道都有一個差分輸入，以允許通道之間的電壓差異而不會引入檢測到的錯誤。
該模塊執行將來自現場傳感器的電氣輸入信號連接到可選冗余現場總線所需的信號轉換。它執行模擬輸入應用程序，該程序?yàn)檗D(zhuǎn)換時間和變化率限制提供可配置選項。

特性
?14通道輸入熱電偶信號
?1隔離RTD參考結補償通道(用于終端溫度傳感)
?每個通道有一個差分輸入
?堅固耐用的設計適用于G3(惡劣)環境的外殼
?執行模擬輸入應用程序，提供轉換時間和可配置的變化率限制選項
?通過每個通道的sigma-delta數據轉換實現高精度
?終端組件(TAs)用于本地或遠程連接現場布線到fbm212

RH914XL-FBM212 熱電偶/mV差分輸入模塊

Overview
The Differential Thermocouple/mV Input Module (FBM212) contains 14 differentiallyisolated thermocouple input channels, and one differentially isolated RTD referencejunction temperature compensation channel (for terminal temperature sensing). Eachthermocouple/mV channel accepts standard thermocouples for various temperatureranges, and each provides thermocouple burnout detection (up-scale). Each channelhas a differential input to allow voltage differences between channels withoutintroducing detected errors.
The module performs the signal conversion required to interface the electrical inputsignals from the field sensors to the optionally redundant Fieldbus. It executes ananalog input application program, which provides configurable options for ConversionTime and Rate of Change Limits.

Features
? 14 channels for input of thermocouple signals
? 1 isolated RTD reference junction compensation channel (for terminaltemperature sensing)
? Each channel has a differential input
? Rugged design suitable for enclosure in Class G3 (harsh) environments
? Execution of an analog input application program that provides conversion timeand configurable options for Rate of Change Limits
? High accuracy achieved by sigma-delta data conversions for each channel
? Termination Assemblies (TAs) for locally or remotely connecting field wiring to theFBM212
