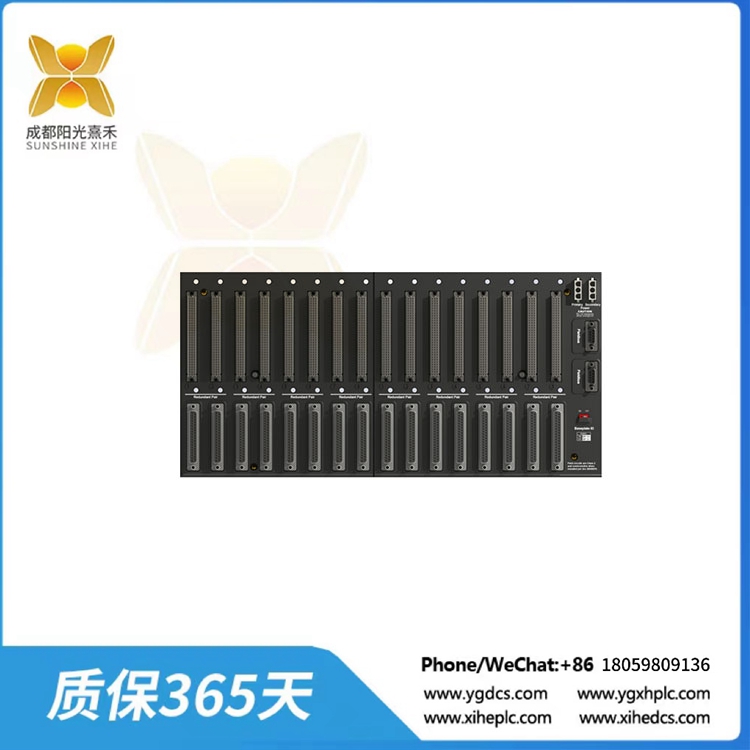

RH916RB 緊湊型200系列16插槽水平底板

緊湊型200系列16槽水平底板安裝多達16個緊湊型200系列現場總線模塊及其相關的現場信號終端。支持簡單型和冗余型緊湊fbm。底板支持小型，中型和大型Foxboro?dcs的分布式控制和監控。它設計用于安裝在水平DIN導軌或機架上。

特性
?16緊湊型200系列現場總線模塊位置
?僅水平安裝
?冗余連接到2mbps模塊現場總線
?主電源和從電源24v直流
?I/O終止組件的現場連接
?每對冗余模塊的冗余適配器
?用于底板識別的撥碼開關
?增加緊湊型或標準200系列底板，而無需將系統從服務中移除(需要冗余總線)
無源背板，提高系統可靠性

緊湊型200系列底板僅提供水平DIN導軌安裝配置(見圖1)。這種配置可用于外殼內部，外殼外部或安裝在DIN導軌上。

RH916RB 緊湊型200系列16插槽水平底板

The Compact 200 Series 16-slot horizontal baseplate houses up to 16 Compact 200 Series Fieldbus modules (fbm) and their associated field signal terminals. Support simple and redundant compact fbm. The baseboard supports distributed control and monitoring of small, medium and large Foxboro?dcs. It is designed to be mounted on horizontal DIN rails or racks.

peculiarity
?16 Compact 200 series fieldbus module positions
? Horizontal installation only
? Redundant connection to 2mbps module fieldbus
? Main and secondary power supply 24v DC
?I/O terminates the field connection of the component
? Redundant adapters per pair of redundant modules
? Dip switch for baseboard identification
? Add compact or standard 200 series baseboards without removing the system from service (redundant bus required)
Passive backplane improves system reliability

The compact 200 Series baseplate is only available in a horizontal DIN rail mounting configuration (see Figure 1). This configuration can be used inside the housing, outside the housing or mounted on a DIN rail.
