描述

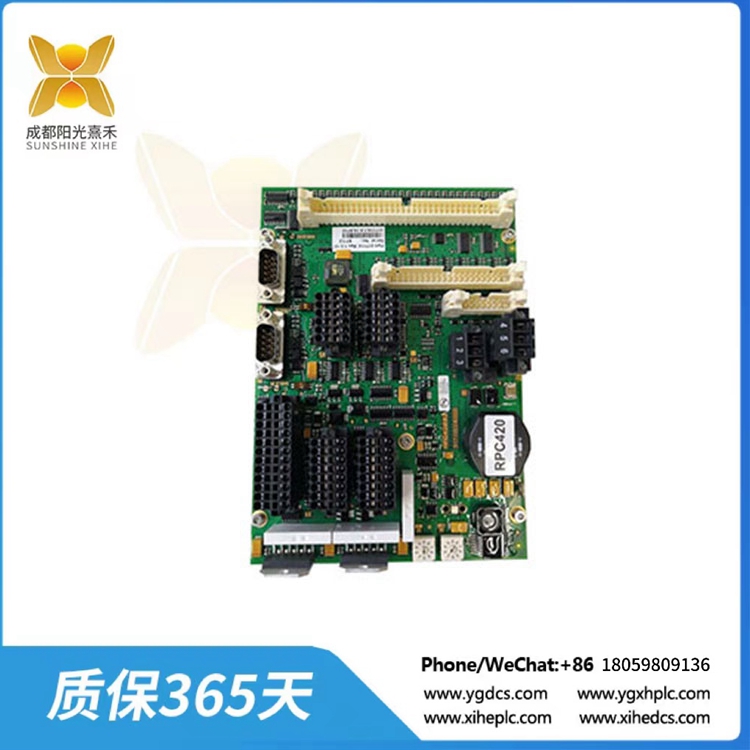

RPC420 杠桿面板

k推力遠程控制系統(RCS)包括一個或多個控制位置，可以位于艦橋上和發動機控制室(ECR)的不同位置。在每個控制位置將有一個杠桿面板的單杠桿或雙杠桿面板，每個杠桿面板用于控制推進器，推進裝置和方向舵，以及用于船舶控制系統選擇和控制位置之間指揮控制責任轉移的公用事業面板。

杠桿特性
?單或雙手動杠桿面板
?rpc420面板控制器用于每個手動杠桿
?緊急停止按鈕由透明塑料蓋保護，防止意外操作
?結合工作狀態和開機指示燈
?十個可配置的，彩色編碼，系統和運行狀態燈與定制的文字
?十二個可配置的功能按鈕與狀態燈實用面板
?帶有狀態燈的6個控制系統(模式)選擇按鈕
?六個可配置，顏色編碼，系統和運行狀態燈與定制的文字
?命令轉移鍵
?聲音報警靜音按鈕
?燈測試按鈕?面板調光控制

描述
杠桿面板是獨立的單元，設計用于在控制位置面板或橋控制臺內平裝

RPC420面板控制器提供控制位置內所有設備之間的接口，即杠桿，杠桿面板，公用事業面板和指示儀表。

RPC420還通過杠桿通信鏈路(LCL)提供到推力器控制器的接口。

實用面板是連接多達十二個杠桿面板的通用面板。它包含用于控制一個控制位置的普通按鈕和燈，并安裝在控制位置面板上。

RPC420 杠桿面板

The K-Thrust Remote Control System(RCS) comprises one or more controlpositions that can be located in variouspositions on the Bridge and in the EngineControl Room (ECR). At each control position there will be singlelevers with one Lever Panel each or duallevers with two Lever Panels each for thecontrolled thrusters, propulsion units andrudders together with a Utility Panel forvessel control system selection and transferof command control responsibility betweenthe control positions.

Features Levers
? Single or dual manual leverLever panel
? RPC420 Panel Controller for each manual lever
? Emergency stop button protected from accidentaloperation by a clear plastic cover
? Combined operational status and power on lamp
? Ten configurable, colour-coded, system andoperational status lamps with customised text
? Twelve configurable, function buttons with statuslampsUtility Panel
? Six control system (mode) selection buttons withstatus lamps
? Six configurable, colour-coded, system andoperational status lamps with customised text
? Command transfer button
? Audible alarm silence button
? Lamp test button? A panel dimming control

Description
Lever panels are self-contained units designed forflush mounting in a Control Position panel or bridgeconsole

The RPC420 panel controller provides the interfacebetween all devices within the Control Position, i.e.Levers, Lever Panels, Utility Panel and Indicatorinstruments.

The RPC420 also provides the interface to theThruster Controller via the Lever CommunicationLink (LCL).

The Utility Panel is a common panel for connectionof up to twelve lever panels. It contains commonbuttons and lamps for controlling the one controlposition and is mounted in the control position panel.
