描述

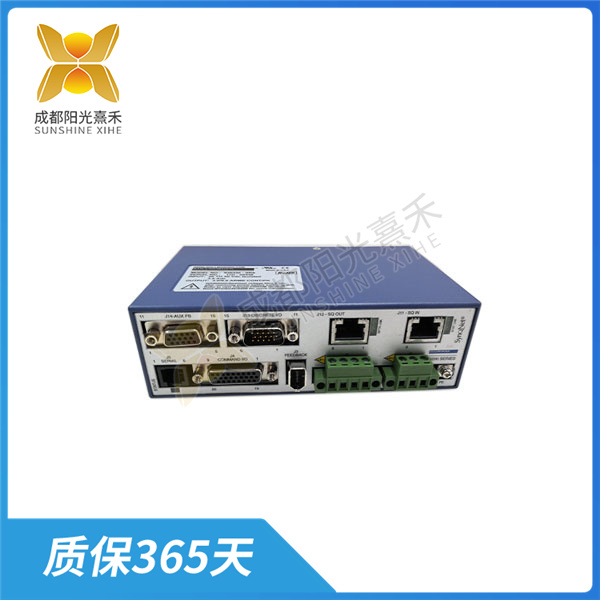

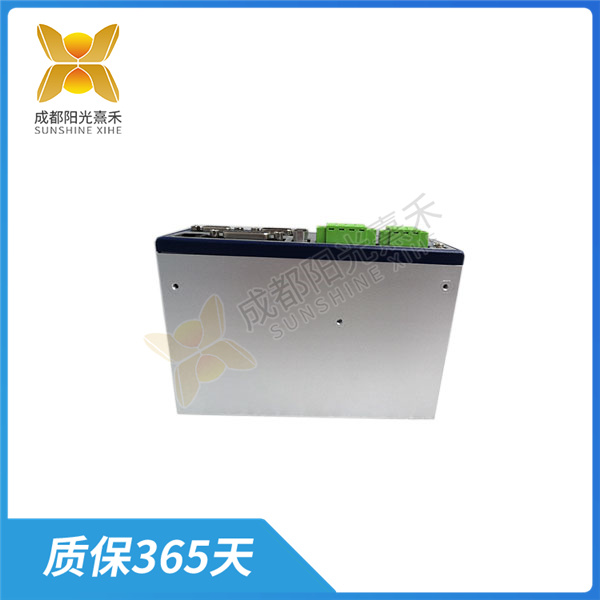

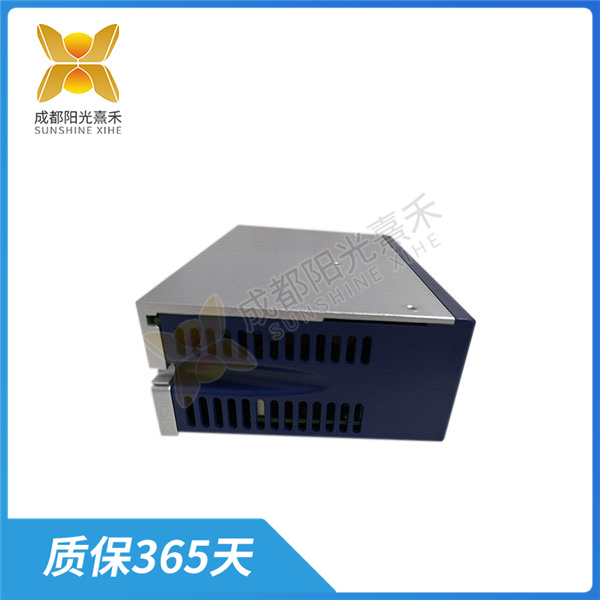

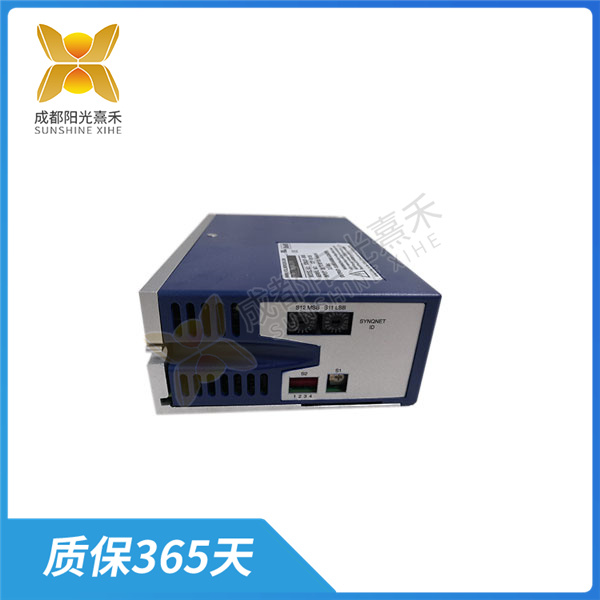

S20330-SRS 伺服驅動器將這些脈沖信號轉換為電機的控制信號

伺服驅動器的工作原理主要是通過接收來自控制器的脈沖信號，驅動電機轉動，從而實現對機械設備的精確控制。

具體來說，S20330-SRS伺服驅動器首先接收來自控制器的脈沖信號，這些脈沖信號包含了電機的轉動方向和速度等信息。然后，伺服驅動器將這些脈沖信號轉換為電機的控制信號，通過驅動電機內部的電子換向器，控制電機的電流和電壓，從而驅動電機轉動。

在電機轉動的過程中，S20330-SRS伺服驅動器還會通過編碼器等傳感器實時監測電機的位置和速度等信息，并將這些信息反饋給控制器。控制器根據這些反饋信息調整脈沖信號的頻率和幅度，從而實現對機械設備的精確控制。

此外，伺服驅動器還具有一些其他的控制功能，如速度控制、轉矩控制等。這些功能可以通過控制器發送的特定信號實現。例如，通過發送速度控制信號，伺服驅動器可以控制電機以指定的速度轉動；通過發送轉矩控制信號，伺服驅動器可以控制電機以指定的轉矩輸出。

伺服驅動器又稱為“伺服控制器”、“伺服放大器”，是用來控制伺服電機的一種控制器，屬于伺服系統的一部分，主要應用于高精度的定位系統。

伺服驅動器一般通過位置、速度和力矩三種方式對伺服馬達進行控制，實現高精度的傳動系統定位，是傳動技術的高端產品。

伺服驅動器的工作原理：首先功率驅動單元通過三相全橋整流電路對輸入的三相電或者市電進行整流，得到相應的直流電。 經過整流好的三相電或市電，再通過三相正弦PWM電壓型逆變器變頻來驅動交流伺服電機。 功率驅動單元的整個過程可以簡單的說就是AC-DC-AC的過程，整流單元（AC-DC）主要的拓?fù)潆娐肥侨嗳珮虿豢卣麟娐贰?/p>

總之，S20330-SRS伺服驅動器的工作原理是通過接收并解析來自控制器的脈沖信號，驅動電機轉動，同時通過傳感器反饋電機的位置和速度等信息給控制器，從而實現對機械設備的精確控制。

S20330-SRS 伺服驅動器將這些脈沖信號轉換為電機的控制信號

The working principle of the servo driver is mainly to drive the motor to rotate by receiving the pulse signal from the controller, so as to realize the precise control of the mechanical equipment.

Specifically, the S20330-SRS servo driver first receives pulse signals from the controller, which contain information such as the direction and speed of the motor rotation. Then, the servo driver converts these pulse signals into the control signal of the motor, and controls the current and voltage of the motor by driving the electronic commutator inside the motor, thereby driving the motor to rotate.

In the process of motor rotation, the S20330-SRS servo drive will also monitor the position and speed of the motor through sensors such as encoders in real time, and feed this information to the controller. According to these feedback information, the controller adjusts the frequency and amplitude of the pulse signal, so as to achieve accurate control of the mechanical equipment.

In addition, the servo drive also has some other control functions, such as speed control, torque control and so on. These functions can be implemented through specific signals sent by the controller. For example, by sending a speed control signal, the servo drive can control the motor to rotate at a specified speed; By sending a torque control signal, the servo drive can control the motor to a specified torque output.

Servo driver, also known as “servo controller” and “servo amplifier”, is a controller used to control the servo motor, which is a part of the servo system, mainly used in high-precision positioning system.

Servo drive generally through the position, speed and torque three ways to control the servo motor, to achieve high-precision transmission system positioning, is a high-end product of transmission technology.

The working principle of the servo driver: First, the power drive unit through the three-phase full bridge rectifier circuit to the input three-phase or mains rectified, to obtain the corresponding direct current. The AC servo motor is driven by a three-phase sinusoidal PWM voltage inverter after good rectification or mains power. The whole process of the power drive unit can be simply said to be the process of AC-DC-AC, and the main topological circuit of the rectifier unit (AC-DC) is a three-phase full-bridge uncontrolled rectifier circuit.

In short, the working principle of the S20330-SRS servo driver is to drive the motor by receiving and analyzing the pulse signal from the controller, and at the same time feedback the position and speed of the motor through the sensor to the controller, so as to achieve accurate control of the mechanical equipment.
