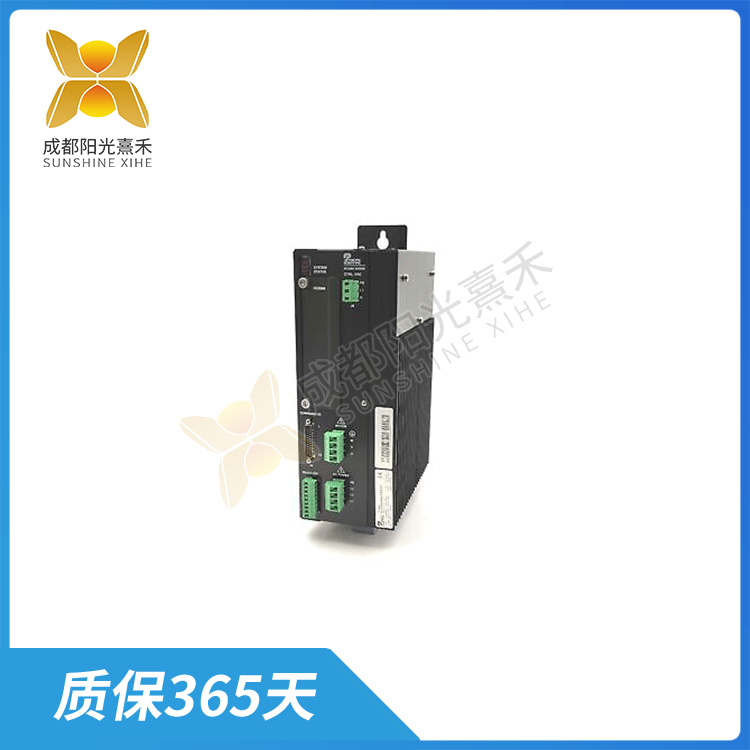

SCE903AN-002-01 PACIFIC SCIENTIFIC 伺服驅動器

SCE903AN-002-01是一款伺服驅動器，具有多種功能和特點。以下是對其進行詳細解釋：

1. 伺服驅動器：伺服驅動器是一種控制伺服電機的設備，它負責接收控制信號，并驅動伺服電機進行精確的位置、速度和力矩控制。

2. 命令接口：SCE903AN-002-01的命令接口選項卡目前為“未安裝”，意味著它可能需要用戶根據需要選擇合適的命令接口來與其進行通信和控制。

3. 通信/設置接口：該伺服驅動器支持模擬或增量數字命令，這意味著它可以通過模擬信號或數字信號接收控制指令，實現與上位機或其他控制系統的通信。

4. 功率水平：在25°C和50°C的條件下，該伺服驅動器的連續工作電流為3.75A，峰值電流可達7.5A。這意味著它具有較高的功率輸出能力，適用于需要較大力矩和速度控制的場合。

5. 冷卻選項：SCE903AN-002-01采用了無風扇、對流冷卻的設計，這意味著它不需要額外的風扇來進行散熱，而是通過自然對流來實現冷卻，從而降低了噪音和維護成本。

6. 定制代碼：該伺服驅動器的定制代碼為002，這可能與生產批次、軟件版本或特定配置有關。用戶可以通過這個代碼來識別其硬件和軟件配置。

7. 固件：SCE903AN-002-01運行的是標準基礎伺服軟件，這意味著它具備基本的伺服控制功能，如位置控制、速度控制和力矩控制等。

8. 特點：

   • 數字旋變數字轉換：該伺服驅動器支持?jǐn)?shù)字旋轉變壓器的信號轉換，可以實現更精確的位置檢測和反饋。
   • 自動調諧：驅動器具備自動調諧功能，可以自動調整控制參數以適應不同負載和工作條件，提高系統的穩定性和性能。
   • IGBT PWM功率級：采用IGBT（絕緣柵雙極晶體管）作為功率開關器件，實現高效的PWM（脈沖寬度調制）控制，提高電機的控制精度和動態響應能力。
   • 七段狀態顯示：該伺服驅動器具有七段狀態顯示功能，可以直觀地顯示驅動器的當前工作狀態，方便用戶進行監控和維護。

綜上所述，SCE903AN-002-01是一款功能強大、性能穩定的伺服驅動器，適用于各種需要精確控制和高效調速的場合。通過合理配置和控制接口的選擇，它可以與各種控制系統和設備進行無縫集成，實現高效、穩定和可靠的運動控制。

SCE903AN-002-01 PACIFIC SCIENTIFIC 伺服驅動器

The SCE903AN-002-01 is a servo drive with a variety of functions and features. Here is a detailed explanation:

Servo driver: A servo driver is a device that controls a servo motor, which is responsible for receiving control signals and driving the servo motor for precise position, speed and torque control.

Command Interface: The Command interface TAB of SCE903AN-002-01 is currently “not installed”, which means that it may require the user to select the appropriate command interface to communicate and control with it as needed.

Communication/Setup interface: The servo drive supports analog or incremental digital commands, which means that it can receive control commands via analog or digital signals to achieve communication with the host computer or other control systems.

Power level: At 25°C and 50°C, the servo drive has a continuous operating current of 3.75A and a peak current of 7.5A. This means that it has a high power output capacity and is suitable for applications where large torque and speed control are required.

Cooling options: The SCE903AN-002-01 has a fanless, convection-cooled design, which means that it does not require additional fans for heat dissipation, but instead achieves cooling through natural convection, which reduces noise and maintenance costs.

Custom code: The custom code for this servo drive is 002, which may be related to the production batch, software version, or specific configuration. Users can use this code to identify their hardware and software configurations.

Firmware: The SCE903AN-002-01 runs standard basic servo software, which means it has basic servo control functions such as position control, speed control and torque control.

Features:

Digital rotary digital conversion: The servo driver supports signal conversion of digital rotary transformers for more accurate position detection and feedback.

Automatic tuning: The driver has automatic tuning function, which can automatically adjust the control parameters to adapt to different loads and working conditions, improve the stability and performance of the system.

IGBT PWM power level: Using IGBT (insulated gate bipolar transistor) as a power switching device, to achieve efficient PWM (pulse width modulation) control, improve the control accuracy and dynamic response ability of the motor.

Seven-segment status display: The servo drive has a seven-segment status display function, which can visually display the current working status of the drive, convenient for users to monitor and maintain.

In summary, the SCE903AN-002-01 is a powerful and stable servo drive for a variety of applications requiring precise control and efficient speed regulation. Through reasonable configuration and control interface selection, it can be seamlessly integrated with various control systems and equipment to achieve efficient, stable and reliable motion control.
