SCXI-1100 NI

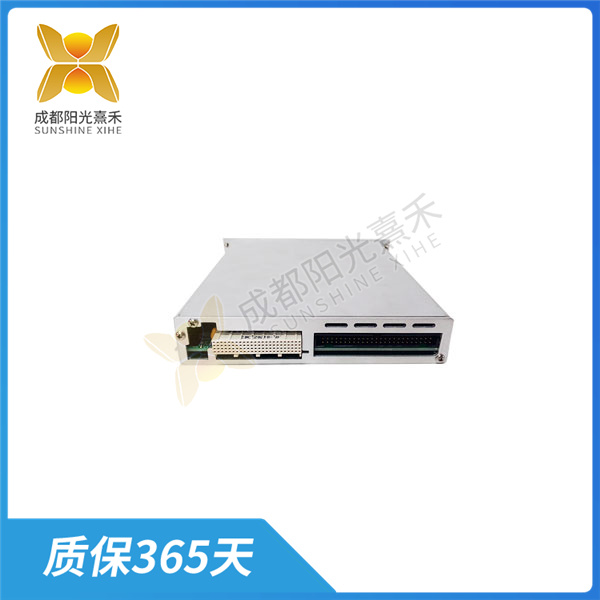

National Instruments SCXl-1100 Low Pass Filter Input Module

The SCXL1100 (part number: 776572-41) has eight low-pass circular filters and eight differential input amplifiers. This low-pass filter input module can be used for low-pass filtering and anti aliasing applications, as well as general signal amplification and filtering. This module is also recommended for sharp filter roll off. All eight channels must be set to the same cutoff frequency, but users can programmatically bypass the low-pass filter for each channel. The sampling rate of this device is as high as 333 kS/s, and the attenuation rate is 135 dB/octave. NISCX1-1100 can be used with National lnstruments EIM series DAQ instruments. A DAQ instrument can be used to control the combination of several SCXI-1141 modules with other SCXI modules in the chassis.

By using the N SCXH-1100 low surge filter input module, the versatility of 10.000 discrete software programmable cutoff frequencies can be achieved through the use of analog filters and switched capacitor source waveguides, while maintaining conventional performance. Low noise performance of active filters with sustained time. This module also has external clock inputs and outputs, allowing users to use an external clock to set the filter cutoff frequency in tracking filter applications. Setting the automatic zeroing mode to “one” will help improve measurement accuracy. When automatic zeroing is activated, the input of the SCX1-1100 module is internally grounded. The driver completes the measurement at the beginning of the task and subtracts the measurement offset from all upcoming measurements.

SCX1-1100 runs with N-DAQmx driver software that is compatible with software packages or application development environments (ADEs) such as LabVIEW or LabWindows/CVl. It can be configured using the Measurement&Automation Exor (MAX) tool. The physical size of the NI device is 1.2×6.8×8.0 inches. The outdated status of SCX1100 has been officially announced by National instruments, but the module can still be purchased and repaired by Apex Waves.
SCX1-1100 can be used for calibration, although the recommended calibration cycle for each part may vary, most parts should be calibrated annually or every two years to ensure accuracy. If you need SCXL-1141 calibrated Apex Waves, provide options. We provide high-quality NIST certified calibration through a third party, with an average turnaround time of 1 to 2 weeks. When you order SCX1-1100 from us, you can request basic (unapproved) internal calibration to calibrate the components according to the manufacturer’s specifications before shipment. Call or email us immediately to learn more about calibrating SCXI-1141!
