描述

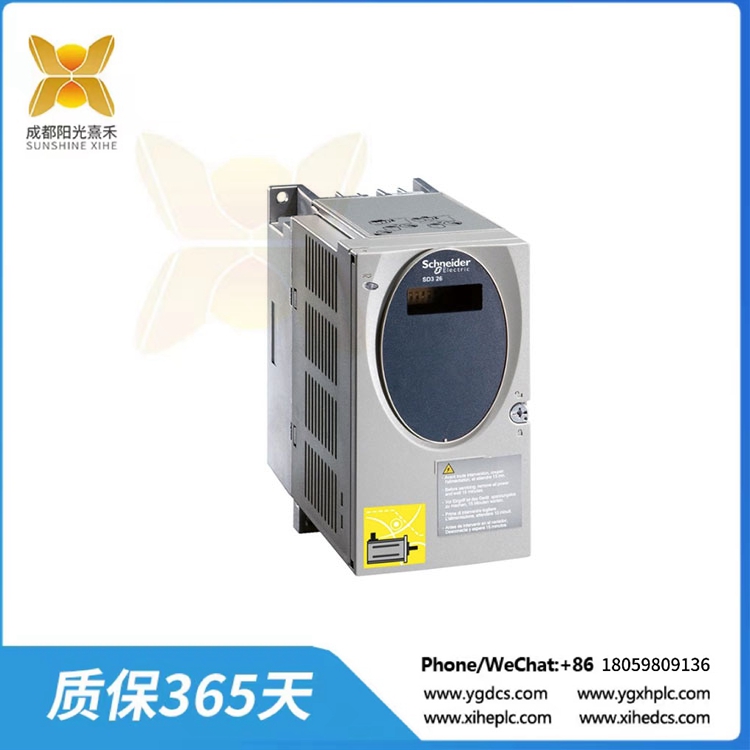

SD326DU25S2 運動控制步進電機驅動

該產品是lexum SD3和電機的一部分，提供三相步進驅動器和步進電機。采用集成脈沖/方向通信接口的三相步進電機驅動。即使在低速下也可獲得高扭矩。它是一種電機驅動器，額定電源電壓為100V ~ 120V, 200V ~ 230V，電機相電流為2.5A, 230V時標稱功率為270W，電機驅動器的最大機械轉速為3000RPM。采用自然對流冷卻方式。它是IP20和IP40等級的產品。其尺寸為72毫米(寬)× 140毫米(深)× 145毫米(高)。它重1.1公斤。lexum SD3具有優異的等速特性，是印刷，造紙，包裝，搬運，標簽，紡織工業，掃描，食品和飲料等應用的理想選擇。本產品通過了CUL、CE、UL認證。它符合EN/IEC 50178, EN/IEC 61800-3環境1,EN/IEC 61800-3環境1,EN/IEC 61800-3和EN/IEC 61800-5-1標準。SD3是一款普遍適用的步進電機驅動器。這個包可以在很短的時間內準備好操作。將步進電機與驅動器連接，設置電流和步進分辨率。用于運動控制的步進驅動器和步進電機。

主要
產品范圍:lexum SD3
產品或部件類型:運動步進驅動
設備簡稱:SD326
電源電壓限制:
100……120 V
200……240 V

尺寸
身高:145毫米
寬度:72毫米
深度:140毫米
耐沖擊性:15gn, 11ms，符合IEC 60068-2-27
凈重:1.1 kg

SD326DU25S2 運動控制步進電機驅動

The product is part of the lexum SD3 and Motors offering three-phase stepper drives and stepper motors. Three-phase stepper motor drive with integrated pulse/direction communication interface. High torque even at low speeds. It is a motor driver, rated power supply voltage is 100V ~ 120V, 200V ~ 230V, motor phase current is 2.5A, 230V nominal power is 270W, the maximum mechanical speed of the motor driver is 3000RPM. Natural convection cooling method is adopted. It is rated IP20 and IP40. Its dimensions are 72 mm (width) x 140 mm (depth) x 145 mm (height). It weighs 1.1 kilograms. The lexum SD3 has excellent isokinetic characteristics and is ideal for applications such as printing, paper making, packaging, handling, labelling, textile industry, scanning, food and beverage. This product has passed CUL, CE, UL certification. It complies with EN/IEC 50178, EN/IEC 61800-3 Environment 1,EN/IEC 61800-3 Environment 1,EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. SD3 is a universal stepper motor driver. The package can be ready for operation in a very short time. Connect the stepper motor to the driver, set the current and step resolution. Stepper drivers and stepper motors for motion control.

main
Product range :lexum SD3
Product or part type: Motion stepper drive
Device abbreviation :SD326
Power supply voltage limit:
100… 120 V
200… 240 V

dimension
Height :145 mm
Width :72 mm
Depth :140 mm
Impact resistance :15gn, 11ms, in accordance with IEC 60068-2-27
Net weight :1.1 kg
