描述

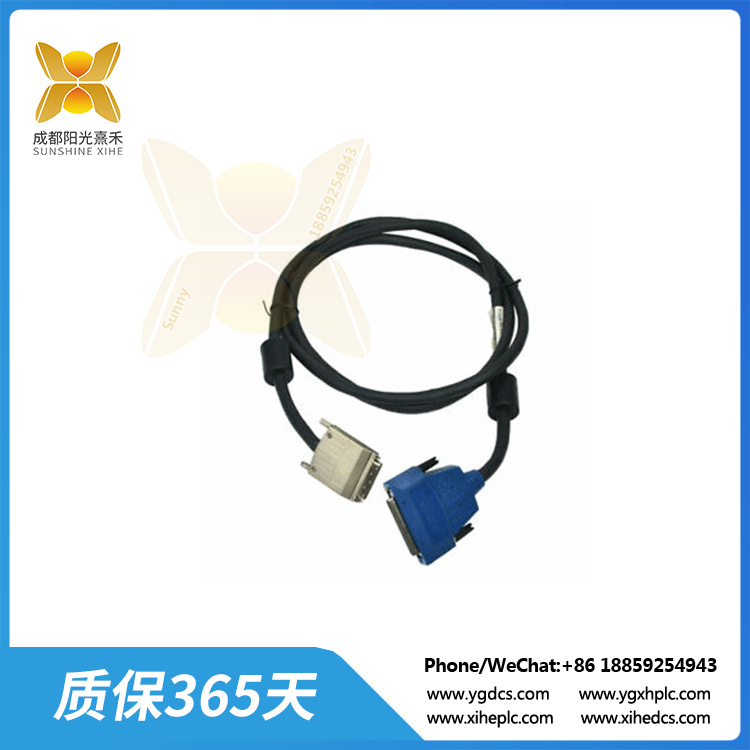

SHC68-68-EPM 多功能線纜

SHC68-68-EPM是National Instruments（簡稱NI）生產的一款多功能線纜，主要用于將DAQ（數據采集）設備連接到采用D-SUB連接器的配件或電纜。該電纜具有獨特的設計，包含了獨立的數字和模擬部分，用于模擬輸入的單獨屏蔽雙絞線、單獨屏蔽的模擬輸出，以及用于關鍵數字I/O的雙絞線，這種設計有助于降低高速板卡的串擾（crosstalk），確保信號的穩定和準確傳輸。

SHC68-68-EPM電纜的一端是68針0.050系列D型連接器，另一端是68針VHDCI連接器，使得用戶能夠將M系列設備連至標準68針附件。請注意，對于具有2個連接器的M系列設備，可能需要兩條電纜才能訪問所有的針腳。

此外，SHC68-68-EPM電纜的長度有多種選擇，包括0.5米、1米、2米、5米和10米，用戶可以根據實際需要選擇合適的長度。同時，該電纜也符合RoHS指令，保證了產品的環保性能。

在性能方面，SHC68-68-EPM電纜經過了嚴格的質量檢測與校驗，以保證其穩定性和可靠性。大多數設備在裝運之前都會進行質量檢測與校驗，以確保達到最優性能。同時，如果需要，用戶還可以申請國家計量證書。

總的來說，SHC68-68-EPM是一款性能優良、設計獨特的多功能線纜，適用于各種需要精確數據采集和傳輸?shù)膽脠鼍啊?/p>

SHC68-68-EPM 多功能線纜

The SHC68-68-EPM is a multi-function cable manufactured by National Instruments (NI) for connecting DAQ (Data acquisition) devices to accessories or cables using D-SUB connectors. The cable has a unique design that includes separate digital and analog sections, individually shielded twisted pair for analog inputs, individually shielded analog output, and twisted pair for critical digital I/O, which helps reduce crosstalk on high-speed boards and ensures stable and accurate signal transmission.

The SHC68-68-EPM cable has a 68-pin 0.050 Series D connector at one end and a 68-pin VHDCI connector at the other end, allowing users to connect M-series devices to standard 68-pin accessories. Note that for M-series devices with 2 connectors, two cables may be required to access all pins.

In addition, the length of SHC68-68-EPM cable has a variety of options, including 0.5 meters, 1 meters, 2 meters, 5 meters and 10 meters, users can choose the appropriate length according to the actual needs. At the same time, the cable also complies with the RoHS directive, ensuring the environmental performance of the product.

In terms of performance, the SHC68-68-EPM cable has undergone strict quality testing and verification to ensure its stability and reliability. Most equipment is quality checked and verified prior to shipment to ensure optimal performance. At the same time, if necessary, users can also apply for a national metrology certificate.

Overall, the SHC68-68-EPM is a versatile cable with excellent performance and unique design for a variety of applications requiring accurate data acquisition and transmission.
