描述

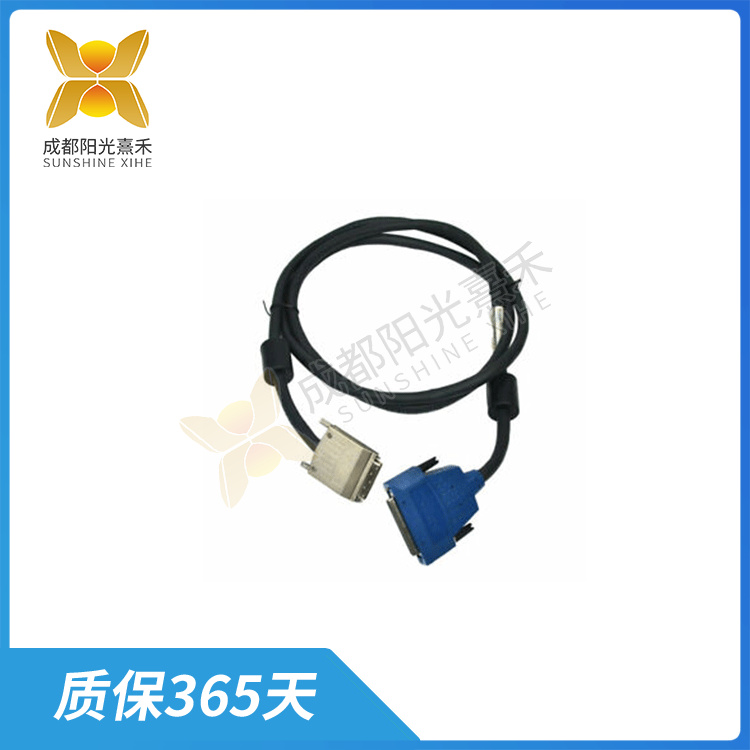

SHC68-68-EPM 電纜產品

SHC68-68-EPM是National Instruments（NI）公司的一款電纜產品，專為連接NI的X系列和M系列數據采集（DAQ）設備而設計。該電纜具備以下主要特點和功能：

1. 獨立的數字和模擬部分：SHC68-68-EPM電纜包含獨立的數字和模擬部分，這有助于減少信號干擾，提高數據傳輸?shù)臏?zhǔn)確性和穩定性。
2. 屏蔽設計：電纜中的模擬輸入部分采用了單獨屏蔽的雙絞線，模擬輸出部分也進行了單獨屏蔽，這有助于降低高速板卡的串?dāng)_（crosstalk），進一步提升了信號質量。
3. 68針連接器：該電纜具有68針0.050系列D型連接器至68針VHDCI連接器的設計，這使得用戶能夠方便地將M系列設備連接到標準68針的附件。
4. 兼容性和應用范圍：SHC68-68-EPM電纜兼容RoHS指令，并且適用于多種應用場景，包括將DAQ設備連接到采用D-SUB連接器的配件或電纜。
5. 多種長度選擇：為了滿足不同用戶的需求，該電纜提供了多種長度選擇，包括0.5米、1米、2米、5米和10米等。

總的來說，SHC68-68-EPM電纜是NI數據采集系統中不可或缺的一部分，它憑借其優異的設計和性能，為用戶提供了穩定、可靠的數據傳輸解決方案。

SHC68-68-EPM 電纜產品

The SHC68-68-EPM is a cable product from National Instruments (NI) designed to connect NI’s X Series and M Series Data acquisition (DAQ) devices. The cable has the following main features and functions:

Separate digital and analog sections: The SHC68-68-EPM cable contains separate digital and analog sections, which help reduce signal interference and improve the accuracy and stability of data transmission.

Shielding design: The analog input part of the cable uses a separately shielded twisted pair, and the analog output part is also separately shielded, which helps to reduce the crosstalk of the high-speed board and further improve the signal quality.

68-pin connector: The cable features a 68-pin 0.050 series D connector to 68-pin VHDCI connector design, which allows users to easily connect M-series devices to standard 68-pin accessories.

Compatibility and Application range: SHC68-68-EPM cables are compatible with RoHS directives and are suitable for a variety of application scenarios, including connecting DAQ devices to accessories or cables with D-SUB connectors.

Multiple length options: In order to meet the needs of different users, the cable is available in a variety of length options, including 0.5 m, 1 m, 2 m, 5 m and 10 m.

In general, SHC68-68-EPM cable is an integral part of NI data acquisition system, which provides users with a stable and reliable data transmission solution with its excellent design and performance.
