描述

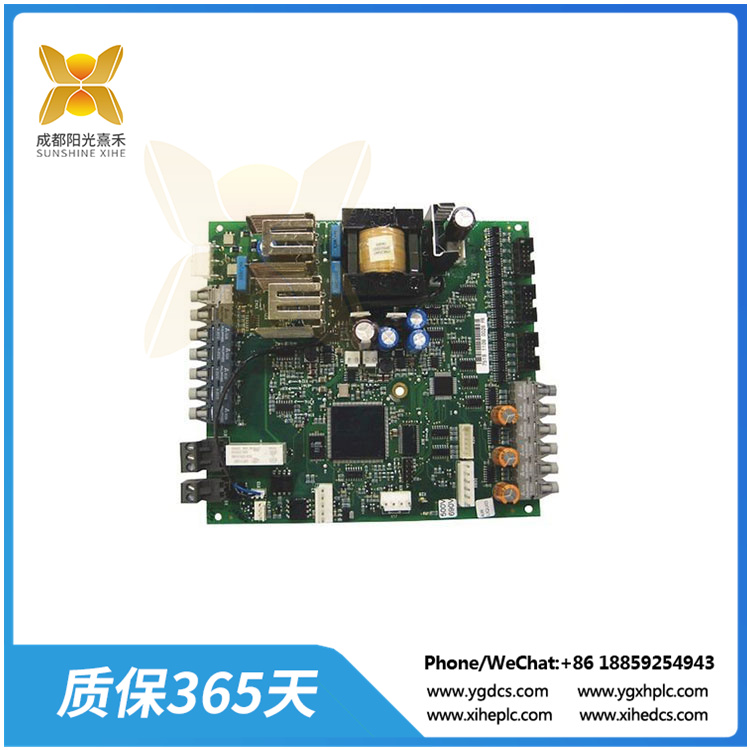

SK-H1-ASICBD-D1030 PowerFlex 700 ASIC單板

品牌:Allen-Bradley /羅克韋爾自動化
系列:PowerFlex 700
部件號:SK-H1-ASICBD-D1030
描述:asic板
兼容設備:powerflex 700交流驅動器
電壓:400/408伏交流

SK-H1-ASICBD-D1030板是Allen-Bradley公司生產的1030安培級ASIC板。該電路板允許在應用中實現數字信號處理算法，以最大限度地減少功耗，并減少不同應用的硬件尺寸。它的額定電壓為400/480伏交流。該ASIC板兼容PowerFlex 700 H和PowerFlex 700 S系列。該電路板在單個集成電路中包含不同的電子元件。該板是高容量工作的不同應用的經濟高效的解決方案。電路板上裝有電阻器、電容器、電感、二極管、晶體管和其他元件。它運行得很快。SK-H1-ASICBD-D1030板用于調節三相異步電動機和驅動器的轉矩和速度。主機PowerFlex驅動器配備了先進的電機控制算法，提供一流的電機控制。這些交流驅動器具有飛行啟動，過程PI控制和慣性穿越功能。

PowerFlex 700 SK-H1-ASICBD-D1030 ASIC板采用開放式外殼設計，用于其主機驅動器的驅動柜內。ASIC板帶有一個60毫米大小的內部風扇，用于內部冷卻。SK-H1-ASICBD-D1030 ASIC板通過不同尺寸的電纜連接風扇逆變器和其他組件。該電路板有一個金屬板蓋和安裝螺釘，位于電源結構上，可以用潛在的高電壓通電。它所使用的光纖連接到標識為H1 ~ H7的插座中。電纜的最小內彎半徑為25.4毫米。安裝過程中應妥善處理電纜。環境溫度應在0至60攝氏度之間，以確保驅動器和電路板的正常運行。

SK-H1-ASICBD-D1030 PowerFlex 700 ASIC單板

Brand ：Allen-Bradley / Rockwell Automation
Series ：PowerFlex 700
Part Number :SK-H1-ASICBD-D1030
Description: ASIC Board
Compatible Devices: PowerFlex 700 AC Drives
Voltage :400/408 Volts AC

The SK-H1-ASICBD-D1030 board is an 1030 Amps-rated ASIC board manufactured by Allen-Bradley. The board allows for the implementation of digital signal processing algorithms in applications to minimize power consumption and reduce the hardware size for different applications. It has a voltage rating of 400/480 Volts AC. This ASIC board is compatible with both the PowerFlex 700 H and the PowerFlex 700 S series. The board has different electronics components contained on a single integrated circuit. The board is a cost-effective solution for different applications working at high volume. The board houses resistors, capacitors, inductors, diodes, transistors, and other components. It is fast in operation. The SK-H1-ASICBD-D1030 board is used for regulating the torque and speed of 3-phase induction motors and drives. The host PowerFlex drives come with an advanced motor control algorithm that offers best-in-class motor control. These AC drives feature the flying start, process PI control, and inertia ride thru functions.

The PowerFlex 700 SK-H1-ASICBD-D1030 ASIC board is designed with an open enclosure and it is used inside the drive cabinet of its host drive. The ASIC board comes with an internal fan that is 60 millimeters in size and that is used for internal cooling. The SK-H1-ASICBD-D1030 ASIC board is connected with fan inverters, and other components by using different-sized cables. The board has a sheet metal cover and mounting screws located on the power structure and it can be energized with potentially high voltage. The fiber-optic cables that it uses are connected into the sockets labeled from H1 to H7. The minimum inside bend radius for the cables is 25.4 millimeters. The cables should be handled properly during the installation process. The environmental temperature should be between 0 and 60 degrees Celsius for proper drive and board operation.
