描述

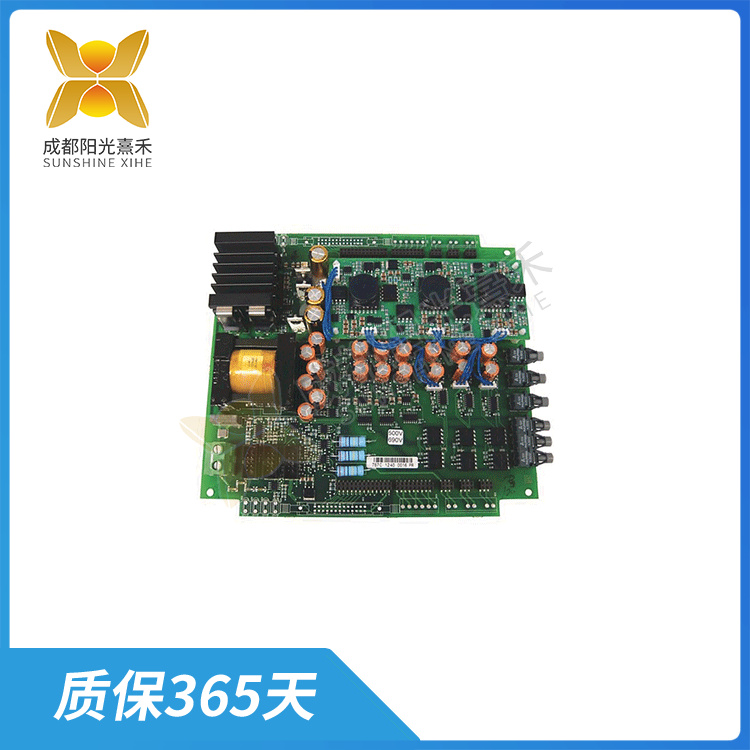

SK-H1-GDB1-F10E Allen-Bradley 柵極驅動器

SK-H1-GDB1-F10E是一款柵極驅動器，主要被用于增強場效應晶體管（MOSFET）或絕緣柵雙極晶體管（IGBT）的柵極信號，以便控制器能夠更好地控制這些半導體開關的操作。

SK-H1-GDB1-F10E的工作原理主要包含三個部分：輸入級、驅動級和輸出級。輸入級負責接受控制器輸出的信號，驅動級則負責對這些信號進行放大和轉換，最后，輸出級使用這些經過放大和轉換的信號來控制MOSFET或IGBT的柵極。

SK-H1-GDB1-F10E的主要作用是提高M(jìn)OSFET或IGBT的性能和可靠性，以及擴展它們的使用壽命。同時，它也提供了一種簡單、安全、可靠的方法來控制這些半導體器件，從而降低了系統的成本和復雜性。

SK-H1-GDB1-F10E不僅適用于MOSFET和IGBT，也適用于寬禁帶中目前較少人知道的新型器件，如碳化硅（SiC）FET和氮化鎵（GaN）FET。

總的來說，SK-H1-GDB1-F10E是一種非常重要的半導體器件，對于提高半導體開關的性能和可靠性，以及降低系統的成本和復雜性具有重要的作用。

SK-H1-GDB1-F10E Allen-Bradley 柵極驅動器

SK-H1-GDB1-F10E is a gate driver that is primarily used to enhance the gate signal of field-effect transistors (MOSFET) or insulated-gate bipolar transistors (IGBTs) so that controllers can better control the operation of these semiconductor switches.

The working principle of SK-H1-GDB1-F10E mainly includes three parts: input stage, drive stage and output stage. The input stage is responsible for receiving the signals output by the controller, the driver stage is responsible for amplifying and converting these signals, and finally, the output stage uses these amplified and converted signals to control the gate of the MOSFET or IGBT.

The main role of SK-H1-GDB1-F10E is to improve the performance and reliability of MOSFET or IGBT, as well as extend their service life. It also provides a simple, safe, and reliable way to control these semiconductor devices, reducing the cost and complexity of the system.

SK-H1-GDB1-F10E is not only suitable for MOSFETs and IGBTs, but also for new devices that are currently less known in wide band gap, such as silicon carbide (SiC) FETs and gallium nitride (GaN) FETs.

In general, SK-H1-GDB1-F10E is a very important semiconductor device, which plays an important role in improving the performance and reliability of semiconductor switches, as well as reducing the cost and complexity of the system.
