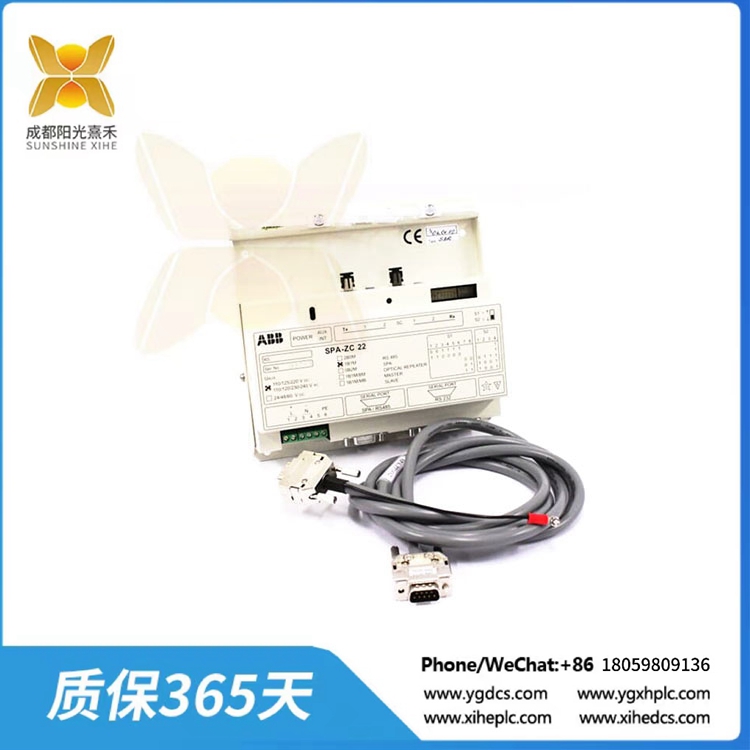

SPA-ZC22 線連接模塊

主要優勢
易于安裝
將變電站二次設備連接到光纖 SPA 總線



分類: ,

描述

總線連接模塊用作 SPACOM 設備和光纖 SPA 總線之間的連接裝置

SPA-ZC 22 總線連接模塊將 SPA 總線的光信號轉換為 RS 485、SPA(+5 V)或 RS 232 信號,反之亦然??偩€連接模塊內置電源模塊。在進行檢修時,該內置電源模塊可將SPACOM 設備從總線連接模塊上斷開,而不需要中斷通過光纖回路進行的數據通信。

SPA-ZC 22 配有一個用于 RS 485 或 SPA 連接的 9 針 D 型微型連接器,一個可供訂購的 25 針 D 型連接器,兩個或五個用于光纜的光纖連接器組。光纖鏈路可以是玻璃纖維電纜、塑料芯電纜或兩者混用。

總線連接模塊安裝在設備柜中的適當位置,模塊的連接電纜連接到 SPACOM 設備后面板上的 D 型連接器。SPA-ZC 22 型總線連接模塊可連接到任何配備 D 型連接器的SPACOM 設備??偩€連接模塊還可以連接到通信系統的主單元,如變電站級單元 SACO 148D4 和 SRIO 1000M。

范圍
總線連接模塊 SPAZC22 將 SPA 總線的光信號轉換為 RS 485、SPA(+5 V)或 RS 232 信號

主要優勢
易于安裝
將變電站二次設備連接到光纖 SPA 總線

主要特性
高度抗電氣和電磁干擾
SPA 總線的電光轉換器

SPA-ZC22

SPA-ZC22 線連接模塊

The bus connection module serves as the connection device between the SPACOM device and the fiber optic SPA bus

The SPA-ZC 22 bus connection module converts optical signals from the SPA bus to RS 485, SPA (+5 V) or RS 232 signals and vice versa. Bus connection module Built-in power module. The built-in power module disconnects SPACOM devices from the bus connection module during an overhaul without interrupting data communication through the fiber optic loop.

The SPA-ZC 22 comes with a 9-pin Type D miniature connector for RS 485 or SPA connections, a 25-pin type D connector available for order, and two or five fiber optic connector sets for optical cables. Fiber optic links can be glass fiber cables, plastic core cables, or a combination of both.

The bus connection module is installed in the appropriate position in the device cabinet, and the module’s connection cable connects to the D-connector on the rear panel of the SPACOM device. The SPA-ZC Type 22 bus connection module can be connected to any SPACOM device equipped with a Type D connector. The bus connection module can also be connected to the main units of the communication system, such as the substance-level units SACO 148D4 and SRIO 1000M.

Radius
The bus connection module SPAZC22 converts the optical signal of the SPA bus to RS 485, SPA (+5 V) or RS 232 signals

Major advantage
Easy to install
Connect the substation secondary equipment to the fiber SPA bus

Main characteristics
Highly resistant to electrical and electromagnetic interference
Electro-optical converter for SPA bus
