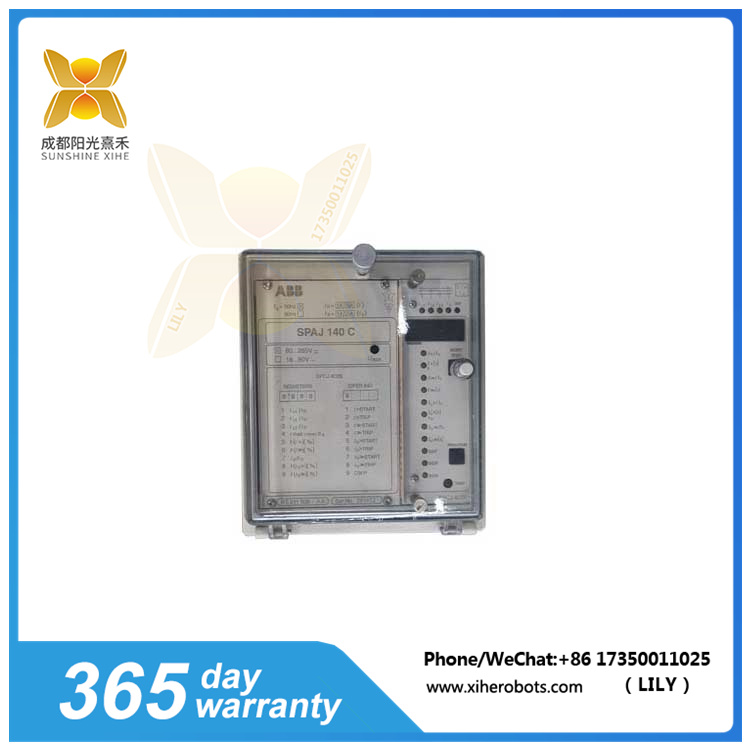

SPAJ140C ABB 組合式過電流和接地故障繼電器 成都陽光熹禾

SPAJ140C ABB 組合式過電流和接地故障繼電器 成都陽光熹禾

  1. 高度集成：集成了過流保護和接地故障保護功能，減少了設備數量和占地面積。
  2. 靈活配置：可根據應用需求進行靈活配置，滿足不同場合的保護要求。
  3. 高可靠性：采用先進的微處理器技術和強大的軟件支持，確保繼電器的高可靠性和穩定性。
  4. 易于維護：通過本地顯示屏和前面板按鈕或上級系統的串行接口和光纖總線讀寫設定值，方便用戶進行參數設置和故障診斷。
分類：

描述

產品細節說明：SPAJ140C ABB 組合式過電流和接地故障繼電器

SPAJ140C是ABB公司生產的一款功能強大、高度集成、靈活配置的組合式過電流和接地故障繼電器。它廣泛應用于電力系統中的短路和接地故障保護，具有高度的可靠性和穩定性。對于需要高效、可靠的電力保護解決方案的用戶來說，SPAJ140C無疑是一個理想的選擇。

  1. 過流保護功能：
    • 三相低設置相位過流裝置，具有定時或反定最小時間(IDMT)特性。
    • 三相高整定相位過流裝置，具有瞬時或定時特性。
    • 檢測到故障時，會根據應用要求和繼電器配置啟動、跳閘斷路器、提供報警信號、記錄故障數據等。
  2. 接地故障保護功能：
    • 低電平接地故障裝置，具有定時或反定最小時間(IDMT)特性。
    • 高電平接地故障單元，具有瞬時或確定時間操作功能。
    • 當接地故障電流超過設定值時，會啟動并發出啟動信號，進行接地故障保護。
  3. 其他功能：
    • 內置斷路器故障保護。
    • 兩個重載繼電器和四個信號輸出繼電器，輸出繼電器矩陣可將保護級的啟動或跳閘信號路由至所需的輸出繼電器。
    • 本地顯示測量值、設定值和故障時記錄的數據。
    • 自我監控系統可持續監控電子設備和微處理器的運行情況。

SPAJ140C

產品詳情參數 ：SPAJ140C ABB 組合式過電流和接地故障繼電器

  1. 高度集成：集成了過流保護和接地故障保護功能，減少了設備數量和占地面積。
  2. 靈活配置：可根據應用需求進行靈活配置，滿足不同場合的保護要求。
  3. 高可靠性：采用先進的微處理器技術和強大的軟件支持，確保繼電器的高可靠性和穩定性。
  4. 易于維護：通過本地顯示屏和前面板按鈕或上級系統的串行接口和光纖總線讀寫設定值，方便用戶進行參數設置和故障診斷。

SPAJ140C ABB? 備應用領域：

SPAJ140C組合式過電流和接地故障繼電器廣泛應用于固體接地、電阻接地或阻抗接地電力系統中的徑向饋線進行選擇性短路和接地故障保護。同時，它還可用于需要單相、兩相或三相過流保護的其他應用場合。

Product details: SPAJ140C ABB combination overcurrent and ground fault relay

SPAJ140C is a powerful, highly integrated, and flexible combination overcurrent and ground fault relay produced by ABB. It is widely used for short-circuit and ground fault protection in power systems, with high reliability and stability. For users who need efficient and reliable power protection solutions, SPAJ140C is undoubtedly an ideal choice.

Overcurrent protection function:
A three-phase low setting phase overcurrent device with timed or inverse minimum time (IDMT) characteristics.
A three-phase high setting phase overcurrent device with instantaneous or timed characteristics.
When a fault is detected, it will start, trip the circuit breaker, provide alarm signals, and record fault data according to application requirements and relay configuration.
Ground fault protection function:
Low level grounding fault device with timed or inverse minimum time (IDMT) characteristics.
High level grounding fault unit with instantaneous or definite time operation function.
When the ground fault current exceeds the set value, it will start and send a start signal for ground fault protection.
Other features:
Built in circuit breaker fault protection.
Two overload relays and four signal output relays, the output relay matrix can route the start or trip signals of the protection level to the required output relays.
Local display of measured values, set values, and data recorded during faults.
The self-monitoring system can continuously monitor the operation of electronic devices and microprocessors.
Product details and parameters: SPAJ140C ABB combination overcurrent and ground fault relay
Highly integrated: It integrates overcurrent protection and ground fault protection functions, reducing the number of devices and footprint.
Flexible configuration: It can be flexibly configured according to application requirements to meet protection requirements in different situations.
High reliability: Adopting advanced microprocessor technology and powerful software support, ensuring the high reliability and stability of relays.
Easy to maintain: By using the local display screen and front panel buttons or the serial interface of the superior system and fiber optic bus to read and write set values, it is convenient for users to set parameters and diagnose faults.

SPAJ140C ABB backup application areas:

The SPAJ140C combined overcurrent and ground fault relay is widely used for selective short-circuit and ground fault protection of radial feeders in solid grounded, resistance grounded, or impedance grounded power systems. Meanwhile, it can also be used in other applications that require single-phase, two-phase, or three-phase overcurrent protection.
