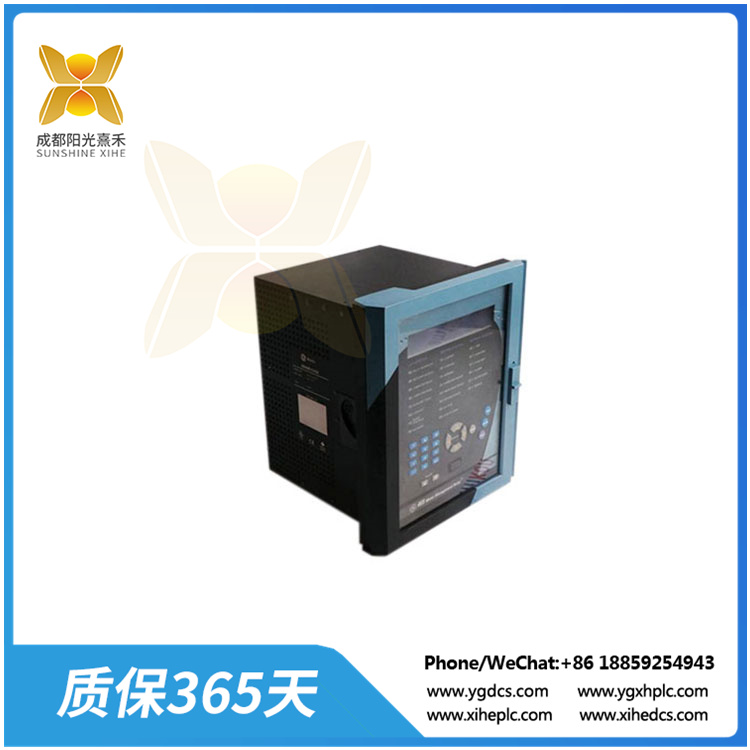

SR489-CASE? ? Multilin 489系列中發電機管理繼電器
SR489-CASE是GE Multilin 489系列中發電機管理繼電器的配套案例。這種情況下有一個完整的引出(自動CT短路)，密封裝置和防塵門。本案例的IP等級為IP10A。該裝置可以安裝在19英寸的機架上，也可以安裝在面板上。必須做好準備，使前門在不受相鄰設備干擾的情況下自動打開。在前面施加堅定的壓力，以確保前擋板緊貼在面板的前面，從機箱的每一邊彎曲一對保留標簽(到水平位置)。一旦案件是與繼電器安裝，它是準備面板布線。
關于SR489-CASE的常見問題
這個489箱子可以放在多大的架子上?
這489的情況下或毗鄰另一個單位的SR系列，可以安裝在一個19英寸面板機架，這是標準尺寸。
這個箱子怎么裝不進去?
如果一個不匹配的情況下，試圖安裝機械鑰匙將不會讓單位得到完全插入到單位。不要強行打開，否則可能會損壞機械鑰匙。
我如何將設備從機箱中取出?
首先，拉動右上角或右下角打開蓋子，鉸鏈在左邊。然后位于手柄下方，釋放鎖定手柄，用螺絲刀向上按壓。抓住把手，向上推，直到它停止向上移動。最后將設備從外殼中拔出，它應該可以自由地滑出。
SR489-CASE? ? Multilin 489系列中發電機管理繼電器
SR489-CASE is a a companion case for the generator management relay in the GE Multilin 489 series. This case has a full drawout (automatic CT shorts), a seal provision, and a dust tight door. The IP class for this case is IP10A. This unit may be mounted on a 19 inch rack mount or on a panel. Provision must be made for the front door to swing open without interference to, or from, adjacent equipment. Applying firm pressure on the front to ensure the front bezel fits snugly against the front of the panel, bend out the pair of retaining tabs (to a horizontal position) from each side of the case. Once the case is mounted with the relay, it is ready for panel wiring.
Frequently Asked Questions about SR489-CASE
What size rack can this 489 case fit into?
This 489case or adjoining to another unit of the SR series, can be installed in a 19inch panel rack, which is the standard size.
How come the case doesnt fit in the unit?
If a non-matching case is attempted to install the mechanical key will not let the unit get fully inserted into the unit. Dont force the unit or you may result in destroying the mechanical key.
How do I remove the unit from it case?
First, pull either the upper or lower corner of the right side to open the cover, the hinges are on the left. Then located below the handle, release the locking handle, by pressing up with a screwdriver. Grab the handle and push it up until it stops moving upward. Lastly pull the unit out of the caseing, it should slide out freely.
