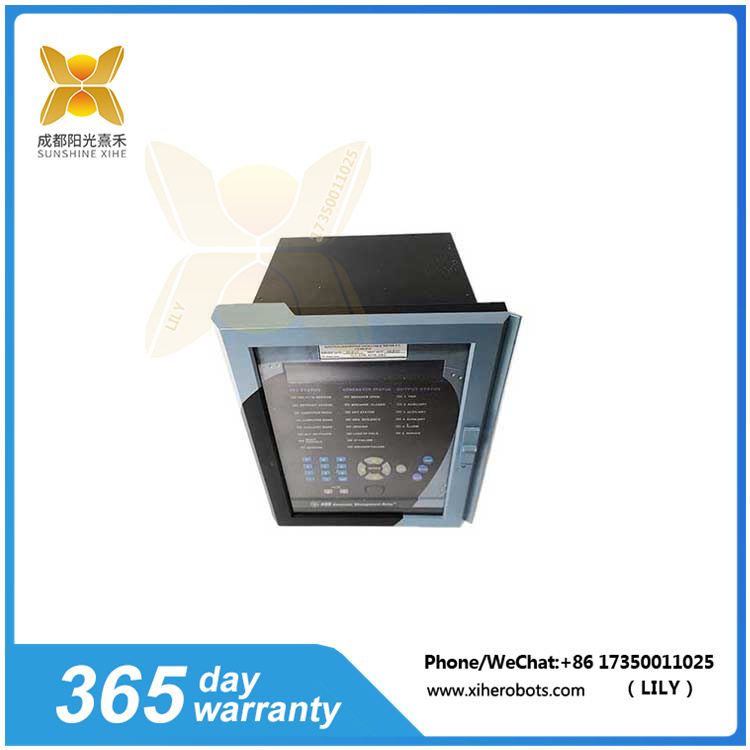

SR489-P5-HI-A20 GE 發電機管理繼電器 成都陽光熹禾

SR489-P5-HI-A20 GE 發電機管理繼電器 成都陽光熹禾

  • 型號：SR489-P5-HI-A20
  • 類別：發電機管理繼電器
  • 制造商：GE Multilin
  • 系列：489發電機管理系列

描述

產品細節說明：SR489-P5-HI-A20 GE 發電機管理繼電器

  1. 保護功能：
    • 該繼電器能夠監測發電機的各種運行參數，如電壓、電流、頻率和功率等。
    • 當這些參數超出安全范圍時，繼電器會觸發相應的保護動作，如斷開電源或啟動報警，以防止發電機受到損壞。
  2. 控制功能：
    • 除了保護功能外，SR489-P5-HI-A20還可以用于控制發電機的啟動、停止和切換等操作。
    • 它可以根據預設的邏輯或外部信號來控制發電機的運行狀態，確保電力系統的穩定運行。
  3. 可編程性：
    • 該繼電器具有可編程功能，用戶可以根據具體的應用需求來設置繼電器的參數和邏輯。
    • 這使得繼電器能夠適應不同的發電機系統和運行環境。
  4. 通信功能：
    • SR489-P5-HI-A20支持多種通信協議和接口，如Modbus、Profibus等，方便與其他設備或系統進行數據交換和遠程監控。
  5. 高可靠性：
    • 作為GE公司的產品，SR489-P5-HI-A20經過嚴格的質量控制和測試，確保在惡劣的工業環境中也能穩定運行。

產品詳情參數 ：SR489-P5-HI-A20 GE 發電機管理繼電器

  • IRIG-B調幅：2.5至6.0 Vpk-pk，信號比為3:1
  • 低正向功率延時：0.2至120.0秒，步長為0.1
  • 相位過流電壓抑制：可編程固定特性
  • 脈沖輸出脈沖寬度：200至1000 ms，步長為1
  • 轉速表可配置：可分配給數字輸入4至7
  • 控制功率：90-300 VDC和70-265 VAC (48-62 Hz)
  • 模擬輸出：4至20 mA

SR489-P5-HI-A20 GE 應用領域：

SR489-P5-HI-A20廣泛應用于各種需要發電機保護和控制的場合，包括但不限于：

  • 電力發電廠：用于監測發電機的運行狀態，保護發電機免受過電流、過電壓、失電等故障的影響。
  • 工業發電：在工廠或工業設備中，確保電力供應的穩定性和可靠性。
  • 船舶和海洋工程：監測船舶或海上平臺上的發電機系統，確保電力系統的安全和可靠性。
  • 電力配電系統：確保發電機向電網提供電力時的穩定運行，并在出現故障時進行及時保護。
  • 建筑和商業領域：作為備用電源系統的一部分，確保在主電源故障時可靠地供電。
  • 礦業和油氣行業：保護發電機系統，確保設備和工藝的連續運行。
  • 醫療設施：在電力中斷時，為醫療設備提供備用電源。

Product Details: SR489-P5-HI-A20 GE Generator Management Relay
Protection function:
This relay can monitor various operating parameters of the generator, such as voltage, current, frequency, and power.
When these parameters exceed the safe range, the relay will trigger corresponding protective actions, such as disconnecting the power supply or starting an alarm, to prevent damage to the generator.
Control function:
In addition to its protective function, SR489-P5-HI-A20 can also be used to control the starting, stopping, and switching operations of the generator.
It can control the operation status of the generator based on preset logic or external signals, ensuring the stable operation of the power system.
Programmability:
This relay has programmable functions, and users can set the parameters and logic of the relay according to specific application requirements.
This enables the relay to adapt to different generator systems and operating environments.
Communication function:
SR489-P5-HI-A20 supports multiple communication protocols and interfaces, such as Modbus, Profibus, etc., facilitating data exchange and remote monitoring with other devices or systems.
High reliability:
As a product of GE, SR489-P5-HI-A20 undergoes strict quality control and testing to ensure stable operation even in harsh industrial environments.
Product details and parameters: SR489-P5-HI-A20 GE generator management relay
IRIG-B amplitude modulation: 2.5 to 6.0 Vpk pk, signal ratio of 3:1
Low forward power delay: 0.2 to 120.0 seconds, with a step size of 0.1
Phase overcurrent voltage suppression: programmable fixed characteristic
Pulse output pulse width: 200 to 1000 ms, with a step size of 1
Tachometer configurable: can be assigned to digital inputs 4 to 7
Control power: 90-300 VDC and 70-265 VAC (48-62 Hz)
Analog output: 4 to 20 mA

SR489-P5-HI-A20 GE application areas:

SR489-P5-HI-A20 is widely used in various situations that require generator protection and control, including but not limited to:

Power plant: used to monitor the operating status of generators and protect them from the effects of faults such as overcurrent, overvoltage, and power loss.
Industrial power generation: Ensuring the stability and reliability of power supply in factories or industrial equipment.
Ship and Ocean Engineering: Monitor the generator system on ships or offshore platforms to ensure the safety and reliability of the power system.
Power distribution system: Ensure stable operation of generators when providing power to the grid, and provide timely protection in case of faults.
In the fields of architecture and commerce: as part of the backup power system, ensure reliable power supply in the event of a main power failure.
Mining and oil and gas industries: protect generator systems to ensure continuous operation of equipment and processes.
Medical facilities: Provide backup power for medical equipment in the event of a power outage.
