描述

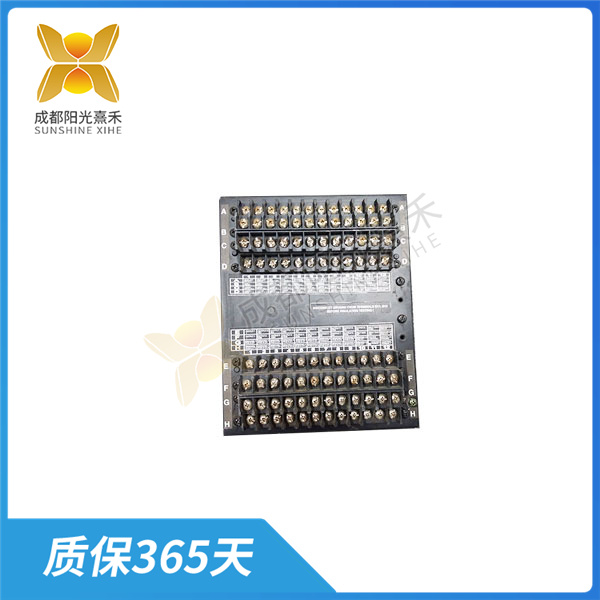

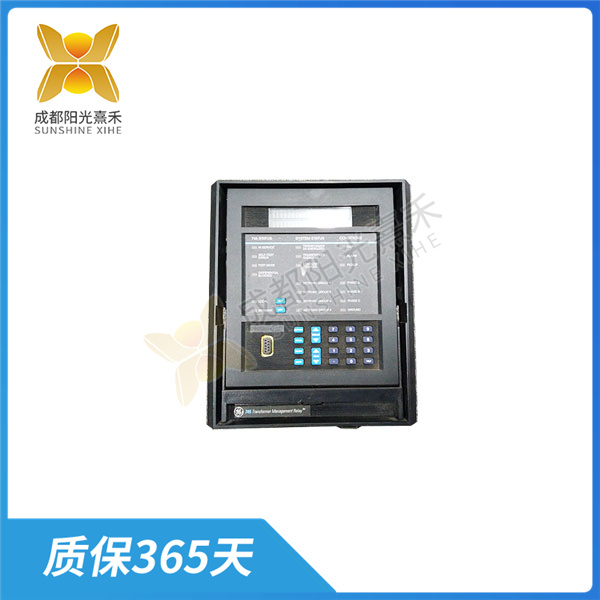

SR745-W2-P5-G5-HI-A 變壓器保護繼電器可以延時切斷故障部分

變壓器保護繼電器是一種用于保護變壓器的裝置，SR745-W2-P5-G5-HI-A通常安裝在變壓器的進線端。當變壓器內部發生短路等故障時，變壓器保護繼電器會迅速切斷故障部分，以保護變壓器和其他電力設備免受損壞。

變壓器保護繼電器通常由電流繼電器、電壓繼電器和差動繼電器等組成。這些繼電器分別檢測變壓器的電流、電壓和差動電流等參數，并將它們轉換成可處理的電信號。當這些信號超過預設值時，繼電器會輸出相應的控制信號，控制斷路器等設備切斷故障部分。

SR745-W2-P5-G5-HI-A變壓器保護繼電器的主要功能包括：

短路保護：當變壓器內部發生短路故障時，變壓器保護繼電器會迅速切斷故障部分，防止變壓器和其他電力設備受到損壞。

過載保護：當變壓器負載過大時，變壓器保護繼電器可以延時切斷故障部分，防止變壓器過載運行。

零序保護：當變壓器三相不平衡運行時，變壓器保護繼電器可以檢測零序電流，防止變壓器受到損壞。

溫度保護：當變壓器溫度過高時，變壓器保護繼電器可以檢測溫度信號，控制冷卻系統等設備降低變壓器溫度。

總之，變壓器保護繼電器是一種重要的保護裝置，SR745-W2-P5-G5-HI-A可以有效地保護變壓器的安全運行。在電力系統和工業自動化領域中，變壓器保護繼電器得到了廣泛的應用。

SR745-W2-P5-G5-HI-A 變壓器保護繼電器可以延時切斷故障部分

A transformer protection relay is a device used to protect a transformer, and the SR745-W2-P5-G5-HI-A is usually installed at the incoming end of the transformer. When a fault such as a short circuit occurs inside the transformer, the transformer protection relay will quickly cut off the fault part to protect the transformer and other power equipment from damage.

Transformer protection relays are usually composed of current relays, voltage relays and differential relays. These relays separately detect the transformer’s current, voltage, and differential current parameters and convert them into processable electrical signals. When these signals exceed the preset value, the relay will output the corresponding control signal to control the circuit breaker and other devices to cut off the fault part.

The main functions of SR745-W2-P5-G5-HI-A transformer protection relay include:

Short circuit protection: When a short circuit fault occurs inside the transformer, the transformer protection relay will quickly cut off the fault part to prevent the transformer and other power equipment from being damaged.

Overload protection: When the transformer load is too large, the transformer protection relay can delay to cut off the fault part to prevent the overload operation of the transformer.

Zero sequence protection: When the transformer three-phase unbalanced operation, the transformer protection relay can detect zero sequence current to prevent the transformer from being damaged.

Temperature protection: When the transformer temperature is too high, the transformer protection relay can detect the temperature signal and control the cooling system and other equipment to reduce the transformer temperature.

In short, the transformer protection relay is an important protection device, SR745-W2-P5-G5-HI-A can effectively protect the safe operation of the transformer. Transformer protection relays have been widely used in power system and industrial automation.
