描述

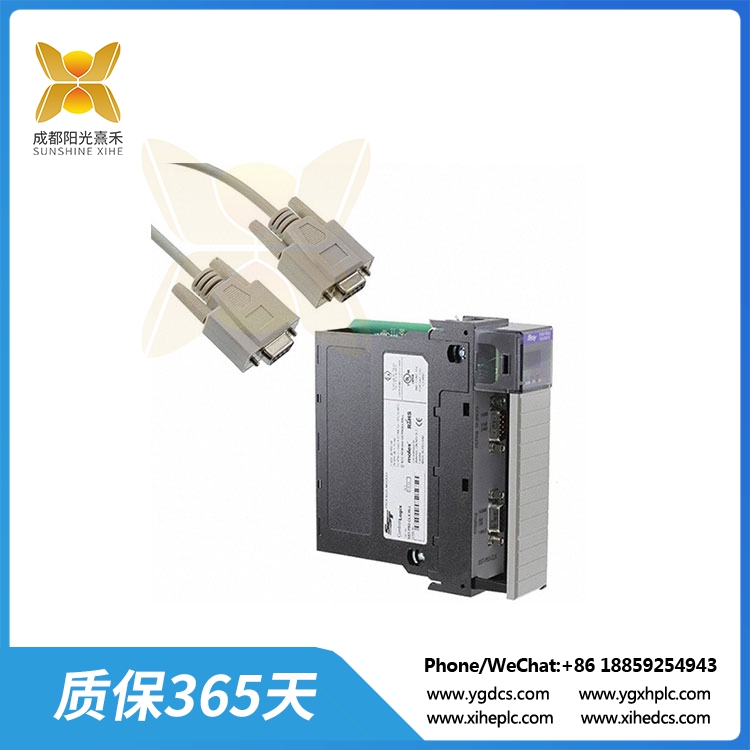

SST-SR4-CLX-RLL ControlLogix 系統連接至串行網絡

用于 Rockwell ControlLogix 系統的 SST? 通信模塊是包括工廠自動化、過程控制和復雜機器在內的各種應用的最佳選擇。
每個 SR4 模塊均具備 4x 路串行通信通道，可與 Modbus 主站或從站等工業設備獨立和彼此電絕緣地進行大量的數據交換。
使用經由 EtherNet/IP 或 RSLinx 遠程連接的控制板軟件，可節省配置和診斷時間。 每個模塊與其定制的 Add-On-Profile (AOP) 一起交付，易于集成在 RSLogix 5000 軟件中。 該模塊與ControlLogix CPU（處理器）間的輸入/輸出數據傳輸支持 2 種模式：“直接模式”，無需寫入任何梯形邏輯，可共享達 248 輸入字 + 248 輸出字，或“分頁模式”，可共享達 32,000 輸入/輸出字。
CLXT 模塊可承受高溫，并能在嚴苛、腐蝕性的環境中工作，滿足客戶的各種應用要求。

特性和優點
完成集成到 Rockwell IntegratedArchitecture Builder? 和 ProsposalWorks?
與競爭對手相比，單個模塊支持更多的通信通道和協議
直接輸入/輸出映射；無需寫入梯形邏輯
輸入/輸出數據刷新每個 PLC 周期，每個通道多達 255 次讀/寫循環訪問
新的用戶友好配置工具帶有可視化循環功能屏幕
軟件包配有先進的可視化診斷工具
使用單一模塊即可與 Rockwell CPU 共享32000 字的輸入/輸出處理數據
獨立的電絕緣串行通道
支持可變的輸入/輸出和狀態數據大小
每個端口均可設置作為 Modbus 主站或從站CLXT 模塊采用更寬的溫度范圍和保形涂層，重型組件

SST-SR4-CLX-RLL ControlLogix 系統連接至串行網絡

The SST? communication module for Rockwell ControlLogix systems is the perfect choice for a variety of applications including factory automation, process control and complex machines.
Each SR4 module has 4x serial communication channels that allow for extensive data exchange with industrial equipment, such as Modbus master or slave stations, independently and electrically insulated from each other.
Save configuration and diagnostic time by using control board software that connects remotely via EtherNet/IP or RSLinx. Each module is delivered with its custom Add-On Profile (AOP) for easy integration in the RSLogix 5000 software. Input/output data transfer between this module and the ControlLogix CPU (processor) supports two modes: “Direct mode”, which does not require writing any ladder logic and can share up to 248 input words + 248 output words, or “paging mode”, which can share up to 32,000 input/output words.
CLXT modules can withstand high temperatures and operate in harsh, corrosive environments to meet customer application requirements.

Features and benefits
Complete integration into Rockwell IntegratedArchitecture Builder? and ProsposalWorks?
A single module supports more communication channels and protocols than its competitors
Direct input/output mapping; No need to write ladder logic
Input/output data is refreshed per PLC cycle with up to 255 read/write cycle accesses per channel
New user-friendly configuration tool with visual loop feature screen
The software package comes with advanced visual diagnostic tools
32,000 words of input/output processing data can be shared with the Rockwell CPU using a single module
Separate electrically insulated serial channel
Supports variable input/output and status data size
Each port can be set up as a Modbus master or slave CLXT module with a wider temperature range and conformal coating for heavy-duty components
