描述

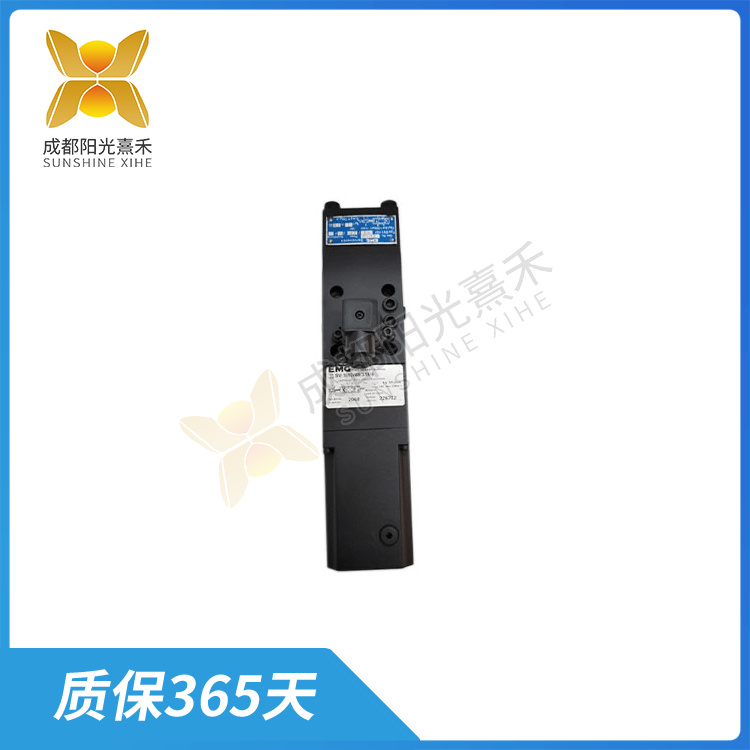

SV1-10483156 伺服閥 主要接受模擬電信號

SV1-10483156是電液伺服系統中的重要組成部分。這種閥門主要接受模擬電信號，并相應地輸出調制的流量和壓力。伺服閥具有動態響應快、控制精度高、使用壽命長等優點，因此在航空、航天、艦船、冶金、化工等領域的電液伺服控制系統中得到了廣泛應用。

SV1-10483156是一個功率放大器，同時也是電氣與液壓的轉換器。電氣輸入功率通常約為0.1W，經過先導級放大后，液壓輸出功率可以達到約10W，再經過主閥芯轉換后，液壓輸出功率可以達到10kW。因此，閥的功率放大因子可以達到105。對于一個三級閥，小閥芯驅動大閥芯，并帶有電氣位置反饋，可以進一步帶來另外100倍的功率放大。

SV1-10483156的工作原理是，主閥芯的位置與電信號成比例，而閥芯的運動是由內部液動力驅動的。閥芯的運動改變節流口的大小，從而控制流量。然而，流量取決于節流口壓差，除非使用了壓力補償器。最常見的伺服閥設計是帶機械反饋的兩級噴嘴擋板伺服閥。

SV1-10483156的主要元件包括擋板，它由力矩馬達驅動，并可以限制通過噴嘴的流量。擋板的行程約為0.1mm。此外，伺服閥也可以用于構建液壓伺服控制系統，該系統具有控制精度高、響應速度快、易于實現自動化等特點。

在工業應用中，SV1-10483156被廣泛用于各種需要高精度、高速度、高可靠性的控制系統，如機器人、數控機床、冶金設備、化工設備等。同時，隨著技術的不斷發展，伺服閥也在不斷升級和改進，以適應更加復雜和嚴苛的工業環境。

需要注意的是，伺服閥的故障現象通常與系統其他故障現象復合，使問題較為復雜。因此，在伺服閥的使用和維護過程中，需要具備一定的專業知識和經驗，以確保系統的正常運行和穩定性。

SV1-10483156 伺服閥 主要接受模擬電信號

SV1-10483156 is an important part of electro-hydraulic servo system. This valve mainly accepts analog electrical signals and outputs modulated flow and pressure accordingly. Servo valve has the advantages of fast dynamic response, high control precision and long service life, so it has been widely used in the electro-hydraulic servo control system in aviation, aerospace, shipbuilding, metallurgy, chemical industry and other fields.

SV1-10483156 is a power amplifier as well as an electrical and hydraulic converter. The electrical input power is usually about 0.1W, after the pilot stage amplification, the hydraulic output power can reach about 10W, and then after the main spore conversion, the hydraulic output power can reach 10kW. Therefore, the power amplification factor of the valve can reach 105. For a three-stage valve, the small spool drives the large spool, with electrical position feedback, which further brings an additional 100x power amplification.

The SV1-10483156 works on the principle that the position of the main spool is proportional to the electrical signal, while the movement of the spool is driven by internal hydraulic power. The movement of the spool changes the size of the orifice, thereby controlling the flow rate. However, the flow rate depends on the orifice pressure difference, unless a pressure compensator is used. The most common servo valve design is a two-stage nozzle flapper servo valve with mechanical feedback.

The main elements of the SV1-10483156 include the baffle, which is driven by a torque motor and can limit the flow through the nozzle. The travel of the baffle is about 0.1mm. In addition, the servo valve can also be used to build a hydraulic servo control system, which has the characteristics of high control precision, fast response speed and easy automation.

In industrial applications, SV1-10483156 is widely used in various control systems requiring high precision, high speed and high reliability, such as robots, CNC machine tools, metallurgical equipment, chemical equipment and so on. At the same time, with the continuous development of technology, servo valves are constantly upgraded and improved to adapt to more complex and harsh industrial environments.

It should be noted that the fault phenomenon of the servo valve is usually compounded with other fault phenomena of the system, making the problem more complicated. Therefore, in the use and maintenance of the servo valve, it is necessary to have a certain amount of professional knowledge and experience to ensure the normal operation and stability of the system.
