描述

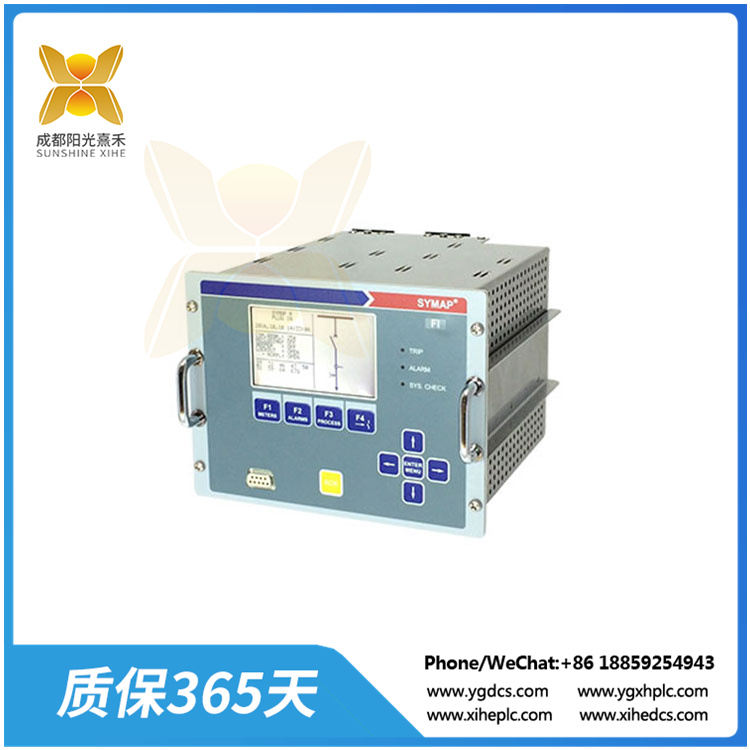

SYMAP-BCG 基于微處理器的數字保護和控制裝置

由于其集成的保護功能和人機界面能力，它是一種高效和經濟的解決方案，適用于所有類型的開關設備。憑借三個強大的微處理器，SYMAP?為發電機，電動機(同步和異步)，變壓器，電力線和配電提供完整的保護和控制功能。所有保護功能可以同時激活，同時使用所有保護功能沒有限制。

使用SYMAP?，五個主要斷路器控制可以激活所有必要的功能，如顯示，控制和阻塞，以實現最佳的斷路器管理。一個小的集成PLC允許單獨的聯鎖控制命令。為了在調試和使用過程中的靈活性，可以使用數字和模擬輸出將SYMAP?控制單元連接到主配電盤控制。

此外，具有不同類型數據協議的各種串行接口可用于SYMAP?單元與中央控制系統之間的通信。對于診斷和監控，SYMAP?具有三個相互監督的微處理器，并提供看門狗系統。重要功能以雙冗余組合方式布置，與第二個處理器獨立運行。單獨連接，可選的短路保護單元與SYMAP?設備并行工作，即使電源故障也會這樣做。

SYMAP-BCG 基于微處理器的數字保護和控制裝置

Because of its integrated protection functions and human-machine interface capabilities, it is an efficient and cost-effective solution for all types of switch gears. With three powerful microprocessors, SYMAP? offers complete protection and control functions for generators, motors (synchronous and asynchronous), transformers, power lines, and distributions. All protection functions can be activated simultaneously, and there are no limits in using all of them at the same time.

With SYMAP?, five main breaker controls can be activated with all the necessary functions, such as display, control and blocking, for optimal breaker management. A small integrated PLC allows individual interlocks of control commands. For flexibility in commissioning and during use, both digital and analog outputs can be used to connect the SYMAP? control unit to main switchboard controls.

Additionally, a variety of serial interfaces with different kinds of data protocols can be used for communication between SYMAP? units and the central control system. For diagnostics and monitoring, SYMAP? has three microprocessors which supervise each other, and providing a watchdog system. Important functions are laid out in a double redundancy combination, operating independently with the second processor. Connected separately, an optional unit for short circuit protection operates parallel to the SYMAP? device and will do so even if the power supply fails.
