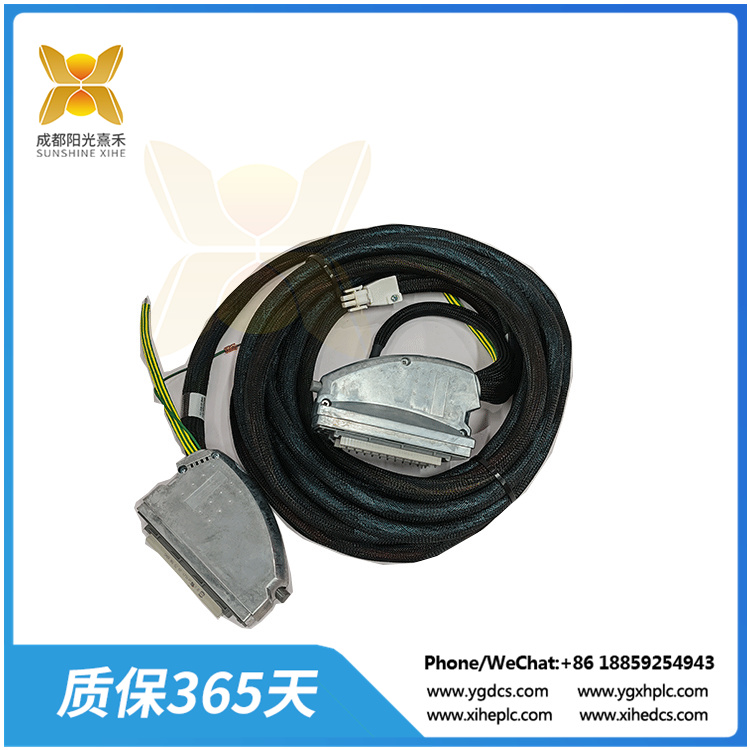

TC-205-02-8M5 可信I/O配套槽位電纜

產品概述
本文檔提供了在Companion Slot組中可用的Trusted?輸入/輸出(I/O)電纜類型的詳細信息。這些類型的電纜根據需要提供可信模擬和數字I/O模塊之間的連接設施，以及可信的現場終端組件或可信的多功能現場終端組件。電纜也可與一端的“飛引線”，以允許連接到條件端子。

目前可用的可信I/O配套槽位電纜類型列在第4頁的表1中

電纜按用戶要求制造;因此，必須指定電纜絕緣的長度和類型。長度必須以xmx格式指定到最接近的0.5 m，例如，如果可訪問的長度為2.0 m，則為2m0。此細節必須添加到零件號的末尾。請注意，某些可選長度是首選選項，并且可能更容易獲得;詳情請參考羅克韋爾自動化。電纜絕緣類型是電纜部件號的一部分，低煙無鹵(LSZH)用02表示，UL認證電纜材料用03表示。02也符合IEC 60332-3 a類阻燃要求。訂購電纜時，建議用戶提供如表1所示的詳細信息。

建議I/O線纜長度不超過15m。如果有必要，可以指定比這更長的電纜，但可能會受到電壓下降，偏移，串?dāng)_和噪聲的影響，并會出現材料處理問題。

內部電纜是為連接在相鄰機箱中的電纜而設計的。如果線纜需要離開機箱環境，外部線纜有更多的保護。請注意，“外部”電纜沒有鎧裝，不適合真正的外部使用，仍然必須小心處理。這些電纜在通過電纜路線時需要保護，也不應該被連接器拉出。它們應該通過運輸/壓縮塊進入機柜，不能裝上。

本文檔中描述的配套槽位線纜，可以通過雙寬機箱插座將熱插拔模塊放置在相鄰槽位上。對于smartlot電纜，允許根據需要為熱插拔分配遠程插槽，請參閱可信I/O smartlot電纜，出版物ICSTTRM313 (PD-TC500)。

TC-205-02-8M5 可信I/O配套槽位電纜

Product Overview
This document provides detailed information for the types of Trusted? input/output (I/O) Cablesavailable within the Companion Slot group. These types of cable provide connection facilitiesbetween the Trusted analogue and digital I/O modules, and Trusted Field Termination Assemblies(FTAs) or Trusted Versatile Field Termination Assemblies (VFTAs) as required. Cables are alsoavailable with a ‘flying lead’ at one end to allow connection to conditioned terminals.

The types of Trusted I/O Companion Slot Cables currently available are listed in Table 1 on page 4

The cables are manufactured to user’s requirements; therefore length and type of cable insulationmust be specified. Length must be specified to the nearest 0.5 m in the format xmx, e.g. 2m0 for acable length of 2.0 m. This detail must be added to the end of the part number. Note that somecable lengths are preferred options and may be easier to obtain; please refer to RockwellAutomation for details. The type of cable insulation forms part of the cable part number and isdenoted by 02 for Low Smoke Zero Halogen (LSZH) or 03 for UL Certified cable material. 02 is alsoflame retardant to IEC 60332-3 Cat A. When ordering cables, it is recommended that the usersupplies the details as shown in Table 1.

The maximum recommended I/O cable length is 15 m. Cables longer than this may be specified ifnecessary but may suffer from voltage drop, offset, crosstalk and noise and will present materialshandling problems.

Internal cables are designed for cables where they are terminated in adjacent enclosures. If thecable needs to leave the enclosure environment, the external cable has more protection. Note thatthe ‘external’ cables are not armoured and are not suitable for truly external use and must still betreated with care. These cables will need protection when drawn through a cable route, and shouldalso not be pulled by the connector(s). They should enter cabinets through transit/compressionblocks and cannot be glanded.

The Companion Slot cables described in this document allow hot-swap modules to be sited inadjacent slots using a double width chassis socket. For SmartSlot cables, allowing a remote slot tobe assigned as necessary for a hot-swap, refer to Trusted I/O SmartSlot Cables, publication ICSTTRM313 (PD-TC500).
