描述

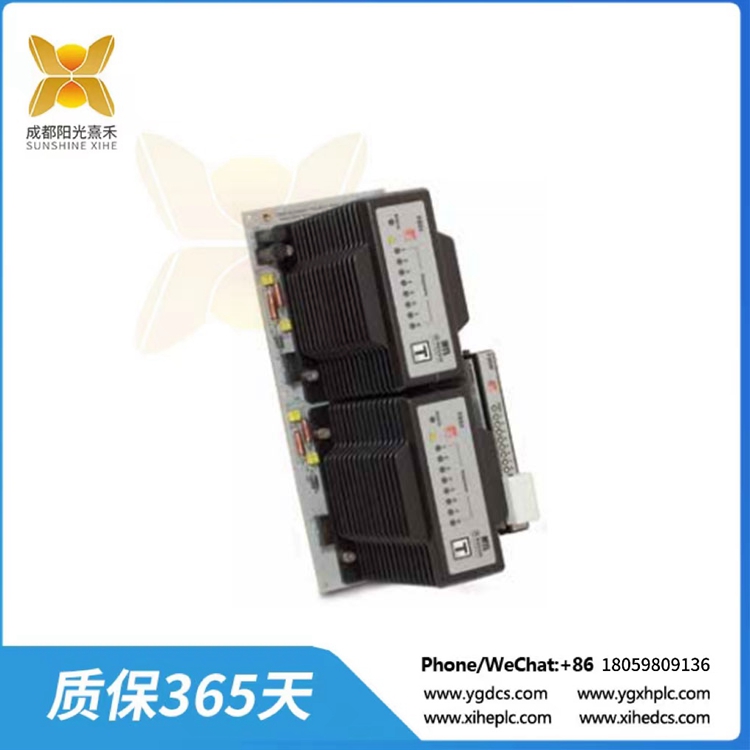

TERMINAL-PLATE-F860-CA? ? C系列“現場總線接口模塊

產品描述
F860設計用于與霍尼韋爾Experion“系列C”現場總線接口模塊一起使用時，為八個基礎現場總線H1段提供冗余電源。模塊支架符合11.6英寸I/O終端組件的機電要求，可直接安裝到霍尼韋爾安裝通道中。

現場總線段由兩個冗余電源模塊f801或f802供電。故障預警、電流隔離、功率調節和分段終止被集成到每個F80x模塊中。在單工應用中，可以使用單個F80x模塊。當安裝單個或冗余F80x模塊時，自動維護現場總線段的終止。

為保證高可靠性，F(xiàn)860 IOTA采用無源模式，僅提供電源模塊對外連接。

IOTA有兩個多針連接器，每個連接器通過標準系統電纜連接到FIM IOTA。

在系列C /O機柜內的不同位置，可提供不同長度的F860及其各自的FIM iota的安裝。現場接線連接在FIM IOTA。

TERMINAL-PLATE-F860-CA? ? C系列“現場總線接口模塊

Product Description
The F860 is designed to provide redundant power to eight foundation fieldbus H1 segments when used with the Honeywell Experion “Series C” Fieldbus Interface Module (fim). Module brackets comply with 11.6 The mechanical and electrical requirements of the inch I/O Terminal Assembly (iota) can be installed directly into the Honeywell installation channel.

The fieldbus segment is powered by two redundant power modules f801 or f802. Fault warning, current isolation, power regulation and segment termination are incorporated into each F80x module. In simplex applications, can To use a single F80x module. Automatically maintains the termination of the fieldbus segment when a single or redundant F80x module is installed.

To ensure high reliability, the F860 IOTA uses passive mode and provides only power modules to connect to external connections.

IOTA has two multi-pin connectors, each connected to FIM IOTA via a standard system cable.

Different lengths are available to accommodate the installation of the F860 and its respective FIM iota in different locations within the series C /O cabinet. Field wiring is connected at FIM IOTA.
