描述

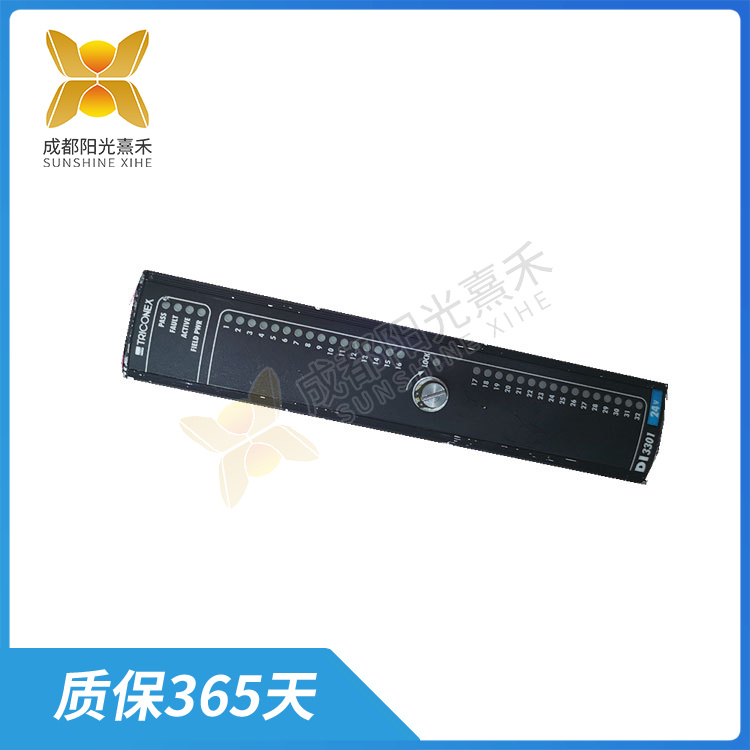

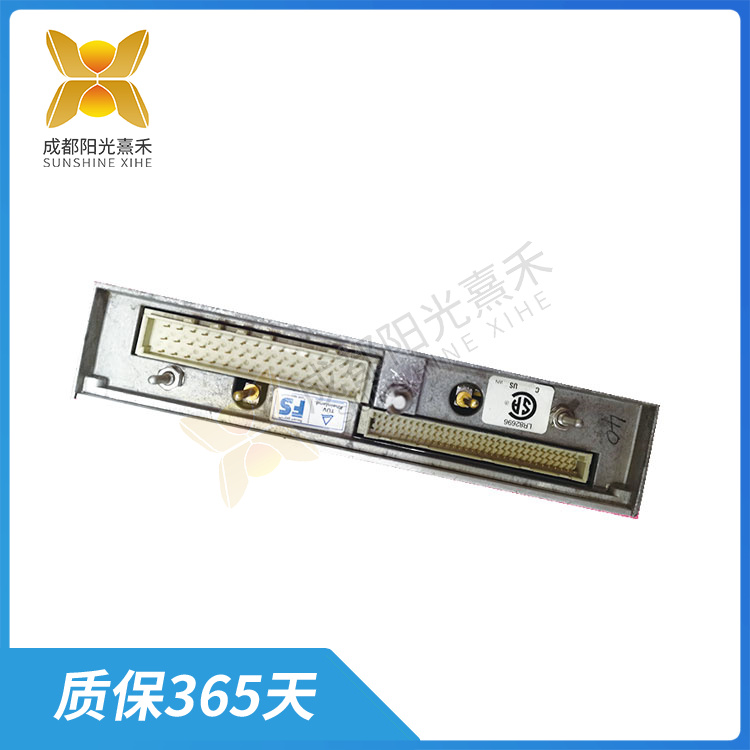

TRICONEX-3301 數字 I/O 模塊

TRICONEX-3301是一款輸入/輸出（I/O）模塊，它主要用于Triconex系統中，用于監視和控制工業過程中的信號和設備。這款模塊具有多個輸入和輸出通道，能夠讀取外部信號并發送控制信號。

具體來說，輸入通道用于監測外部信號，如溫度、壓力、流量等，而輸出通道則用于向執行器發送信號，如啟停電機、打開閥門等。這使得TRICONEX-3301能夠廣泛連接各種傳感器、執行器、開關、繼電器和其他設備，以實現精確的控制邏輯和數據采集。

此外，TRICONEX-3301還具備一些高級功能。例如，每個輸入通道都具有獨立的電子設備，用于處理模塊的現場數據。這些數據隨后會被放置在一個數組中，并根據請求傳輸?shù)脚c通道相關聯的MP（可能指主處理器或其他類型的控制單元）。MP在將數據傳遞給應用程序之前會進行表決，確保數據的準確性和可靠性。

TRICONEX-3301還具備強大的診斷功能。每個通道都進行持續的診斷，如果檢測到故障，故障指示燈會亮起并激活系統警報。這種設計使得故障識別更加精確，能夠迅速定位到具體的通道故障，而不是整個模塊故障，從而提高了維護的效率和準確性。

此外，TRICONEX-3301還具備高可靠性和容錯性。它采用機械鎖定設計，以防止在已配置的基板中安裝不當。同時，它還能在出現單個故障時正常運行，甚至在出現多個故障時也能繼續運行，確保了系統的穩定性和連續性。

總的來說，TRICONEX-3301是一款功能強大、性能穩定的輸入/輸出模塊，適用于各種工業自動化和控制系統。通過其精確的數據采集和強大的控制功能，它能夠幫助企業提高生產效率、降低維護成本，實現更高的經濟效益。

TRICONEX-3301 數字 I/O 模塊

The TriconeX-3301 is an input/output (I/O) module that is primarily used in Triconex systems to monitor and control signals and equipment in industrial processes. This module has multiple input and output channels that can read external signals and send control signals.

Specifically, the input channel is used to monitor external signals, such as temperature, pressure, flow, etc., while the output channel is used to send signals to the actuator, such as starting and stopping the motor, opening the valve, etc. This enables the TRICONEX-3301 to connect a wide range of sensors, actuators, switches, relays and other devices for precise control logic and data acquisition.

In addition, the TRICONEX-3301 has some advanced features. For example, each input channel has its own electronics for processing the module’s field data. This data is then placed in an array and, upon request, transferred to the MP associated with the channel (which may refer to the main processor or other type of control unit). The MP votes on the data before passing it to the application, ensuring the accuracy and reliability of the data.

The TRICONEX-3301 also has powerful diagnostic capabilities. Each channel is continuously diagnosed, and if a fault is detected, the fault indicator lights up and activates the system alarm. This design makes fault identification more accurate and can quickly locate specific channel faults rather than entire module faults, thus improving the efficiency and accuracy of maintenance.

In addition, the TRICONEX-3301 offers high reliability and fault tolerance. It has a mechanical locking design to prevent improper installation in the configured substrate. At the same time, it can also operate normally in the case of a single failure, and even in the case of multiple failures, it can continue to operate, ensuring the stability and continuity of the system.

Overall, the TRICONEX-3301 is a powerful and stable input/output module for a wide range of industrial automation and control systems. Through its accurate data acquisition and powerful control functions, it can help enterprises improve production efficiency, reduce maintenance costs, and achieve higher economic benefits.
