描述

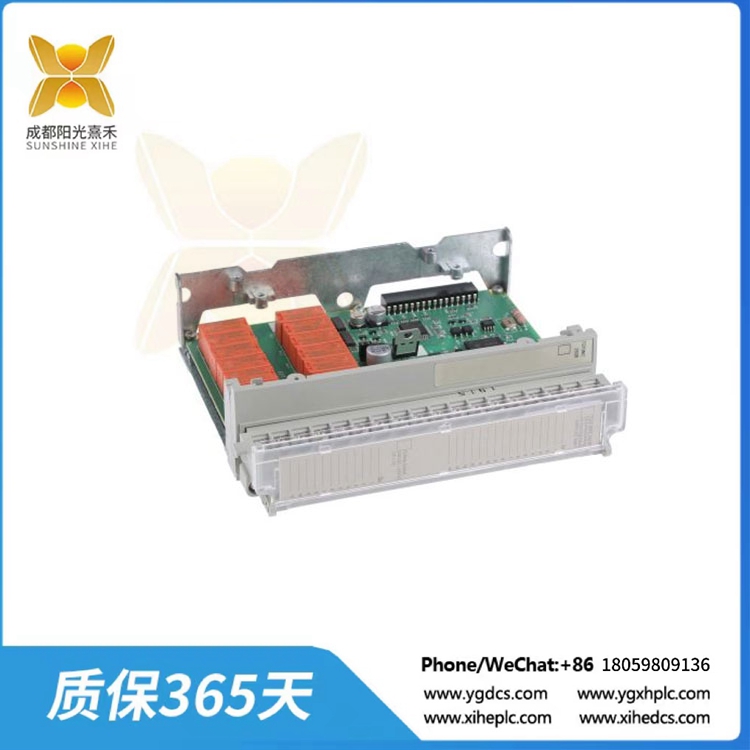

TSXDMZ28DR 離散量繼電i / o基座

主要信息
產品系列:Modicon TSX Micro自動化平臺
產品類型:離散量繼電i / o基座
離散量輸入數量：16 螺釘接線端子
離散量輸入電壓:24 v直流，離散輸入邏輯:負
離散量輸入電流:9 mA

環境
符合標準:iec 1131-2類型
約定發熱電流[i]:3 A

產品概述
由施耐德電氣制造的TSXDMZ28DR是I/O模塊領域的堅定代表，旨在無縫集成到Modicon TSX Micro自動化平臺中。這種分立繼電器I/O基礎體現了可靠性和效率，在各種工業應用中提供最佳性能。

穩健設計
精心制作的細節，TSXDMZ28DR擁有一個堅固的構建，但保持一個輕量化的輪廓，只有0.5公斤。它的結構標志著施耐德電氣對耐用性的承諾，同時又不影響便攜性，確保在不同的操作環境中易于安裝和可操作性。

增強的連接
該模塊配備了16個螺釘端子塊，用于離散輸入，有助于簡化連接，適應一系列精確和輕松的布線配置。24 V直流(負)的離散輸入電壓進一步強調了其與標準工業電源系統的兼容性，確保無縫集成到現有設置中。

高效的性能
響應時間從0.1到7.5毫秒，TSXDMZ28DR保證快速和精確的信號處理，促進輸入狀態之間的快速轉換。其兼容性擴展到2線/3線接近傳感器，擴大了其在工業應用領域的實用性。

可靠的輸出
該模塊主要用于電阻性負載，在10至34 V直流和19至264 V交流的指定電壓范圍內工作。常開(NO)觸點的結合確保了可靠的性能，提高了操作效率，并最大限度地減少了各種工業環境下的停機時間。

優化功耗
效率是TSXDMZ28DR設計的核心，體現在其優化的功耗指標上。該模塊功耗為4.5 W，電流消耗范圍為131 mA至160 mA，在性能和能效之間取得了平衡，有助于可持續運行。

多才多藝的兼容性
TSXDMZ28DR可容納各種各樣的電源，滿足不同電壓和負載的要求。從電阻到感應負載，該模塊展示了多功能性，確保與不同工業設備配置的兼容性。

TSXDMZ28DR 離散量繼電i / o基座

主要信息
產品系列：Modicon TSX Micro 自動化平臺
產品類型：離散量繼電I/O基座
離散量輸入數量：16 螺釘接線端子
離散量輸入電壓：24 V 直流, 離散輸入邏輯: 負
離散量輸入電流：9 mA

環境
符合標準：IEC 1131-2 類型 1
約定發熱電流 [Ith]：3 A

Product Overview
The TSXDMZ28DR, manufactured by Schneider Electric, stands as a stalwart within the realm of I/O Modules, designed to integrate seamlessly into the Modicon TSX Micro automation platform. This discrete relay I/O base embodies reliability and efficiency, delivering optimal performance across various industrial applications.

Robust Design
Crafted with meticulous attention to detail, the TSXDMZ28DR boasts a sturdy build, yet maintains a lightweight profile at just 0.5 kg. Its construction signifies Schneider Electric’s commitment to durability without compromising on portability, ensuring ease of installation and maneuverability within diverse operational environments.

Enhanced Connectivity
Equipped with 16 screw terminal blocks for discrete inputs, this module facilitates streamlined connectivity, accommodating a range of wiring configurations with precision and ease. The discrete input voltage of 24 V DC (negative) further underscores its compatibility with standard industrial power systems, ensuring seamless integration into existing setups.

Efficient Performance
With a response time spanning from 0.1 to 7.5 milliseconds, the TSXDMZ28DR guarantees swift and precise signal processing, facilitating rapid transitions between input states. Its compatibility extends to 2-wire/3-wire proximity sensors, broadening its utility across a spectrum of industrial applications.

Reliable Output
Functioning primarily with resistive loads, this module operates within specified voltage limits of 10 to 34 V DC and 19 to 264 V AC. The incorporation of normally open (NO) contacts ensures dependable performance, enhancing operational efficiency and minimizing downtime across diverse industrial settings.

Optimized Power Consumption
Efficiency lies at the core of the TSXDMZ28DR’s design, evident in its optimized power consumption metrics. With a power dissipation of 4.5 W and current consumption ranging from 131 mA to 160 mA, this module strikes a balance between performance and energy efficiency, contributing to sustainable operations.

Versatile Compatibility
The TSXDMZ28DR accommodates a wide array of power sources, catering to varying voltage and load requirements with finesse. From resistive to inductive loads, this module demonstrates versatility, ensuring compatibility with different industrial equipment configurations.
