描述

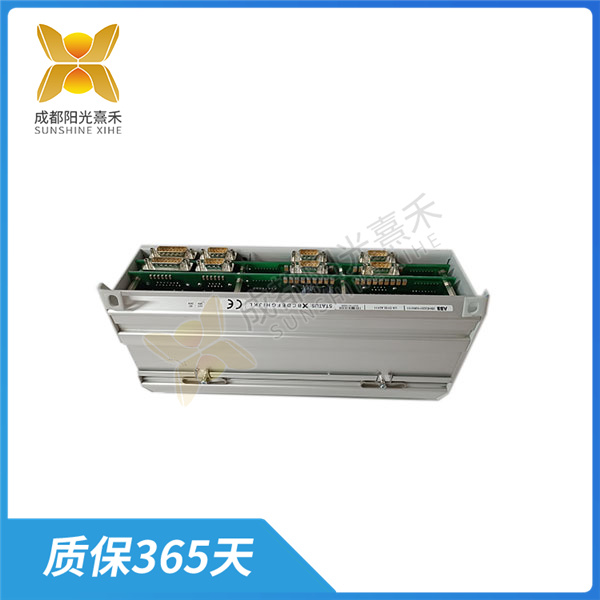

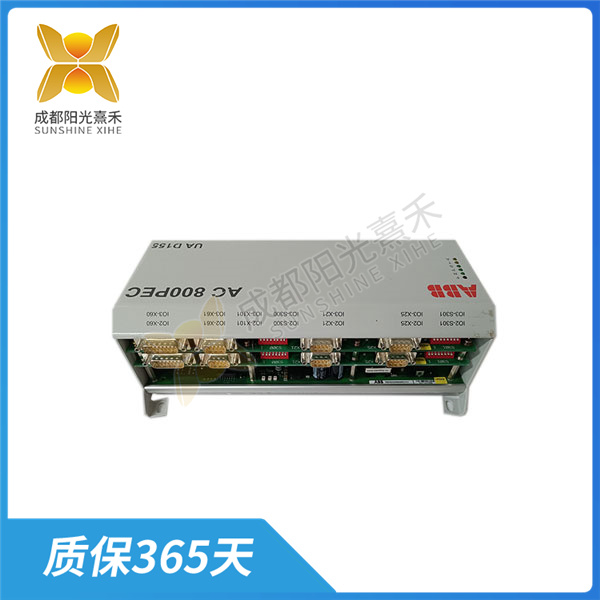

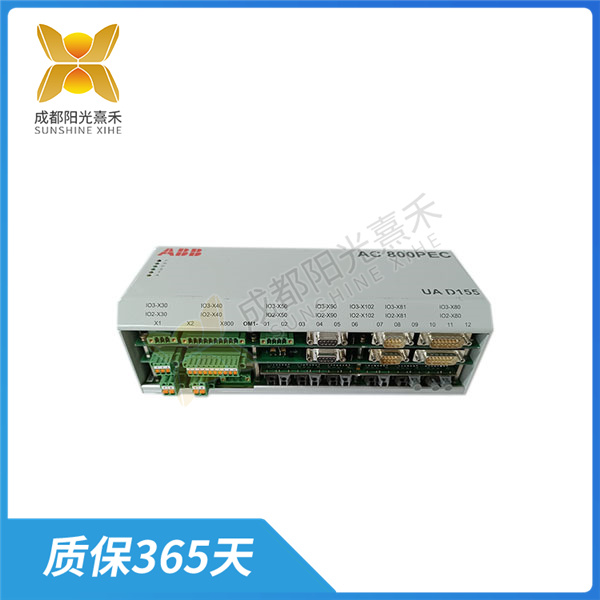

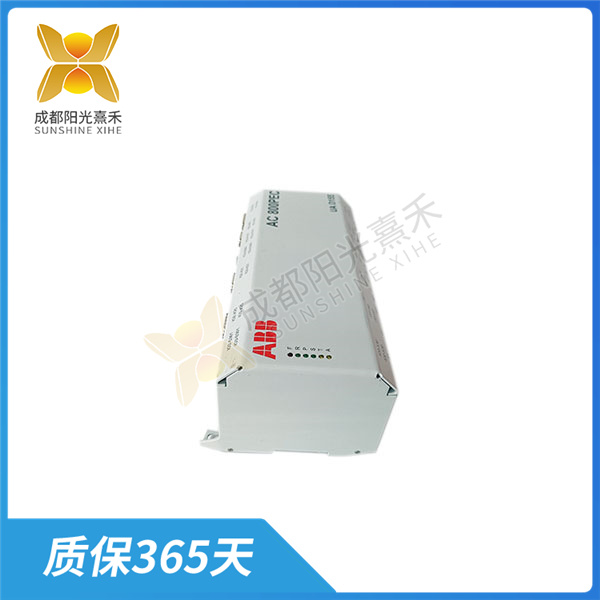

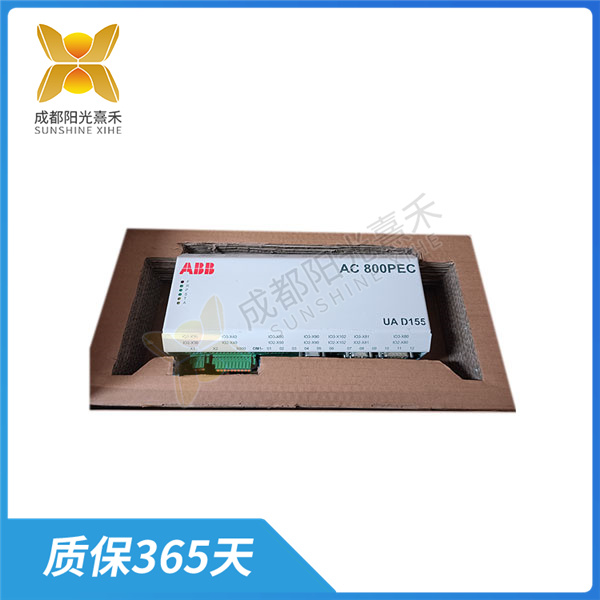

UAD155A0111 3BHE029110R0111 勵磁控制器對發電機組的勵磁電流進行控制

勵磁控制器是水輪發電機組的核心控制設備之一，UAD155A0111 3BHE029110R0111 主要作用是控制發電機組中的電磁勵磁系統，控制發電機組電磁線圈的電流，以調節發電機的電壓和電流輸出值。其具體用途包括但不限于以下幾點：

調節發電機組的磁場強度，保持發電機組的穩定運行。
在并聯運行機組之間合理分配無功功率，提高電力系統的穩定性。
在發電機內部故障時，執行滅磁操作，降低故障損失程度。
根據發電機負載的變化調整勵磁電流，使發電機端電壓保持在給定值。
控制并聯運行的發電機之間的無功功率分配，提高發電機并聯運行的靜態穩定性。

勵磁控制器在發電機組中起著至關重要的作用，UAD155A0111 3BHE029110R0111主要表現在以下幾個方面：

電壓控制：勵磁控制器通過控制勵磁電流來調節發電機的輸出電壓，確保發電機端電壓穩定在規定的范圍內。當發電機組的電壓偏離額定值時，勵磁控制器會自動調節勵磁電流，使電壓回到設定值。

電流控制：勵磁控制器對發電機組的勵磁電流進行控制，保證其符合發電機的運行要求。在發電機組運行過程中，勵磁控制器會實時監測勵磁電流的大小，并根據預設的調節算法對其進行調整，確保電流穩定。

無功功率分配：在并聯運行的發電機組中，勵磁控制器負責合理分配無功功率。通過精確控制各發電機組的勵磁電流，勵磁控制器可以實現無功功率的合理分配，提高電力系統的穩定性。

穩定性控制：勵磁控制器能夠提高發電機組的穩定性。通過實時監測發電機組的運行狀態，勵磁控制器可以快速響應各種擾動，如負載變化、參數波動等，及時調整勵磁電流，確保發電機組運行的穩定。

故障處理：當發電機組出現故障時，勵磁控制器能夠迅速響應，執行滅磁操作，降低故障損失。同時，勵磁控制器還可以觸發報警和保護機制，通知運維人員及時處理故障，保障發電機組的安全運行。

自動調節：勵磁控制器具有自動調節功能，可以根據發電機組的運行需求和電力系統參數進行自動調節。這大大減輕了運維人員的工作負擔，提高了發電機組的運行效率。

綜上所述，UAD155A0111 3BHE029110R0111 勵磁控制器在發電機組中起著至關重要的作用，是保證發電機組穩定、高效、安全運行的關鍵設備之一。

UAD155A0111 3BHE029110R0111 勵磁控制器對發電機組的勵磁電流進行控制

Excitation controller is one of the core control equipment of hydrogenerator set, UAD155A0111 3BHE029110R0111 main function is to control the electromagnetic excitation system in the generator set, control the current of the electromagnetic coil of the generator set, to adjust the voltage and current output value of the generator. Its specific uses include but are not limited to the following:

Adjust the magnetic field strength of the generator set to maintain the stable operation of the generator set.
The rational distribution of reactive power among parallel operating units can improve the stability of power system.
When the internal fault of the generator, the magnetic operation is performed to reduce the degree of fault loss.
Adjust the excitation current according to the change of the generator load to keep the generator terminal voltage at the given value.
Control the reactive power distribution between parallel generators to improve the static stability of parallel generators.

Excitation controller plays a crucial role in the generator set, UAD155A0111 3BHE029110R0111 mainly in the following aspects:

Voltage control: The excitation controller regulates the output voltage of the generator by controlling the excitation current to ensure that the generator terminal voltage is stable within the specified range. When the voltage of the generator set deviates from the rated value, the excitation controller will automatically adjust the excitation current to return the voltage to the set value.

Current control: The excitation controller controls the excitation current of the generator set to ensure that it meets the operation requirements of the generator. During the operation of the generator set, the excitation controller will monitor the size of the excitation current in real time, and adjust it according to the preset adjustment algorithm to ensure the current stability.

Reactive power distribution: In parallel operation of the generator set, the excitation controller is responsible for the reasonable distribution of reactive power. By precisely controlling the excitation current of each generator set, the excitation controller can realize the rational distribution of reactive power and improve the stability of the power system.

Stability control: Excitation controller can improve the stability of the generator set. By monitoring the operating state of the generator set in real time, the excitation controller can quickly respond to various disturbances, such as load changes, parameter fluctuations, and timely adjust the excitation current to ensure the stable operation of the generator set.

Troubleshooting: When the generator set is faulty, the excitation controller can respond quickly and execute the magnetization operation to reduce the fault loss. At the same time, the excitation controller can also trigger the alarm and protection mechanism, notify the operation and maintenance personnel to deal with the fault in time, and ensure the safe operation of the generator set.

Automatic adjustment: The excitation controller has an automatic adjustment function, which can be automatically adjusted according to the operating requirements of the generator set and the parameters of the power system. This greatly reduces the work burden of operation and maintenance personnel and improves the operation efficiency of the generator set.

In summary, the UAD155A0111 3BHE029110R0111 excitation controller plays a crucial role in the generator set, and is one of the key equipment to ensure the stable, efficient and safe operation of the generator set.
