描述

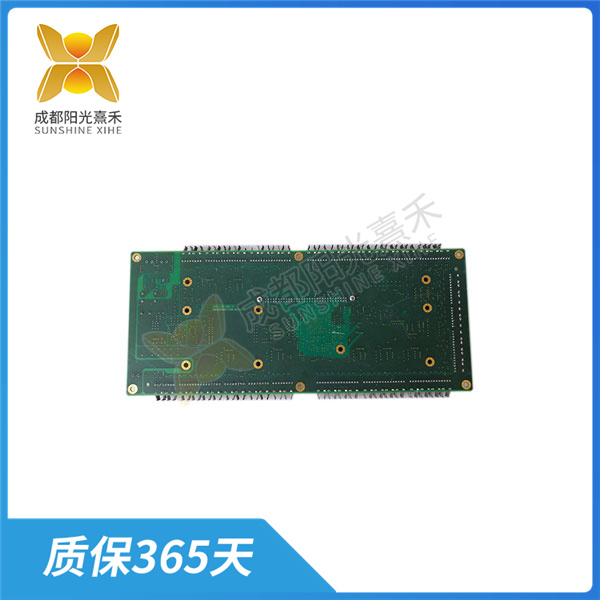

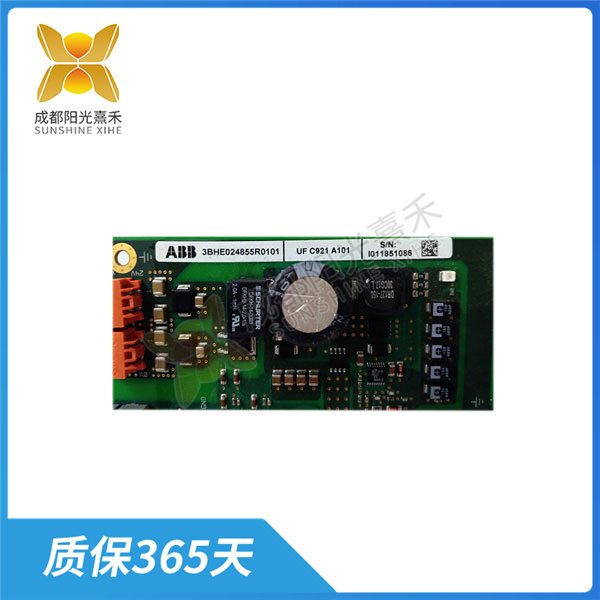

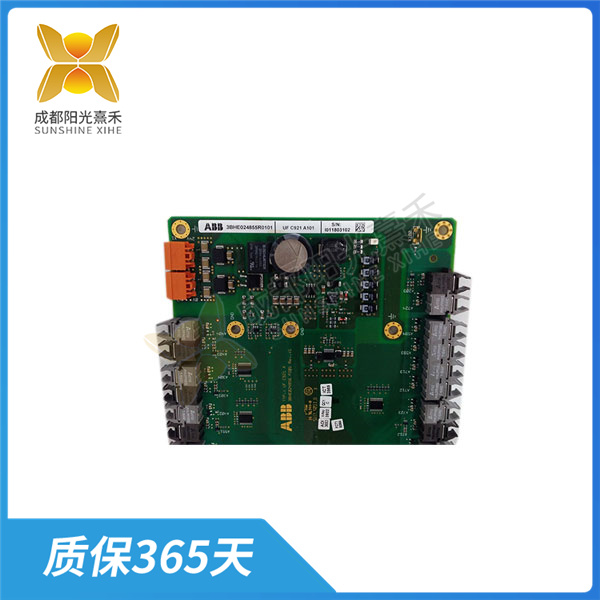

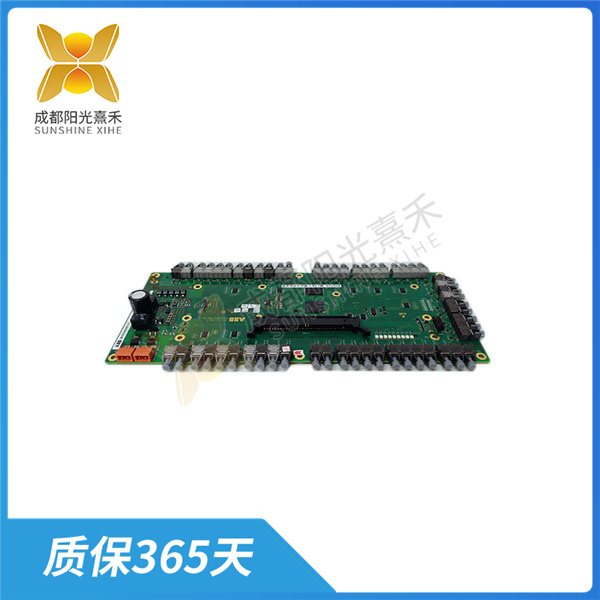

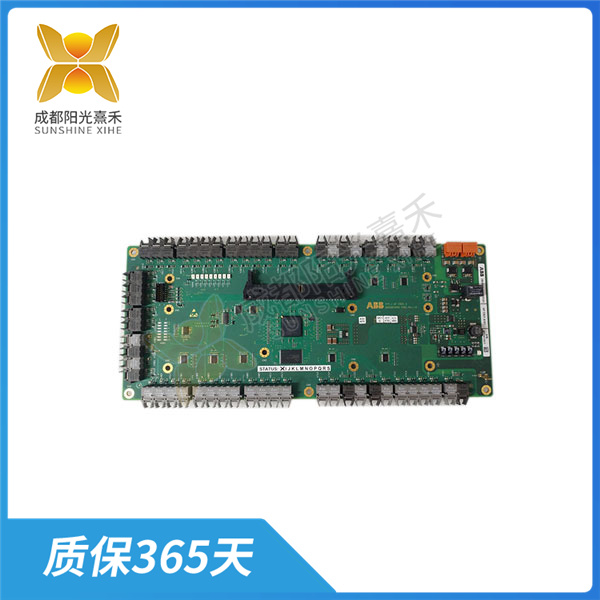

UFC921A101 每個交叉點都可以通過控制信號進行開關操作

高帶寬矩陣開關模塊的工作原理主要基于交叉點的導電性。UFC921A101其核心部分通常由固定的導電性材料組成，例如金屬或半導體材料，這些材料被布置成一個矩形的網格結構。每個交叉點都可以通過控制信號進行開關操作。當導通信號施加到交叉點時，開關閉合，電流得以傳輸；當導通信號斷開時，開關斷開，電流停止傳輸。

高帶寬矩陣開關模塊具有多種應用功能，例如將來自同一電源的不同負載分配到不同的端口上，或?qū)碜圆煌娫吹牟煌?fù)載分配到一個端口上。UFC921A101還允許某個端口上的負載保持不變而將其他端口的負載進行重新分配，甚至允許用戶在一個或多個輸入端使用不同的邏輯來對輸出進行控制等。

高帶寬矩陣開關模塊是一種功能強大的信號切換解決方案，UFC921A101適用于高速數據采集和信號路由應用。它支持高頻率和高速信號傳輸，以確保信號傳遞的準確性和可靠性。其主要特點包括：
– 高帶寬性能：高帶寬的信號切換能力，適用于高速數據采集和信號路由應用。
– 高密度矩陣開關：提供了高密度的矩陣開關能力，可實現多通道信號的切換和路由。
– 低插入損耗：低插入損耗特性，最小化信號衰減和失真。
– 快速切換速度：具備快速的信號切換速度，以減少測試時間和提高生產效率。
– 靈活的連接選項：支持多種連接接口選項，如BNC、D-Sub、Spring Terminal等。

UFC921A101 每個交叉點都可以通過控制信號進行開關操作

The working principle of the high-bandwidth matrix switch module is mainly based on the electrical conductivity of the crossing points. The core of the UFC921A101 is usually composed of fixed conductive materials, such as metal or semiconductor materials, which are arranged in a rectangular grid structure. Each intersection can be switched on and off by a control signal. When the pilot signal is applied to the crossing point, the switch is closed and the current is transmitted; When the pilot signal is disconnected, the switch is disconnected and the current stops transmitting.

The high-bandwidth matrix switch module has a variety of application functions, such as distributing different loads from the same power supply to different ports, or distributing different loads from different power supplies to a single port. UFC921A101 also allows the load on one port to remain the same while the load on other ports is redistributed, and even allows the user to use different logic on one or more inputs to control the output.

The High bandwidth matrix switching module is a powerful signal switching solution, and the UFC921A101 is suitable for high-speed data acquisition and signal routing applications. It supports high frequency and high speed signal transmission to ensure the accuracy and reliability of signal transmission. Its main features include:
– High bandwidth performance: High bandwidth signal switching capability for high-speed data acquisition and signal routing applications.
– High-density matrix switch: provides high-density matrix switch capability, which can realize the switching and routing of multi-channel signals.
– Low insertion loss: Low insertion loss feature minimizes signal attenuation and distortion.
– Fast switching speed: Fast signal switching speed to reduce test time and increase production efficiency.
– Flexible connection options: Supports a variety of connection interface options, such as BNC, D-Sub, Spring Terminal, etc.
