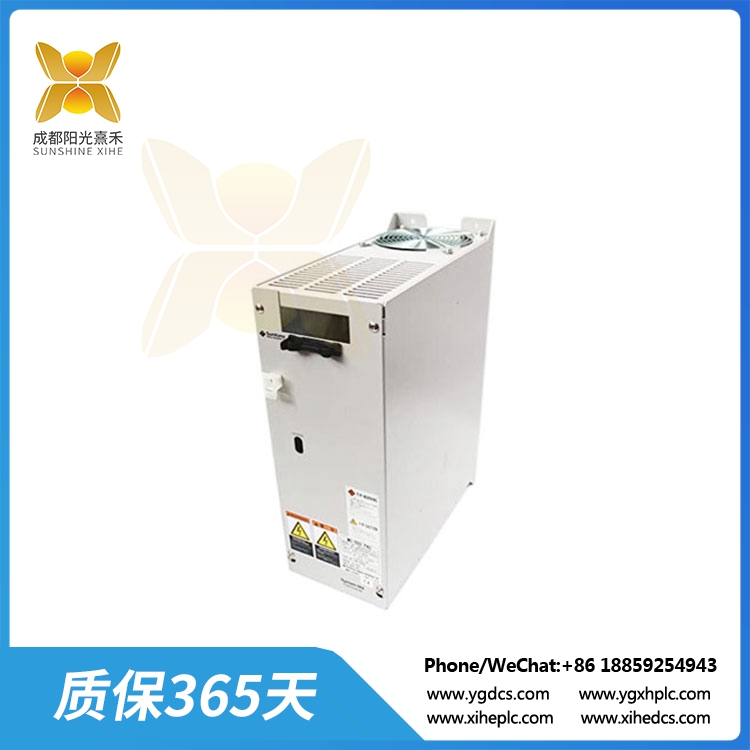

UMC554000-02 伺服驅動器

UMC554000-01伺服驅動器(servo drives)又稱為“伺服控制器”、“伺服放大器” ，是用來控制伺服電機的一種控制器，其作用類似于變頻器作用于普通交流馬達，屬于伺服系統的一部分，主要應用于高精度的定位系統。一般是通過位置、 速度和力矩三種方式對伺服電機進行控制，實現高精度的傳動系統定位，目前是傳動技術的高端產品。

UMC554000-01在伺服驅動器速度閉環中，電機轉子實時速度測量精度對于改善速度環的轉速控制動靜態特性至關重要。為尋求測量精度與系統成本的平衡，-般采用增量式光電編碼器作為測速傳感器，與其對應的常用測速方法為M/T測速法。M/T測速法雖然具有一定的測量精度和較寬的測量范圍，但這種方法有其固有的缺陷，主要包括: 1)測速周期內必須檢測到至少- 一個完整的碼盤脈沖，限制了最低可測轉速; 2)用于測速的2個控制系統定時器開關難以嚴格保持同步，在速度變化較大的測量場合中無法保證測速精度。因此應用該測速法的傳統速度環設計方案難以提高伺服驅動器速度跟隨與控制性能。

UMC554000-01伺服驅動器原理:目前主流的伺服驅動器均采用數字信號處理器(DSP) 作為控制核心，可以實現比較復雜的控制算法，實現數字化、網絡化和智能化。功率器件普遍采用以智能功率模塊(IPM) 為核心設計的驅動電路，IPM內部集成了驅動電路，同時具有過電壓、過電流、過熱、欠壓等故障檢測保護電路,在主回路中還加入軟啟動電路，以減小啟動過程對驅動器的沖擊。

UMC554000-01功率驅動單元首先通過三相全橋整流電路對輸入的三相電或者市電進行整流，得到相應的直流電。經過整流好的三相電或市電,再通過三相正弦PWM電壓型逆變器變頻來驅動三相永磁式同步交流伺服電機。功率驅動單元的整個過程可以簡單的說就是AC-DC-AC的過程。整流單元(AC-DC) 主要的拓?fù)潆娐肥侨嗳珮虿豢卣麟娐贰?/p>

UMC554000-02 伺服驅動器

UMC554000-01 servo drives (servo drives), also known as “servo controller”, “servo amplifier”, is a controller used to control the servo motor, its role is similar to the frequency converter acting on the ordinary AC motor, is a part of the servo system, mainly used in high-precision positioning system. Generally, the servo motor is controlled through three ways of position, speed and torque to achieve high-precision transmission system positioning, and it is currently a high-end product of transmission technology.

UMC554000-01 In the servo drive speed closed loop, the real-time speed measurement accuracy of the motor rotor is very important to improve the dynamic and static characteristics of the speed control of the speed ring. In order to find a balance between measurement accuracy and system cost, incremental photoelectric encoders are generally used as speed sensors, and the corresponding common speed measurement method is M/T speed measurement. Although M/T velocity measurement method has a certain measurement accuracy and a wide measurement range, but this method has its inherent defects, including: 1) the speed measurement cycle must detect at least – a complete code pulse, limiting the minimum measurable speed; 2) The timer switches of the two control systems used for speed measurement are difficult to maintain strict synchronization, and the accuracy of speed measurement cannot be guaranteed in the measurement occasions with large speed changes. Therefore, it is difficult to improve the performance of servo drive speed following and control by using the traditional speed loop design method.

UMC554000-01 servo driver principle: At present, the mainstream servo drivers all use digital signal processor (DSP) as the control core, which can realize more complex control algorithms, and realize digitalization, networking and intelligence. Power devices generally use intelligent power module (IPM) as the core design of the drive circuit, IPM internal integrated drive circuit, and has overvoltage, overcurrent, overheating, undervoltage and other fault detection protection circuit, in the main circuit also add a soft start circuit to reduce the impact of the start process on the driver.

The UMC554000-01 power drive unit first rectifies the input three-phase or mains through the three-phase full-bridge rectifier circuit to obtain the corresponding direct current. The three-phase permanent magnet synchronous AC servo motor is driven by the three-phase sinusoidal PWM voltage inverter after the rectified three-phase power or mains. The whole process of the power drive unit can be simply said to be the AC-DC-AC process. The main topological circuit of the rectifier unit (AC-DC) is the three-phase full-bridge uncontrolled rectifier circuit.
