描述

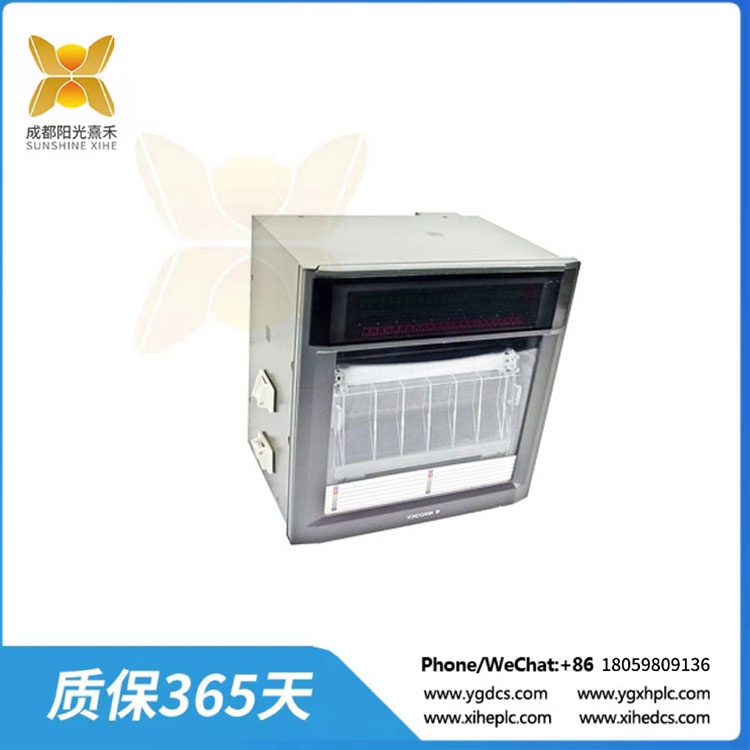

UR1800 記錄儀

產品描述

UR1800 YOKOGAWA記錄儀是用來記錄和監測各種參數和變量的設備。它可以收集數據并生成詳細的記錄，以便進行分析和評估。

特征
UR1800記錄儀是一種精密測量?jī)x器，具有許多優點：尺寸緊湊，可靠性高：其緊湊的尺寸（深度220毫米）允許您在有限的空間內安裝UR1800。在筆型的情況下，無接觸電位計和無刷直流伺服電機有助于其高可靠性。在點印刷模型的情況下，通過使用高擊穿電壓固態繼電器來獲得高可靠性。

通用輸入：直流電壓、熱電偶（TC）、電阻溫度檢測器（RTD）和數字輸入（觸點）等輸入都可以方便地使用。無需更換任何DIP開關；可以使用鍵盤來設置輸入的類型。簡單的交互式設置：只使用面板鍵，設置過程變得非常簡單。UR1800要求您選擇所需設置，而無需記住困難的設置代碼。

大型信息操作員顯示器：大型VFD顯示器同時顯示測量數據（包括工程單位）或時鐘和條形圖。

有兩種類型的條形圖可用：百分比顯示和中心零點顯示。由于其1%的分辨率，條形圖顯示非常準確。

最多可進行四個通道的連續筆式記錄（僅限于筆式型號）：根據UR1800型號的不同，UR1800最多可同時測量四個通道。這允許您減少所需記錄器的數量。

通用電源（/P1型號除外）：UR1800可接受90至250VAC（132至180VAC除外）和50/60Hz，無任何問題，也無需切換開關。因此，UR1800可與多種電源兼容。

高性能：UR1800筆型的采樣速度高達125毫秒，而UR1800點打印型的記錄周期為6通道/10秒，即12通道/15秒。，18英寸/20秒。或24ch/30秒。取決于型號。UR1800配備了許多功能。特殊功能可以作為選項訂購。此外，其功耗較低（4pen型號；正常運行條件下為30VA）。

易于維護：由于使用了許多無接觸部件，減少了對形式維護的需求。UR1800采用模塊化設計，大大減少了維護所需的時間。

封閉式外殼：UR1800的封閉式外殼使其能夠在許多環境中使用。前門符合DIN 40050-IP54。

計算機接口和存儲卡：如果配備此選項，UR1800可以使用IC存儲卡直接從電腦存儲和檢索測量數據以及設置數據?？捎媒涌跒镽S-422-A?；趪?guó)際安全標準：UR1800（便攜式除外）基于IEC 348等國際安全標準。

UR1800是一款記錄寬度為180毫米的緊湊型記錄器。模型族由1、2、3、4筆和6、12、18、24點模型組成。筆型實現每個通道的連續記錄，而點打印型實現6點/10秒的高記錄速度。，12點/15秒。，18點/20秒。，24點/30秒。它的輸入是通用的，這意味著它可以自由選擇使用輸入，如直流電壓、熱電偶、電阻溫度檢測器、觸點輸入等。除了模擬記錄外，還可以使用數字?jǐn)?shù)據，如日期和時間、測量值、標簽、單位、標度值、圖表速度、警報、計算值等。也可以打印。高可靠性是通過內部開發的無觸點技術實現的，如高擊穿電壓半導體繼電器和直流無刷伺服電機。此外，UR1800的外殼很短，只有220毫米。使用5×7VFD顯示器實現了良好的可讀性，并且由于交互式程序菜單，其設置變得容易。實時數據也顯示為條形圖。

應用領域
UR1800 YOKOGAWA記錄儀廣泛應用于如過程溫度監測、污染、建筑、熔爐、醫療診斷領域、制冷領域等

UR1800 記錄儀

Product description

The UR1800 YOKOGAWA recorder is a device used to record and monitor various parameters and variables. It can collect data and generate detailed records for analysis and evaluation.

trait
The UR1800 recorder is a precision measuring instrument with many advantages: compact size and high reliability: its compact size (depth of 220 mm) allows you to install the UR1800 in a limited space. In the case of pen type, contactless potentiometers and brushless DC servo motors contribute to its high reliability. In the case of point-printed models, high reliability is achieved by using a high breakdown voltage solid-state relay.

Universal inputs: Inputs such as DC voltage, thermocouple (TC), resistance temperature detector (RTD) and digital input (contacts) can be easily used. No need to replace any DIP switches; You can use the keyboard to set the type of input. Simple interactive setup: Using only the panel keys, the setup process becomes very simple. The UR1800 requires you to choose the Settings you want without having to remember difficult setup codes.

Large information operator display: Large VFD displays both measurement data (including engineering units) or clocks and bar charts.

There are two types of bar charts available: the percentage display and the center zero display. Thanks to its 1% resolution, the bar chart displays very accurately.

Continuous pen recording of up to four channels (pen models only) : Depending on the UR1800 model, the UR1800 can measure up to four channels simultaneously. This allows you to reduce the number of loggers required.

Universal power supply (except /P1 models) : The UR1800 can accept 90 to 250VAC (except 132 to 180VAC) and 50/60Hz without any problems and without switching switches. The UR1800 is therefore compatible with a wide range of power supplies.

High performance: The UR1800 pen model has a sampling speed of up to 125 ms, while the UR1800 point print model has a recording cycle of 6 channels /10 seconds, which is 12 channels /15 seconds. 18 inches /20 seconds. Or 24ch/30 seconds. Depends on the model. The UR1800 comes with many features. Special features can be ordered as an option. In addition, its power consumption is lower (4pen models; 30VA under normal operating conditions).

Easy maintenance: The use of many contactless parts reduces the need for formal maintenance. The modular design of the UR1800 greatly reduces the time required for maintenance.

Closed housing: The UR1800’s closed housing enables it to be used in many environments. The front door complies with DIN 40050-IP54.

Computer interface and memory card: If equipped with this option, the UR1800 can store and retrieve measurement data as well as setup data directly from the computer using an IC memory card. Available interface is RS-422-A. Based on international safety standards: UR1800 (except portable) is based on international safety standards such as IEC 348.

The UR1800 is a compact recorder with a recording width of 180 mm. The model family consists of 1, 2, 3, 4 pen and 6, 12, 18, 24 point models. The pen type enables continuous recording of each channel, while the point print type achieves a high recording speed of 6 o ‘clock /10 seconds. , 12 o ‘clock /15 seconds. 18 o ‘clock /20 seconds. 24 o ‘clock /30 seconds. Its input is universal, which means it can freely choose to use inputs such as DC voltage, thermocouple, resistance temperature detector, contact input, etc. In addition to analog recording, digital data such as date and time, measurements, labels, units, scale values, chart speeds, alerts, calculated values, etc., can be used. It can also be printed. High reliability is achieved through internally developed contactless technologies such as high breakdown voltage semiconductor relays and DC brushless servo motors. In addition, the case of the UR1800 is very short, only 220 mm. Good readability is achieved with the 5×7VFD display, and its setup is made easy thanks to the interactive program menu. The real-time data is also displayed as a bar chart.

Application field
The UR1800 YOKOGAWA recorder is widely used in such fields as process temperature monitoring, pollution, construction, furnaces, medical diagnostics, refrigeration, etc
