描述

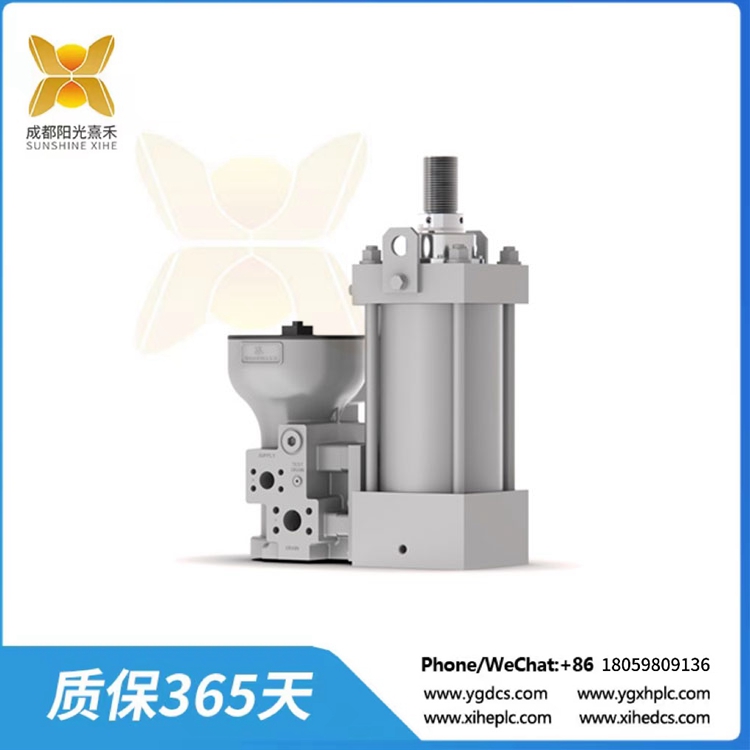

V45TD-1007-MUE2 電液執行器

VariStroke系列可通過簡單易用的基于計算機的PC服務工具進行配置，允許用戶輕松配置、校準和調整所有內部功能和響應設置。其集成驅動器包括一個4-20 mA輸出通道，用于指示輸出軸(控制閥)位置，以及裝置報警和停機繼電器輸出，用作裝置健康和狀態指示。4-20 mA按需輸入和雙冗余軸位置傳感器使其即使在按需輸入或反饋傳感器故障的情況下也能繼續運行，從而確保延長強制停機和在線系統維修之間的運行時間。

這種完全集成的致動器的總安裝成本很低，因?yàn)樗窃诠S完全組裝和測試的，大大減少了”OEM和最終用戶的制造、測試和現場組裝時間。在改型應用中，變沖程致動器可用于直接取代現有的伺服系統。這節省了對現有和老化伺服系統的昂貴維修,消除了為過時設備獲取備件的困難，并減少了校準時間和難度。
耐臟設計:
兩個移動部件
50磅切屑剪切力
0無識別結果
自潔閥設計
可變/可配置軸行程長度
快速壓擺率/時間:
依賴于應用
500 psi供應壓力空載時，轉換速率高達762毫米/秒(30英寸秒)
精確位置控制
側向負載容許:
軸承
三重密封技術
集成驅動器:
4- 20毫安
包括閥門流量線性化表
冗余MLDT位置傳感器
通過危險場所認證

V45TD-1007-MUE2 電液執行器

The VariStroke series can be configured with an easy-to-use computer-based PC service tool that allows users to easily configure, calibrate and adjust all internal functions and response Settings. Its integrated drivers include a 4-20 mA output channel to indicate the position of the output shaft (control valve), and device alarm and shutdown relay outputs for device health and status indication. The 4-20 mA on-demand input and dual redundant shaft position sensors enable continued operation even in the event of an on-demand input or feedback sensor failure, ensuring extended uptime between forced downtime and online system repairs.

The total installation cost of this fully integrated actuator is low because it is fully assembled and tested at the factory, significantly reducing “manufacturing, testing and field assembly time for Oems and end users.” In retrofit applications, variable stroke actuators can be used to directly replace existing servo systems. This saves costly repairs to existing and aging servo systems, eliminates the difficulty of obtaining spare parts for obsolete equipment, and reduces calibration time and difficulty.
Dirt resistant design:
Two moving parts
50 pounds of chip shear
0 No identification result
Self-cleaning valve design
Variable/configurable shaft travel length
Rapid pressure swing rate/time:
Application dependent
Up to 762 mm/s (30 inches/s) when unloaded at 500 psi supply pressure
Precise position control
Lateral load tolerance:
bearing
Triple seal technique
Integrated driver:
4-20 mA
Includes valve flow linearization table
Redundant MLDT position sensor
Certified hazardous place
