描述

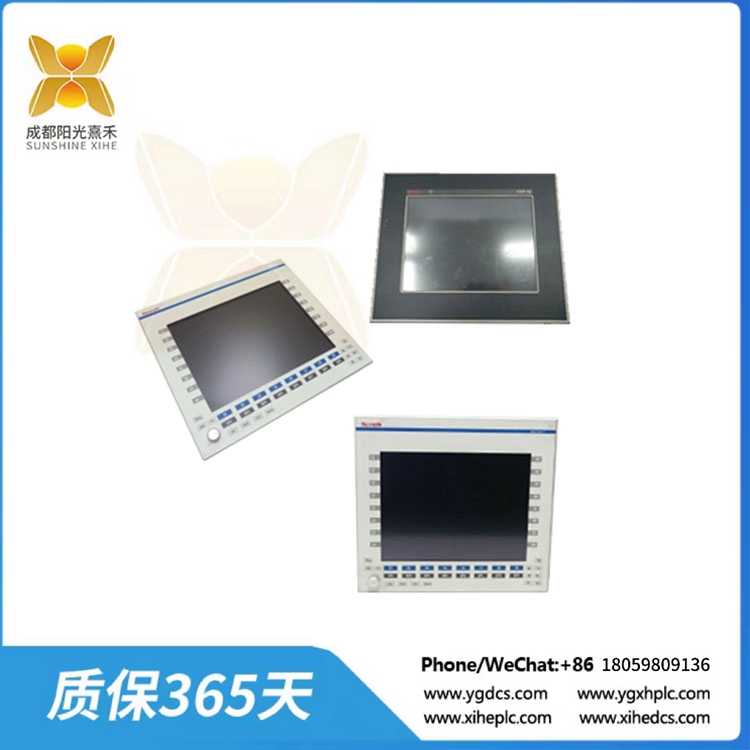

VDP40 控制/顯示單元

產品描述
工業地板上的機器和人之間的交互對于工業應用的順利運行至關重要。多年來，博世力士樂設計和制造了可靠、有效和耐用的人機界面。力士樂VDP系列操作終端經久耐用，可承受惡劣的工業環境和苛刻的工業應用。博世的VDP顯示器屏幕尺寸從12英寸到22英寸不等，可以安裝在需要空間間距質量的環境中。力士樂VDP系列顯示器可提供一系列縮放尺寸，并允許通過電容觸摸屏或鍵盤或兩者進行精確操作。

博世力士樂VDP40是indr網管VDP40系列中的一款操作終端。終端有一個15英寸的觸摸屏，有16個機器功能鍵。當與帶有CDI接口的控制柜PC機配合使用時，VDP40.3DFN-D1-NN-MX構成基于PC機的操作終端。為方便連接，CDI接口為RJ45母頭，用于控制柜PC機與VDP40.3DFN-D1-NN-MX之間的數據傳輸。通過使用現成的RJ45連接器，控制柜PC和操作員終端之間的連接不需要昂貴的連接設備。

為了進一步降低連接成本，CDI接口包括屏幕接口(XVID)和數據接口(XSER)。當環境溫度為5℃~ 45℃，無冷凝相對濕度為5% ~ 85%時，VDP40可達到最佳性能。博世力士樂indrcontrol VDP 40顯示器設計為使用24伏直流外部電源進行操作。具有IP 20的整體入口保護，該終端適合在無液體的環境中運行。

VDP40 控制/顯示單元

Product Description
The interaction between a machine and a person on the industrial floor is vital to the smooth running of industrial applications. Over the years, Bosch Rexroth has designed and manufactured human machine interfaces that are reliable, effective, and durable. Rexroth’s VDP series of operator terminals are durable and designed to withstand harsh industrial environments and tough industrial applications. With a screen size ranging from 12 inches and 22 inches, Bosch’s VDP displays can be mounted in environments where space-spacing qualities are needed. Rexroth VDP series displays are available in a range of scaled sizes and allow precise operation via a capacitive touchscreen or a keyboard or both.

The Bosch Rexroth VDP40 is an operator terminal in the IndraControl VDP 40 series. The terminal has a 15-inch touchscreen display with 16 machine function keys. When used with a control cabinet PC equipped with a CDI interface, the VDP40.3DFN-D1-NN-MX forms a PC-based operator terminal. To facilitate connections, the CDI interface has an RJ45 female connector and is used to facilitate data transfer between a control cabinet PC and the VDP40.3DFN-D1-NN-MX. By using the readily available RJ45 connector, the connection between the control cabinet PC and the operator terminal eliminates the need for expensive connection devices.

To further minimize connection costs, the CDI interface includes the screen interface (XVID) and the data interface (XSER). The VDP40 reaches optimal performance when operated in environments with a surrounding temperature of between 5 degrees Celsius and 45 degrees Celsius and a non-condensing relative humidity of between 5 percent and 85 percent. The Bosch Rexroth IndraControl VDP 40 display is designed to be operated with an external power source supplying 24 Volts DC. With an overall ingress protection of IP 20, the terminal is suited to be operated in environments free from liquids.
