描述

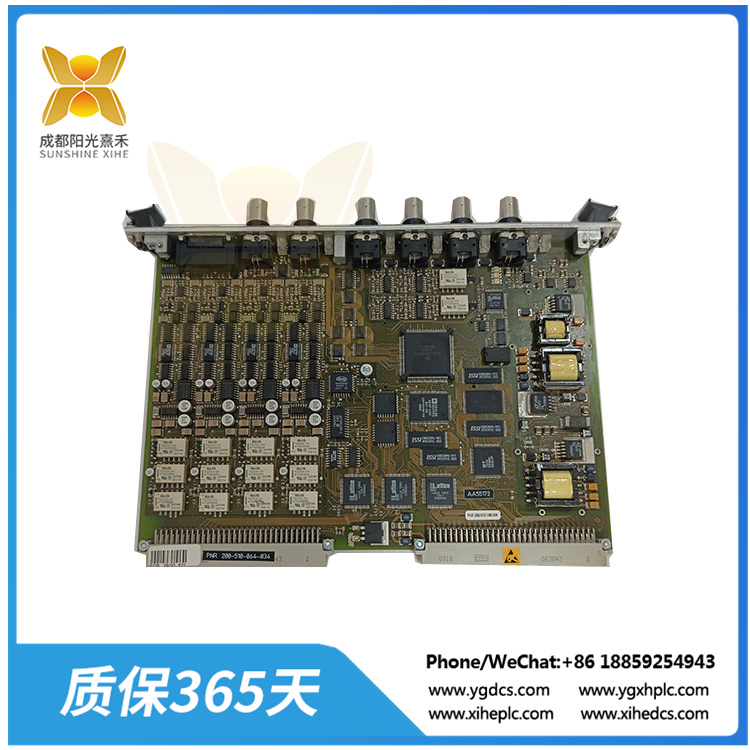

產品細節說明：VM600-MPC4-200-510-100-034 VIBRO-METER 振動監測模塊

VIBRO-METER VM600-MPC4-200-510-100-034是一款來自VIBRO-METER的振動監測模塊，特別適用于VM600機架式機械監控系統。該產品是VIBRO-METER系列中的高性能、高可靠性機械保護卡，已經通過了SIL 2認證。

1. 通道配置：MPC4卡提供4個動態通道和2個轉速計（速度）通道，所有通道都可以獨立配置。
2. 輸出配置：每個動態通道有2個處理輸出，每個雙通道有1個處理輸出（每個MPC4共有2個），每個轉速器通道有1個處理輸出。
3. 集成度高：高度集成的卡對（帶IOC4T）包括傳感器電源、緩沖輸出、DC輸出、繼電器和串行通信接口。
4. 應用針對性：專為VM600 MPSx軟件設計，用于監測和分析機械設備的振動和運行狀態。
5. 監測能力：
   • 振動監測：能夠檢測設備或機械部件的振動情況，并提供相應的振動數據和參數。
   • 機械狀態監測：除了振動監測外，還可以監測機械部件的其他狀態，如溫度、壓力等。
   • 數據采集：能夠進行數據采集，將監測到的振動數據和其他參數傳輸給監控系統或數據記錄器。
   • 實時數據處理和分析：實時采集傳感器數據，并進行處理和分析，以便對系統狀態進行實時監測和診斷。
6. 通信接口：通常具有各種通信接口，如Modbus、Ethernet等，用于與其他設備和控制系統進行數據交換和通信。

產品詳情參數 ：VM600-MPC4-200-510-100-034 VIBRO-METER 振動監測模塊

• • 尺寸：210 x 170 x 75 mm
  • 重量：1.5 kg
  • 防護等級：IP20
  • 信號輸入：BNC連接器
  • 通信接口：RS-485（可能還包含Modbus、Ethernet等接口）
• 工作環境：
  • 工作溫度：-20°C至60°C
  • 供電電壓：24VDC

VM600-MPC4-200-510-100-034 VIBRO-METER 應用領域：

VIBRO-METER VM600-MPC4-200-510-100-034主要應用于能源、航空航天等領域，為旋轉機器提供完整的保護、狀態監測和性能監測儀表系統。

Product details: VM600-MPC4-200-510-100-034 VIBRO-METER vibration monitoring module

VIBRO-METER VM600-MPC4-200-510-100-034 is a vibration monitoring module from VIBRO-METER, particularly suitable for VM600 rack mounted mechanical monitoring systems. This product is a high-performance and highly reliable mechanical protection card in the VIBRO-METER series, and has passed SIL 2 certification.

Channel configuration: The MPC4 card provides 4 dynamic channels and 2 tachometer (speed) channels, all of which can be independently configured.
Output configuration: Each dynamic channel has 2 processing outputs, each dual channel has 1 processing output (2 for each MPC4), and each tachometer channel has 1 processing output.
High integration: A highly integrated card pair (with IOC4T) includes sensor power supply, buffered output, DC output, relay, and serial communication interface.
Application specificity: Specially designed for VM600 MPSx software, used for monitoring and analyzing the vibration and operating status of mechanical equipment.
Monitoring capability:
Vibration monitoring: capable of detecting the vibration situation of equipment or mechanical components, and providing corresponding vibration data and parameters.
Mechanical condition monitoring: In addition to vibration monitoring, it can also monitor other states of mechanical components, such as temperature, pressure, etc.
Data collection: capable of data collection, transmitting monitored vibration data and other parameters to monitoring systems or data recorders.
Real time data processing and analysis: Real time collection of sensor data, processing and analysis for real-time monitoring and diagnosis of system status.
Communication interface: usually has various communication interfaces, such as Modbus, Ethernet, etc., used for data exchange and communication with other devices and control systems.
Product details parameters: VM600-MPC4-200-510-100-034 VIBRO-METER vibration monitoring module
Dimensions: 210 x 170 x 75 mm
Weight: 1.5 kg
Protection level: IP20
Signal input: BNC connector
Communication interface: RS-485 (may also include Modbus, Ethernet, and other interfaces)
Work environment:
Working temperature: -20 ° C to 60 ° C
Power supply voltage: 24VDC

VM600-MPC4-200-510-100-034 VIBRO-METER application areas:

VIBRO-METER VM600-MPC4-200-510-100-034 is mainly used in the fields of energy, aerospace, etc., providing complete protection, condition monitoring, and performance monitoring instrument systems for rotating machines.
