VM600 MPC4 200-510-100-034 主要應用于電力、石油、化工、鋼鐵、水泥等行業的旋轉機械振動監測和故障診斷領域 。

這款儀器的設計考慮了工業環境的適應性，具有良好的抗震動和耐用性，能夠在惡劣條件下長期穩定工作 。它還支持與多種外部系統的數據交換，如數據庫、消息和排隊系統，以便于數據存儲、分析和處理 。

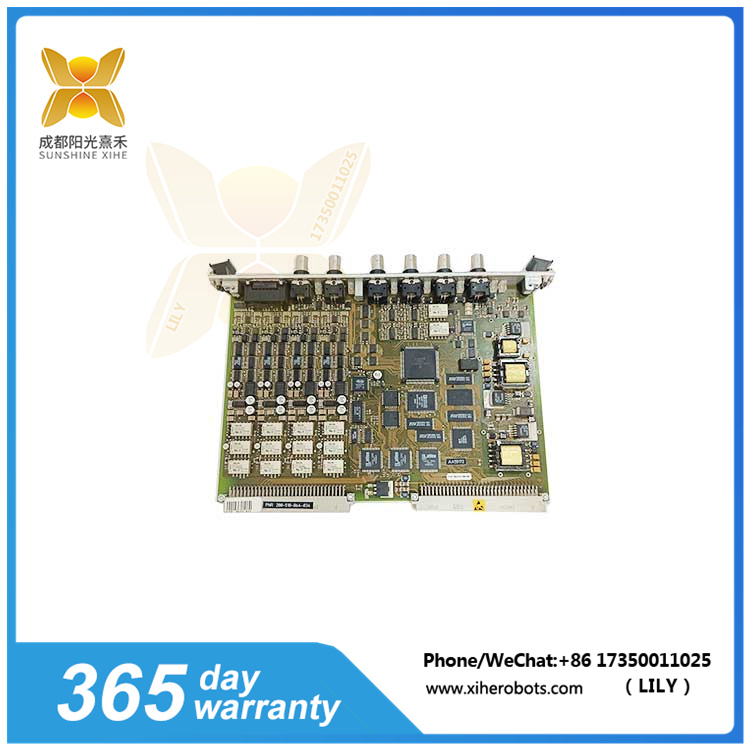

Product details: VM600 MPC4 200-510-100-034 Vibro meter high-precision vibration monitoring instrument
Multi channel measurement function, capable of simultaneously monitoring 4 dynamic signal inputs and 2 speed/phase signal inputs.
The dynamic signal input is fully programmable and can receive acceleration, velocity, displacement signals or other signals.
Provide multiple physical measurement options, such as relative axis vibration, absolute axis vibration, SMAX, eccentricity, axis displacement, absolute and relative expansion, dynamic pressure, etc.
The speed/phase input can be connected to various speed sensors (such as eddy current, reluctance, TTL, etc.) and supports fractional speed ratios.
The digital processing capabilities are powerful, including digital filtering, digital integration or differentiation, digital modulation (root mean square, average, peak to peak, etc.), frequency order tracking (amplitude and phase), and sensor gap measurement.
Analog quantity can be selected from 0-10V or 4-20mA, output from the matching IOC4T card.
The switch quantity can be output using the matching IOC4T built-in relay or RLC16 and IRC4 relay cards in other slots.
The MPC4 card has a self checking function, built-in sensor OK monitoring and channel fault and alarm status monitoring, which can determine sensor, preamplifier, cable fault, channel fault, and alarm, etc., and display them on the LED indicator light on the front panel of the MPC4.
Product details and parameters: VM600 MPC4 200-510-100-034 Vibro meter high-precision vibration monitoring instrument
Input channels: 4 dynamic signal inputs and 2 speed/phase signal inputs.
Frequency range: 0.5Hz to 10kHz.
Measurement range: 0.1 mm/s to 50 mm/s.
Data sampling rate: 256 times per second.
Working temperature: -20 ° C to 60 ° C.
Storage capacity: 10000 data points.
Supply voltage: 24VDC.
Size: Approximately 210 x 170 x 75 mm.
Weight: Approximately 1.5 kg.
Protection level: IP20.
Signal input: BNC connector.
Communication interface: RS-485.
VM600 MPC4 200-510-100-034 Vibro meter Application Fields:

VM600 MPC4 200-510-100-034 is mainly used in the fields of vibration monitoring and fault diagnosis of rotating machinery in industries such as power, petroleum, chemical, steel, and cement.

The design of this instrument takes into account the adaptability of industrial environments, with good resistance to vibration and durability, and can work stably for a long time under harsh conditions. It also supports data exchange with various external systems, such as databases, messaging, and queuing systems, for the purpose of data storage, analysis, and processing.
