VMIVME-1150 64位光耦合數字輸入板適用于需要高隔離度、靈活性和高抗噪性的工業自動化、過程控制、監測和測量等領域。它可以作為各種機械設備和系統中的關鍵組件，用于接收和處理數字輸入信號。

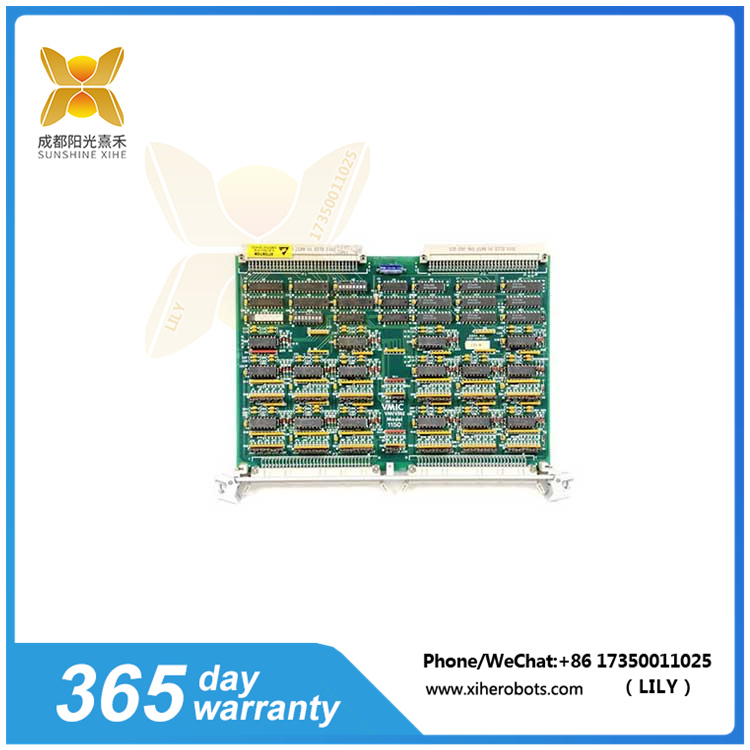

Product Details: VMIVME-1150 GE 64 bit Optical Coupled Digital Input Board
The circuit board address is selected by the onboard DIP switch.
It can run in any available slot on the VME bus backplane except for slot 1.
Provide a jumper to support short supervised or non privileged short I/O access options.
At the factory, it is configured for short monitoring I/O access.
Product details and parameters: VMIVME-1150 GE 64 bit optically coupled digital input board
Input port:
64 optically coupled digital input terminals.
Eight input ports, each eight bits wide, arranged as eight consecutive 8-bit read-only registers.
Each 8-bit port can be individually addressed at any position within an 8-bit or 16 bit boundary.
Input range:
Voltage input range: 5V to 48VDC.
Supports voltage or current source input options.
Isolation degree:
High isolation, providing a continuous voltage of 1.000V and a pulse voltage of 7.500V.
Data transmission:
Supports 8-bit or 16 bit data transmission.
The maximum access time is 250 nanoseconds.
Input options:
Filter input options.
Contact closure sensing.
Positive or negative true input options (assert input based on whether current flows through the LED in the optocoupler).
Interfaces and connectors:
Dual I/O connectors.
High reliability DIN compatible input connector.
Dimensions of dual Euro cards with front panel.
Access Permissions:
Support non privileged or regulated I/O access permissions.

VMIVME-1150 GE application areas:

The VMIVME-1150 64 bit optically coupled digital input board is suitable for industrial automation, process control, monitoring, and measurement fields that require high isolation, flexibility, and high noise resistance. It can serve as a key component in various mechanical equipment and systems, used for receiving and processing digital input signals.
