VMIVME-2170A 32位光耦合數字輸出板特別適用于需要高隔離度、抗噪能力和靈活配置的工業自動化、過程控制、數據采集和傳輸?shù)阮I(lǐng)域。它可以在高電氣噪聲環境中穩定工作，消除系統接地回路，確保數字信號的準確傳輸。

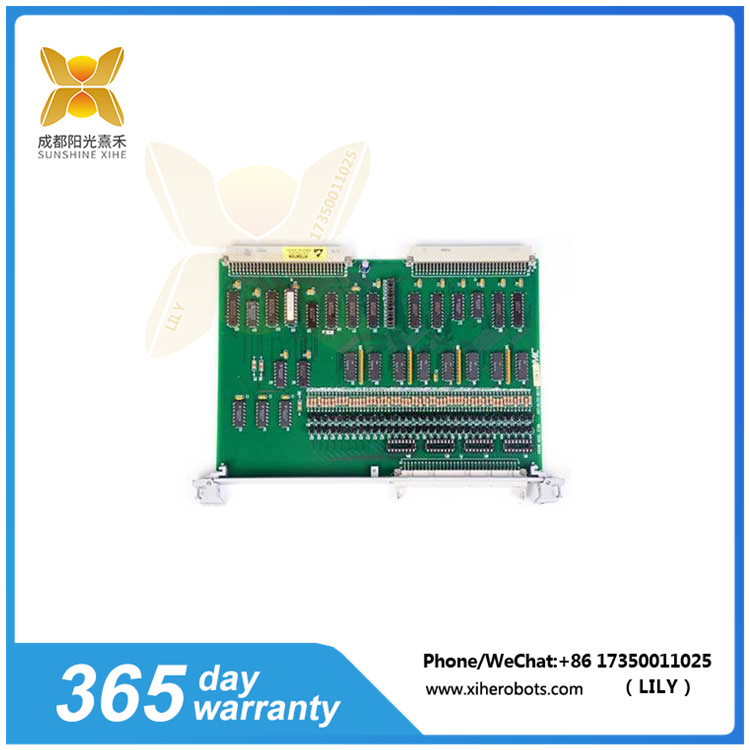

Product Details: VMIVME-2170A GE 32-bit Optical Coupled Digital Output Board
Optical coupling digital output:
Equipped with 32 optically isolated digital output channels, high isolation is achieved through optocouplers to prevent electrical noise and ground circuit interference.
Supports source output or sink current output function, provides low current option, and the output current range can be from 2.5 mA to 300 mA.
VME bus compatibility:
Adopting a dual Eurocard external size PC board, fully compatible with VME bus, providing necessary address decoding and data transmission control logic.
Acceptable 8-bit and 16 bit data transmission, supporting two types of data transmission: monitoring data and non privileged data.
Isolation and protection:
High isolation potential, continuous isolation voltage up to 1000 V, pulse isolation voltage up to 6000 V, providing excellent electrical isolation performance.
The maximum sustained potential between channels is 500 V, ensuring independence between each channel.
Flexibility and configuration:
On site configurable pull-up resistors allow users to adjust output characteristics according to their actual needs.
The onboard DIP switch provides 14 bit board address selection and supports flexible address configuration.
Provide non privileged or regulated short I/O transfer options, which can be selected through jumpers.
Product details and parameters: VMIVME-2170A GE 32-bit optically coupled digital output board
Size: Double height Eurocard, height 9.2 inches (233.4 millimeters), depth 6.3 inches (160 millimeters), thickness 0.8 inches (20.3 millimeters).
Working temperature range: 0 to+55 ° C, storage temperature range: -20 to+85 ° C.
Humidity: The working humidity range is 20% to 80%, with no condensation.

VMIVME-2170A GE application areas:

The VMIVME-2170A 32-bit optically coupled digital output board is particularly suitable for industrial automation, process control, data acquisition, and transmission fields that require high isolation, noise resistance, and flexible configuration. It can work stably in high electrical noise environments, eliminate system grounding circuits, and ensure accurate transmission of digital signals.
