VMIVME-4150隔離式12位模擬輸出板廣泛應用于工業(yè)自動化、過程控制、監(jiān)測和測量等領域，特別是在需要高精度模擬信號輸出和電氣隔離的場合。

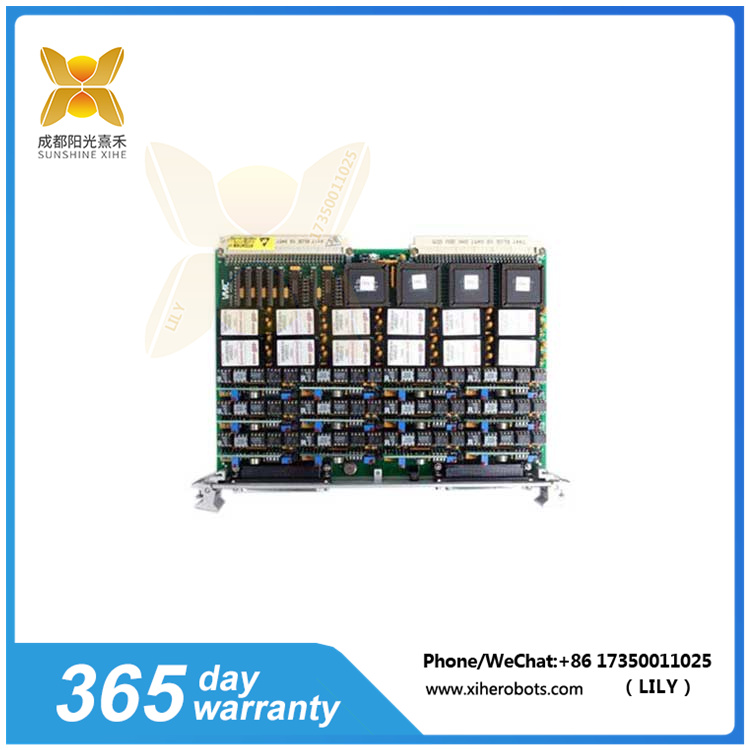

Product details: VMIVME-4150 GE isolated 12 bit analog output board
Analog output channel:
Provide 12 isolated analog output channels, each electrically isolated from other channels and the VME bus.
The isolation voltage can reach up to 1000 Vpk, ensuring electrical isolation between channels and between channels and the bus.
resolving power:
12 bit resolution, providing high-precision analog signal output.
Output range:
The bipolar voltage output range can be selected as 2.5V, 5V, or 10V.
The output range of unipolar voltage can be selected as 0 to 2.5V, 0 to 5V, or 0 to 10V.
The current output can be selected as 4 to 20mA, 0 to 20mA, or 5 to 25mA.
Load capacity:
The load capacity of the voltage output is 10mA throughout the entire 10V range.
Output accuracy:
The voltage output accuracy is 0.05%.
The output accuracy of the current loop is 0.08%.
Configuration flexibility:
Supports 4, 8, or 12 channel configurations to meet different application requirements.
Optical data coupling provides complete current isolation.
Product details and parameters: VMIVME-4150 GE isolated 12 bit analog output board
Static read back data registers simplify program control.
The front panel entrance connected on-site is convenient for operation and maintenance.
The programmable connection/disconnection operation of voltage output is helpful for system testing
VMIVME-4150 GE application areas:

The VMIVME-4150 isolated 12 bit analog output board is widely used in industrial automation, process control, monitoring, and measurement fields, especially in situations that require high-precision analog signal output and electrical isolation.
