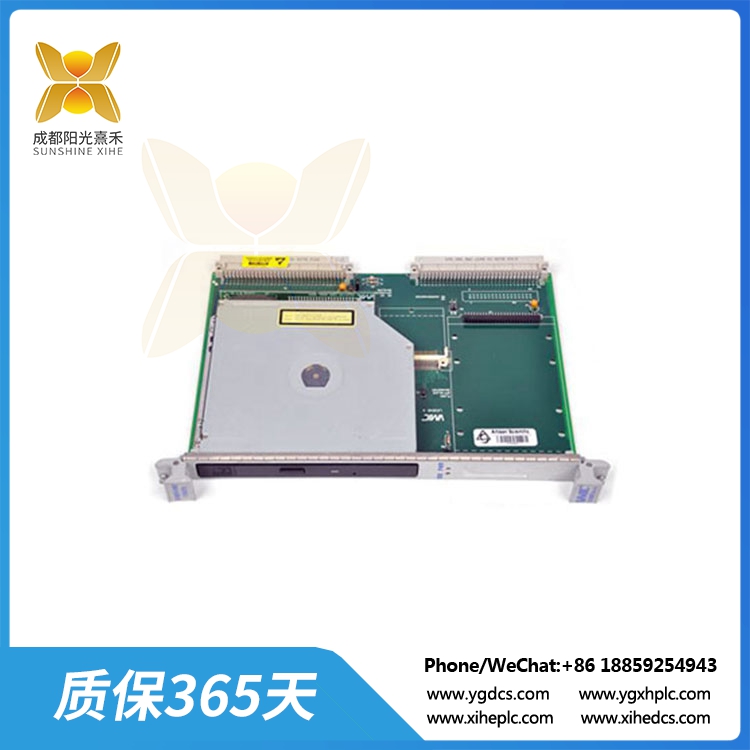

VMIVME-7459 單槽VME IDE CD-RW模塊

特點:
Vme ide cd / cd – rw
可選硬盤模塊或CompactFlash
單插槽(4 HP) 6U外形因素
連接通過VME P2連接器

描述

VMIVME-7459 單槽VME IDE CD-RW模塊

特點:
Vme ide cd / cd – rw
可選硬盤模塊或CompactFlash
單插槽(4 HP) 6U外形因素
連接通過VME P2連接器
GE Fanuc / VMIC VMIVME-7459單槽VME IDE CD-RW/硬盤驅動器模塊是一款多功能大容量存儲模塊,適用于GE Fanuc嵌入式系統的VME處理器系列。VMIVME-7459有多種配置,包括可寫光盤和高達80GB的硬盤存儲。該組件將支持一個光盤驅動器和一個硬盤驅動器,用于連接到單個IDE接口。CD- rw驅動器選項與照片CD, CD- i,視頻CD,增強CD, CD PLUS, CD- rom – xa, CD- da和CD- rw兼容。支持一次性光盤、一次性軌、多會話和增量包寫入格式。

CD- rom驅動器選項支持多會話光盤,并與照片CD, CD- i,視頻CD,增強CD和CD PLUS兼容。DVD-ROM選項允許用戶在VMIVME-7459上提供最好和最通用的選項。DVD-ROM允許用戶讀取DVD-ROM、DVD-R和DVD-RW媒體,并為用戶提供CD-RW功能和標準CD-ROM功能。

IDE硬盤是可選的。提供跳線來配置設備作為IDE主設備或從設備。這使得VMIVME-7459在應用中具有靈活性,因為它可以作為純cd模塊或純硬盤模塊與其他GE發那科存儲模塊一起使用。例如,完全填充的VMIVME-7459可以與僅軟盤的VMIVME-7452模塊一起使用。

VMIVME-7459通過VME P2自定義引腳與SBC (single board computer) IDE接口建立連接。SBC模塊的類型和VME機箱的物理布置決定了可選電纜的要求。對于具有單個槽位SBC的典型應用程序,VMIVME-7459在物理上放置在SBC附近。單板之間的連接采用雙槽位VMXC-2電纜組件,或為容納軟盤模塊,采用三槽位VMXC-3電纜組件。對于雙槽GE發那科SBC應用或VMIVME-7459不靠近SBC的安裝,建議使用14英寸VMXC-H電纜組件。

VMIVME-7459 單槽VME IDE CD-RW模塊

Features:
VME IDE CD/CD-RW
Optional Hard Disk Drive Module or CompactFlash
Single Slot (4 HP) 6U Form Factor
Connection Via VME P2 Connector
The GE Fanuc / VMIC VMIVME-7459 Single-Slot VME IDE CD-RW/Hard Drive Module is a versatile mass storage module for use with GE Fanuc Embedded Systems’ line of VME processors. The VMIVME-7459 is available in a variety of configurations that include writable compact disc and up to 80GB hard disk storage. The assembly will support one compact disc drive and one hard disk drive for connection to a single IDE interface. The CD-RW drive option is compatible with Photo CD, CD-I, Video CD, Enhanced CD, CD PLUS, CD-ROM-XA, CD-DA and CD-RW. Disc-At-Once, Track-At-Once, Multisession and Incremental Packet Writing formats are supported.

The CD-ROM drive option supports multisession discs and is compatible with Photo CD, CD-I, Video CD, Enhanced CD and CD PLUS. The DVD-ROM option allows users to have the best and most versatile option provided on the VMIVME-7459. The DVD-ROM allows users to read DVD-ROM, DVD-R and DVD-RW media as well as providing the user with CD-RW capabilities and standard CD-ROM capability.

An IDE hard disk is optional. Jumpers are provided to configure either device as IDE master or slave. This permits the VMIVME-7459 flexibility in applications as it may be used as a CD-only module or a hard disk-only module in conjunction with other GE Fanuc storage modules. The fully populated VMIVME-7459 may be used with a floppy disk-only VMIVME-7452 module, for example.

The VMIVME-7459 establishes connection to the single board computer (SBC) IDE interface through the VME P2 user-defined pins. The type of SBC module and physical arrangement of the VME chassis determine the optional cable requirement. For a typical application with a single slot SBC, the VMIVME-7459 is physically placed adjacent to the SBC. Connection between boards is with a two-slot VMXC-2 cable assembly, or to accommodate a floppy disk module, with a three-slot VMXC-3 cable assembly. For application with a double slot GE Fanuc SBC or installations where the VMIVME-7459 is not placed adjacent to the SBC, the 14-inch VMXC-H cable assembly is recommended.
