描述

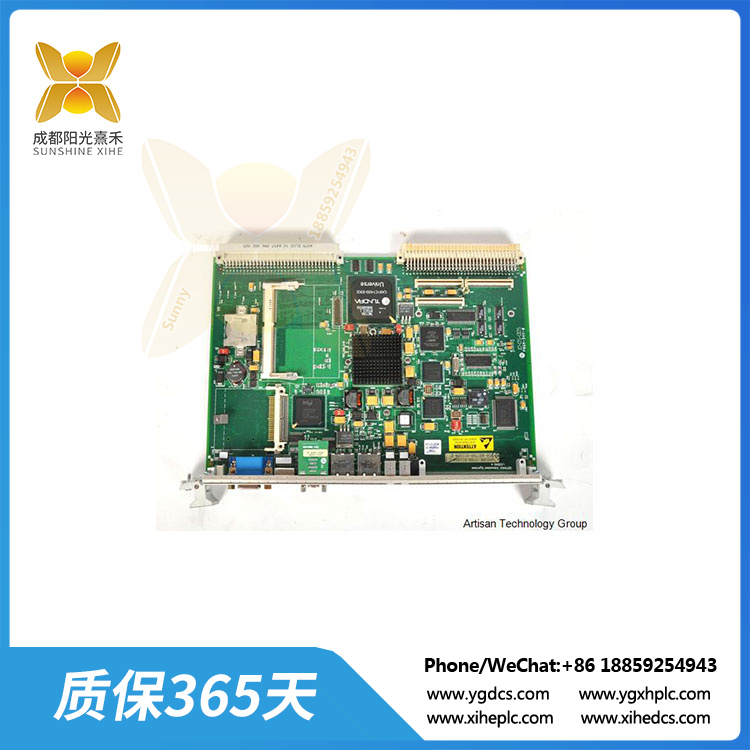

VMIVME-7700 基于超低電壓賽揚處理器的全功能單板計算機

VMIVME-7700是一款基于超低電壓賽揚處理器的全功能單板計算機（SBC），專為工業自動化和控制系統設計。這款模塊憑借其高性能、穩定性和可靠性，在工業自動化領域中具有廣泛的應用。

VMIVME-7700采用了英特爾超低電壓賽揚400 MHz/650 MHz處理器，結合單槽、被動冷卻、Eurocard外形規格，以及英特爾815E芯片組的先進技術，使其具有出色的處理能力和性能。此外，它還具備一個透明的PCI到VMEbus橋，允許板在多CPU系統中充當系統控制器或外設CPU，從而滿足復雜控制系統的需求。

在內存方面，VMIVME-7700接受一個144引腳SDRAM SODIMM，最大容量為512兆字節。板載DRAM通過PCI到VMEbus橋與VMEbus共享，可由本地處理器尋址，也可由另一個VMEbus主控器尋址。這種共享內存的設計使得在多處理器系統中可以更加高效地利用內存資源。

VMIVME-7700還具有豐富的配置選項和功能。它配備了板載BIOS設置程序，可以控制許多配置選項，如硬盤驅動器類型等。這些選項保存在一個特殊的非易失性、電池支持的存儲芯片中，確保了配置的持久性和穩定性。

此外，VMIVME-7700還支持多種外設和接口，如IDE閃存、可編程定時器、非易失性SRAM等，使得它可以方便地與其他設備和系統進行集成和通信。同時，它還符合VMEbus規范Rev. C.1，確保了與其他VMEbus設備的兼容性和互操作性。

在可靠性方面，VMIVME-7700同樣表現出色。它采用了高品質的組件和經過嚴格測試的電路設計，以確保長時間穩定運行和卓越的耐用性。此外，該模塊還具備多種保護措施，如過壓、過流保護等，能夠在異常情況下自動采取保護措施，避免設備損壞或事故發生。

總的來說，VMIVME-7700是一款功能強大、性能卓越的全功能單板計算機。它的高性能處理器、共享內存設計、豐富的配置選項和功能以及出色的可靠性，使其在工業自動化和控制系統中具有廣泛的應用前景。無論是用于數據采集、控制邏輯實現還是設備監控，VMIVME-7700都能提供出色的性能和可靠性，為工業自動化的發展貢獻力量。

VMIVME-7700 基于超低電壓賽揚處理器的全功能單板計算機

The VMIVME-7700 is a full-featured single-board computer (SBC) based on an ultra-low voltage Celeron processor, designed for industrial automation and control systems. With its high performance, stability and reliability, this module has a wide range of applications in the field of industrial automation.

The VMIVME-7700 uses Intel’s ultra-low voltage Celeron 400 MHz/650 MHz processor, combined with single-slot, passive cooling, Eurocard form factor specifications, and the advanced technology of Intel’s 815E chipset, giving it outstanding processing power and performance. In addition, it has a transparent PCI to VMEbus bridge, allowing the board to act as a system controller or peripheral CPU in multi-CPU systems to meet the needs of complex control systems.

In terms of memory, the VMIVME-7700 accepts a 144-pin SDRAM SODIMM with a maximum capacity of 512 megabytes. The on-board DRAM is shared with the VMEbus via the PCI to VMEbus bridge and can be addressed either by the local processor or by another VMEbus master. This shared memory design enables more efficient utilization of memory resources in multi-processor systems.

The VMIVME-7700 also comes with a wealth of configuration options and features. It comes with an onboard BIOS setup program that controls many configuration options, such as hard drive type, etc. These options are stored in a special non-volatile, battery-supported memory chip, ensuring the durability and stability of the configuration.

In addition, the VMIVME-7700 supports a variety of peripherals and interfaces, such as IDE flash memory, programmable timers, non-volatile SRAM, etc., making it easy to integrate and communicate with other devices and systems. It also complies with VMEbus specification Rev.C.1, ensuring compatibility and interoperability with other VMEbus devices.

In terms of reliability, the VMIVME-7700 also performs well. It uses high-quality components and a rigorously tested circuit design to ensure long-term stable operation and excellent durability. In addition, the module also has a variety of protective measures, such as overvoltage and overcurrent protection, which can automatically take protective measures in abnormal circumstances to avoid equipment damage or accidents.

Overall, the VMIVME-7700 is a fully functional single-board computer with great power and performance. Its high-performance processor, shared memory design, rich configuration options and features, and excellent reliability make it a promising application in industrial automation and control systems. Whether used for data acquisition, control logic implementation or equipment monitoring, the VMIVME-7700 provides outstanding performance and reliability, contributing to the development of industrial automation.
