VMIVME-7740 Abaco系統/ VMIC
VMIC的VMIVME-7740是一款完整的基于奔騰III處理器的計算機，具有單歐洲卡結構的額外優勢，并完全兼容VMEbus規范Rev. C.1。VMIVME-7740具有先進的VMEbus接口和雙端口到VMEbus的RAM，是多處理器應用的理想選擇。單個CPU板作為標準的PC/AT，執行PC/AT類型的上電自檢，然后啟動MS-DOS, Windows 95, Windows NT或任何其他PC兼容的操作系統。本手冊第3章討論了VMIVME-7740的標準PC功能。
VMIVME-7740還可作為VMEbus控制器，并通過板載PCI-to-VMEbus橋接和Endian轉換硬件與其他VMEbus模塊進行交互。
VMIVME-7740可以作為VMEbus備板訪問。VMEbus功能可通過編程VMIVME-7740的PCI-to-VMEbus橋根據參考定義在本卷和/或在第二卷專用于可選的PCI-to-VMEbus接口板標題:VMIVME-7740 Tundra Universe II?基于VMEbus接口產品手冊(文檔號500-007740-001)。
在本手冊中，所有提到宇宙II的地方都指的是宇宙IIB。VMIVME-7740程序員可以簡單地通過鏈接到VMEbus中斷和控制函數庫來快速輕松地控制所有VMEbus函數。
該庫可與VMIC的VMISFT-9420 IOWorks Access軟件一起使用，適用于Windows NT用戶。
VMIVME-7740還提供了典型的PC/ at兼容SBC功能之外的功能，包括通用定時器、可編程看門狗定時器、可啟動閃存盤系統和非易失性SRAM。這些特性使該單元成為嵌入式應用的理想選擇。這些非標準的PC/AT功能將在本手冊的第4章中討論。
VMIVME-7740 Abaco系統/ VMIC

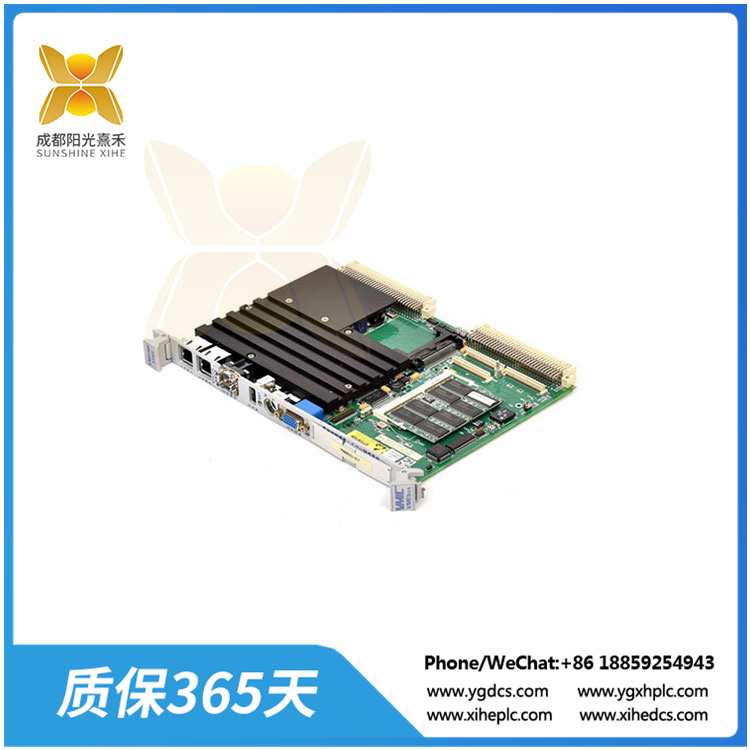

VMIC’s VMIVME-7740 is a complete Pentium III processor-based computer with the additional benefits of single Eurocard construction and full compatibility with the VMEbus Specification Rev. C.1. The VMIVME-7740, with advanced VMEbus interface and RAM that is dual-ported to the VMEbus, is ideal for multiprocessor applications. The single CPU board functions as a standard PC/AT, executing a PC/AT-type power-on self-test, then boots up MS-DOS, Windows 95, Windows NT, or any other PC compatible operating system. The standard PC features of the VMIVME-7740 are discussed in Chapter 3 of this manual.
The VMIVME-7740 also operates as a VMEbus controller and interacts with other VMEbus modules via the on-board PCI-to-VMEbus bridge and the Endian conversion hardware.
The VMIVME-7740 may be accessed as a VMEbus slave board. The VMEbus functions are available by programming the VMIVME-7740’s PCI-to-VMEbus bridge according to the references defined in this volume and/or in the second volume dedicated to the optional PCI-to-VMEbus interface board titled: VMIVME-7740 Tundra Universe II?-Based VMEbus Interface Product Manual (document No. 500-007740-001).
Throughout this manual, all references to the Universe II refer to the Universe IIB. The VMIVME-7740 programmer may quickly and easily control all the VMEbus functions simply by linking to a library of VMEbus interrupt and control functions.
This library is available with VMIC’s VMISFT-9420 IOWorks Access software for Windows NT users.
The VMIVME-7740 also provides capabilities beyond the features of a typical PC/AT-compatible SBC including general-purpose timers, a programmable Watchdog Timer, a bootable flash disk system, and nonvolatile SRAM. These features make the unit ideal for embedded applications. These nonstandard PC/AT functions are discussed in Chapter 4 of this manual.
