描述

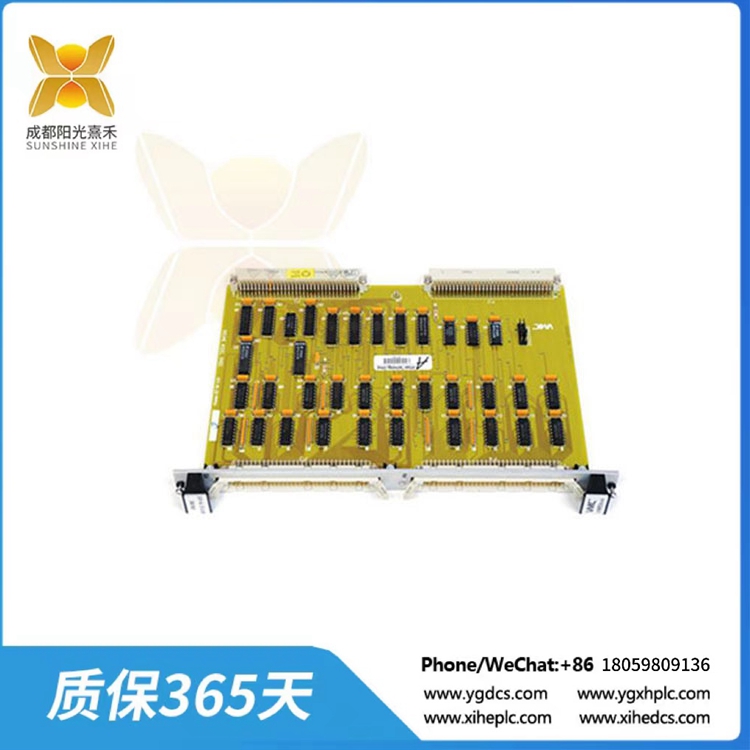

VMIVME-M-485 VME總線的中繼模塊

產品描述
vmivme – m – 485

該模塊是VMIC系列器件的一部分，最初由通用電氣工業自動化生產分公司設計、制造和批量生產。然而，后來，該系列隨后被阿巴科系統公司收購并生產。

該型號在這里列出的VMIVME-M-485，重復L-485，長線中繼器鏈路模塊。該單元具有一系列獨特的功能，如單寬VME總線連接端口，用于該單元長線中繼器的主中繼器模塊，以及一組DIN類型輸入和輸出連接器。

VMIVME-M-485模塊被設計為VMIC長線中繼器鏈路子系列產品中的兩個單元之一。這些模型由兩個板組組成:其中一個是VMIVME-Repeat-S-485模型，另一個是這個。這些板串聯在一起，它們被稱為這樣，因為與主從VMEbus機箱相關聯。

VMIVME-M-485單元還設計用于容納雙Eurocard形狀因子模塊，并且能夠支持16位和24位尋址，以及8位和16位數據傳輸。

它完全能夠支持所有七個可用的中斷級別。在5英尺長的電纜連接下，傳輸延遲約為400納秒。對于連接較長的電纜，每英尺額外有4納秒。)

設備運行時的環境溫度范圍為0 ~ 55℃，存儲時的環境溫度范圍為-20 ~ 85℃。

VMIVME-M-485 VME總線的中繼模塊

Product Description
VMIVME-M-485

This module is a part of the VMIC lineup of devices, initially designed, built and mass produced by the industrial automation production branch of General Electric. Later however, the series was then acquired and produced by Abaco Systems.

This model listed here the VMIVME-M-485, a Repeat L-485, long line Repeater Link Module. This unit comes with a series of unique features such as the single wide VME bus attachment port, a Master Repeater Module for the unit’s long line repeater, as well as a set of DIN type Input and Output connectors.

The VMIVME-M-485 module is designed as one of two units in the VMIC long line repeater link subseries of products. These models are built of a two board set: one of them being the VMIVME-Repeat-S-485 model, and the other, this one. These boards in tandem are them referred to the as such because of the associated with the master and slave VMEbus chassis.

The VMIVME-M-485 unit also is designed to accommodate a double Eurocard form factor module, and is able to support both 16 bit and 24 bit addressing, as well as 8 bit and 16 bit data transfers.

It is fully capable of supporting all seven of the available interrupt levels. There is a propagation delay of approximately 400 nanoseconds, with a 5 foot cable connected. For longer cables connected, there is an extra 4 nanoseconds per foot.)

The environmental temperature range of the unit ranges between 0 and 55 degrees C while operational, and between -20 and 85 degrees C while powered down in storage.
