描述

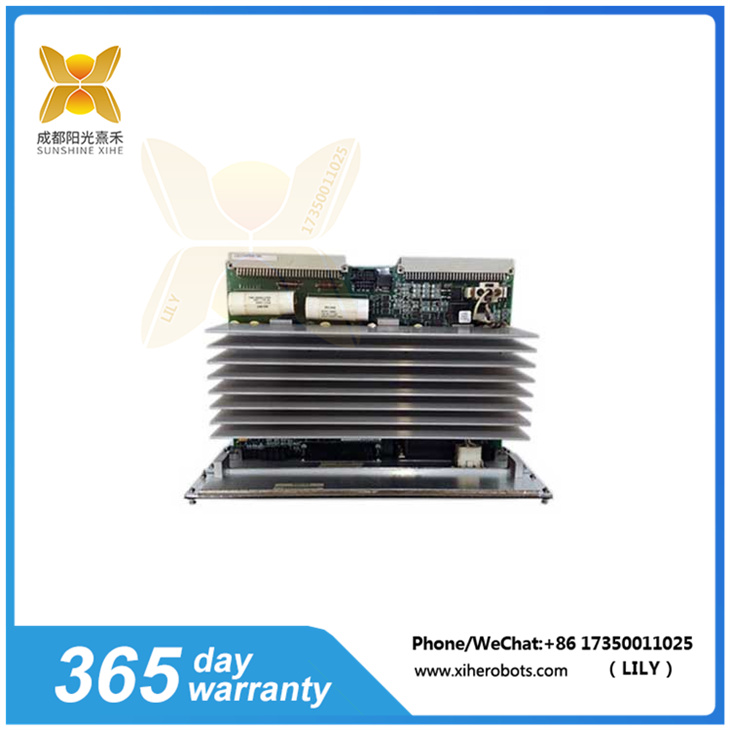

產品細節說明：VPROH2B IS215VPROH2BC GE 汽輪機保護板

1. 緊急超速保護：VPROH2B保護板的核心功能是提供渦輪機的緊急超速（EOS）保護。它通過監測渦輪機的轉速，并在超過預設的安全限制時觸發緊急停機，以防止設備損壞或安全事故。
2. 冗余設計：IS215VPROH2BC由三個冗余的VPRO板組成，這種設計確保了即使其中一個板出現故障，其他板也能繼續提供保護，從而提高了系統的可靠性和安全性。
3. 速度控制和監測：保護板使用六個無源磁性速度傳感器來監測渦輪機的速度，并通過控制邏輯和算法實現精確的速度控制和超速保護。它還具有熱電偶和模擬輸入，用于監測燃?xì)廨啓C(jī)排氣溫度等關鍵參數。
4. 跳閘功能：VPROH2B保護板與TREG和TRPG端子板配合，管理多達12個繼電器，通過投票輸入操作三個跳閘電磁閥。這些繼電器和電磁閥共同協作，以實現渦輪機的緊急跳閘功能。
5. 通信能力：保護板具有以太網連接，支持IONet與控制模塊的通信。這使得保護板能夠與其他系統組件進行數據傳輸和指令接收，增強了整個控制系統的集成性和協調性。

GE VPROH2B IS215VPROH2BC 汽輪機保護板是GE公司為其燃?xì)廨啓C(jī)和蒸汽輪機控制系統提供的一種高性能、高可靠性的保護組件。它通過冗余設計、精確的速度控制和監測、以及強大的通信能力，為渦輪機提供了全面的緊急超速保護和緊急停機功能。

產品詳情參數 ：VPROH2B IS215VPROH2BC GE 汽輪機保護板

• 電源：VPROH2B保護板使用來自機柜PDM的125V直流電壓，并內部轉換為5V和28V直流電壓，為各個組件供電。
• 指示燈：前面板上有LED指示燈，用于顯示保護板的狀態（如RUN、FAIL和診斷警報）。
• 接口：包括電源插頭、以太網ID連接器、IONet端口（以太網）和并行端口等，用于連接外部設備和系統。

VPROH2B IS215VPROH2BC 應用領域：

GE VPROH2B IS215VPROH2BC 汽輪機保護板廣泛應用于各種燃?xì)廨啓C(jī)和蒸汽輪機控制系統中，特別是在需要高可靠性和安全性保障的電力、石油和天然氣等行業。

Product detail description: VPROH2B IS215VPROH2BC GE turbine protection plate

Emergency overspeed protection: The core function of the VPROH2B protection board is to provide emergency overspeed (EOS) protection for the turbine. It monitors the speed of the turbine and triggers an emergency stop when exceeding preset safety limits to prevent equipment damage or safety accidents.

Redundant design: IS215VPROH2BC consists of three redundant VPRO boards, which ensures that even if one board fails, the other boards can continue to provide protection, thereby improving the reliability and safety of the system.

Speed control and monitoring: The protection board uses six passive magnetic speed sensors to monitor the speed of the turbine, and achieves precise speed control and overspeed protection through control logic and algorithms. It also has thermocouples and analog inputs for monitoring key parameters such as gas turbine exhaust temperature.

Trip function: The VPROH2B protection board works in conjunction with the TREG and TRPG terminal boards to manage up to 12 relays and operate three trip solenoid valves through voting inputs. These relays and solenoid valves work together to achieve emergency tripping of the turbine.

Communication capability: The protection board has Ethernet connection and supports communication between IONet and control modules. This enables the protection board to transmit data and receive instructions with other system components, enhancing the integration and coordination of the entire control system.

The GE VPROH2B IS215VPROH2BC turbine protection board is a high-performance and highly reliable protection component provided by GE for its gas and steam turbine control systems. It provides comprehensive emergency overspeed protection and emergency shutdown functions for the turbine through redundant design, precise speed control and monitoring, and powerful communication capabilities.

Product details and parameters: VPROH2B IS215VPROH2BC GE turbine protection board
Power supply: The VPROH2B protection board uses 125V DC voltage from the cabinet PDM and internally converts it into 5V and 28V DC voltage to power various components.
Indicator light: There are LED indicator lights on the front panel to display the status of the protection board (such as RUN, FAIL, and diagnostic alarms).
Interface: including power plug, Ethernet ID connector, IONet port (Ethernet), and parallel port, used to connect external devices and systems.
VPROH2B IS215VPROH2BC application areas:

The GE VPROH2B IS215VPROH2BC turbine protection plate is widely used in various gas and steam turbine control systems, especially in industries such as electricity, oil, and natural gas that require high reliability and safety assurance.
