  1. 型號：IS215VPROH2BC
  2. 用途：GE Mark VI 燃氣輪機控制系統的緊急渦輪保護板
  3. 主要功能：提供緊急超速保護、排氣過溫保護、模擬電流輸入、備份同步檢查保護等
分類：

描述

產品細節說明：VPROH2B IS215VPROH2BC GE 汽輪機保護板

  1. 緊急超速保護：
    • 該保護板通過三重冗余的VPRO板設計，確保在渦輪機超速時能夠迅速、可靠地觸發保護機制，防止渦輪機損壞。
  2. 排氣過溫保護：
    • 配備有九個熱電偶輸入，用于監測燃氣輪機的排氣溫度，一旦溫度超過安全限值，將自動觸發保護措施。
  3. 模擬電流輸入：
    • 提供三個模擬電流輸入，用于監控其他關鍵參數，如壓力、流量等，確保渦輪機的安全穩定運行。
  4. 備份同步檢查保護：
    • 該功能用于檢查渦輪機的同步狀態，確保其在正常工況下運行，避免因同步問題導致的故障或事故。
  5. 電源設計：
    • 每個VPRO板都配有自己的電源，使用來自機柜PDM的125V直流電壓，可產生5V直流電壓和28V直流電壓。這種設計提高了系統的可靠性和穩定性。
  6. 診斷指示燈：
    • VPRO前面板配有狀態指示燈，用于顯示板的運行狀態（如RUN、FAIL等），便于維修人員快速定位問題。

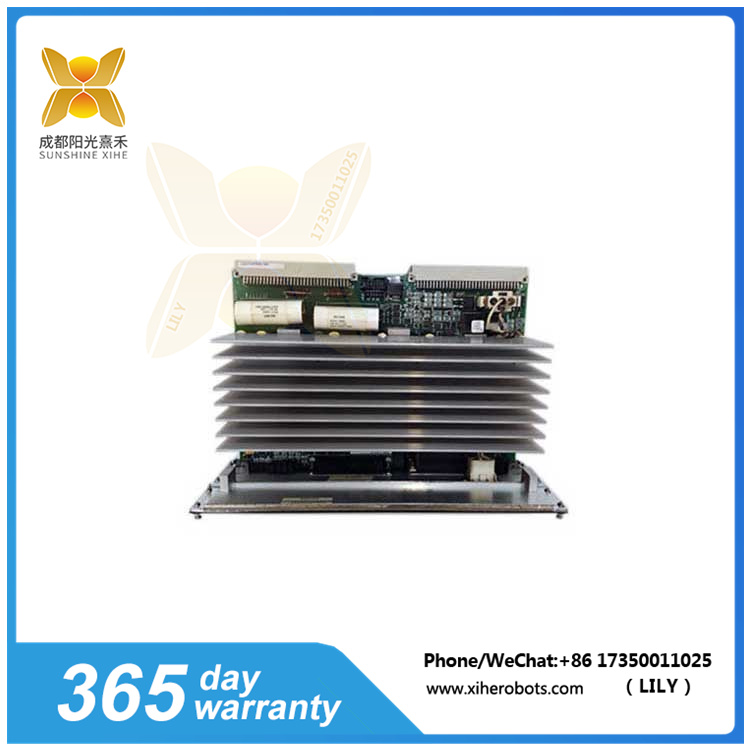

VPROH2B IS215VPROH2BC

產品詳情參數 ：VPROH2B IS215VPROH2BC GE 汽輪機保護板

  • 安裝步驟：
    1. 關閉VME I/O 處理器機架。
    2. 將V型板滑入并用手推入頂部和底部控制桿，固定板的邊緣連接器。
    3. 擰緊前面板頂部和底部的自攻螺釘。
    4. 打開VME 機架并查看前面板上的診斷指示燈。
  • 配置說明：
    • 根據具體的應用場景和需求，對VPROH2B IS215VPROH2BC進行必要的配置和編程，以實現所需的保護功能和監控效果。

VPROH2B IS215VPROH2BC GE? 應用領域：

VPROH2B IS215VPROH2BC 是一款功能強大、可靠性高的汽輪機保護板，通過其多重保護機制和精準監控功能，為燃氣輪機的安全穩定運行提供了有力保障。在電力、石化、冶金等行業中得到了廣泛應用，并獲得了用戶的一致好評。

Product Details: VPROH2B IS215VPROH2BC GE Turbine Protection Board
Emergency overspeed protection:
The protection board is designed with triple redundant VPRO board to ensure that the protection mechanism can be quickly and reliably triggered in case of turbine overspeed, preventing turbine damage.
Exhaust over temperature protection:
Equipped with nine thermocouple inputs, it is used to monitor the exhaust temperature of the gas turbine. Once the temperature exceeds the safety limit, protective measures will be automatically triggered.
Analog current input:
Provide three simulated current inputs for monitoring other key parameters such as pressure, flow rate, etc., to ensure the safe and stable operation of the turbine.
Backup synchronization check protection:
This function is used to check the synchronization status of the turbine, ensuring that it operates under normal conditions and avoiding faults or accidents caused by synchronization issues.
Power supply design:
Each VPRO board is equipped with its own power supply, which uses 125V DC voltage from the cabinet PDM to generate 5V DC voltage and 28V DC voltage. This design improves the reliability and stability of the system.
Diagnostic indicator light:
The front panel of VPRO is equipped with status indicator lights, which are used to display the running status of the board (such as RUN, FAIL, etc.), making it easy for maintenance personnel to quickly locate problems.
Product details and parameters: VPROH2B IS215VPROH2BC GE turbine protection board
Installation steps:
Close the VME I/O processor rack.
Slide the V-shaped board in and manually push in the top and bottom control rods to secure the edge connectors of the board.
Tighten the self tapping screws at the top and bottom of the front panel.
Open the VME rack and check the diagnostic indicator lights on the front panel.
Configuration Description:
Based on specific application scenarios and requirements, configure and program VPROH2B IS215VPROH2BC as necessary to achieve the required protection functions and monitoring effects.
VPROH2B IS215VPROH2BC GE Application Fields:

VPROH2B IS215VPROH2BC is a powerful and highly reliable turbine protection board that provides strong guarantees for the safe and stable operation of gas turbines through its multiple protection mechanisms and precise monitoring functions. It has been widely used in industries such as electricity, petrochemicals, and metallurgy, and has received unanimous praise from users.
