描述

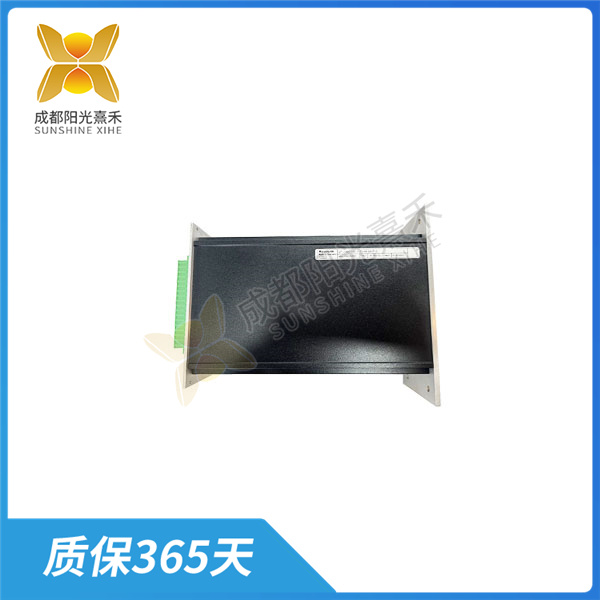

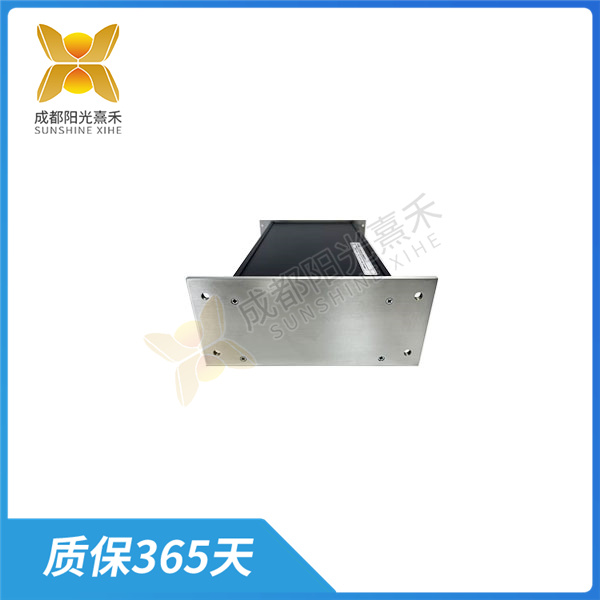

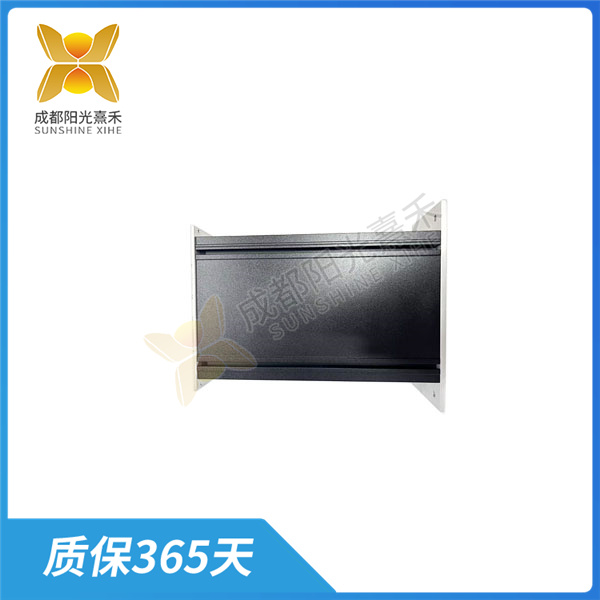

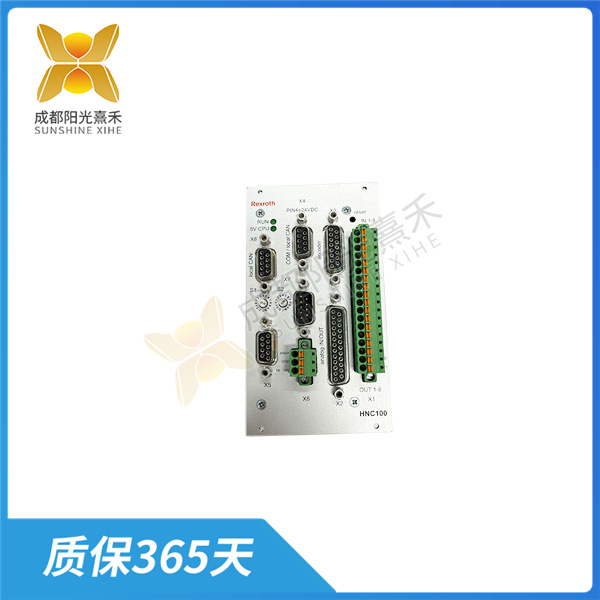

VT-HNC100-1-23W-08-P-0 符合液壓驅動閉環控制的特定要求

數字軸控制器是一種可編程的NC控制器，最多可控制四個軸。VT-HNC100-1-23W-08-P-0符合液壓驅動閉環控制的特定要求。數字軸控制器有VT-HNC100-1-23-W-08-0-0和VT-HNC100-2-30/N-I-00/000等型號。

數字軸控制器的工作原理基于數字信號處理器（DSP）和電力電子技術，實現對電機軸的精確控制。數字軸控制器通過將數字信號轉換為模擬信號，驅動電機軸進行相應的動作。

具體來說，VT-HNC100-1-23W-08-P-0 數字軸控制器的工作原理可以分為以下幾個步驟：

輸入信號處理：控制器接收到來自編碼器、傳感器等輸入設備的信號后，首先進行信號處理，包括信號放大、濾波、解碼等，以提取出電機軸的位置、速度、電流等參數。
控制算法處理：控制器根據輸入信號和預設的控制算法，計算出電機的控制量，如電壓、電流、頻率等?？刂扑惴梢愿鶕?jù)需要進行選擇和調整，以達到不同的控制效果。
輸出信號處理：控制器將計算出的控制量轉換為模擬信號，輸出給電機驅動器?？刂菩盘柦?jīng)過D/A轉換器轉換成模擬信號后，驅動電機軸進行相應的動作。
反饋控制：控制器不斷接收來自輸入設備的反饋信號，與預設的控制目標進行比較，根據比較結果調整控制量，實現電機的閉環控制。
數字軸控制器通過以上工作原理，可以實現高精度的位置控制、速度控制和力矩控制等，廣泛應用于數控機床、機器人、自動化生產線等領域。

VT-HNC100-1-23W-08-P-0 符合液壓驅動閉環控制的特定要求

The digital axis controller is a programmable NC controller that can control up to four axes. The VT-HNC100-1-23W-08-P-0 meets the specific requirements of hydraulic drive closed-loop control. Digital axis controllers are available in VT-HNC100-1-23-W-08-0-0 and VT-HNC100-2-30/N-I-00/000 models.

The working principle of the digital shaft controller is based on digital signal processor (DSP) and power electronics technology to realize the precise control of the motor shaft. The digital shaft controller converts the digital signal to the analog signal and drives the motor shaft to perform the corresponding action.

Specifically, the working principle of the VT-HNC100-1-23W-08-P-0 digital axis controller can be divided into the following steps:

Input signal processing: After receiving the signal from the encoder, sensor and other input devices, the controller first carries out signal processing, including signal amplification, filtering, decoding, etc., to extract the position, speed, current and other parameters of the motor shaft.
Control algorithm processing: According to the input signal and the preset control algorithm, the controller calculates the control amount of the motor, such as voltage, current, frequency, etc. The control algorithm can be selected and adjusted according to the need to achieve different control effects.
Output signal processing: The controller converts the calculated control quantity into an analog signal and outputs it to the motor driver. After the control signal is converted into an analog signal by the D/A converter, the motor shaft is driven to perform the corresponding action.
Feedback control: The controller constantly receives feedback signals from the input device, compares them with the preset control objectives, and adjusts the control amount according to the comparison results to achieve closed-loop control of the motor.
Through the above working principle, the digital axis controller can achieve high-precision position control, speed control and torque control, etc., which is widely used in CNC machine tools, robots, automatic production lines and other fields.
