描述

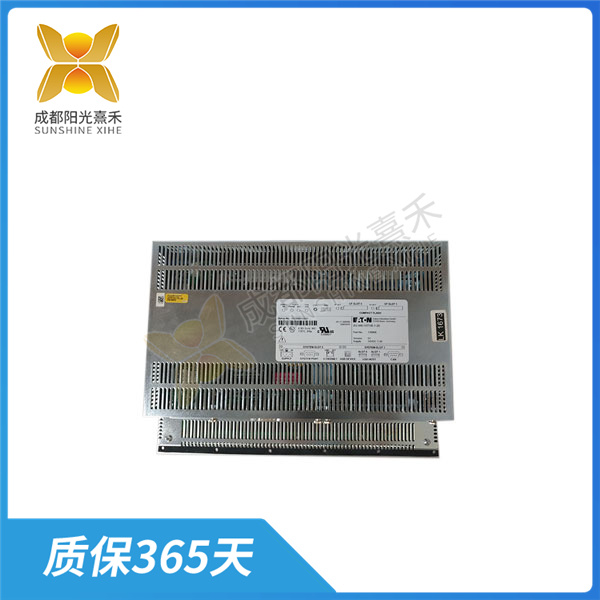

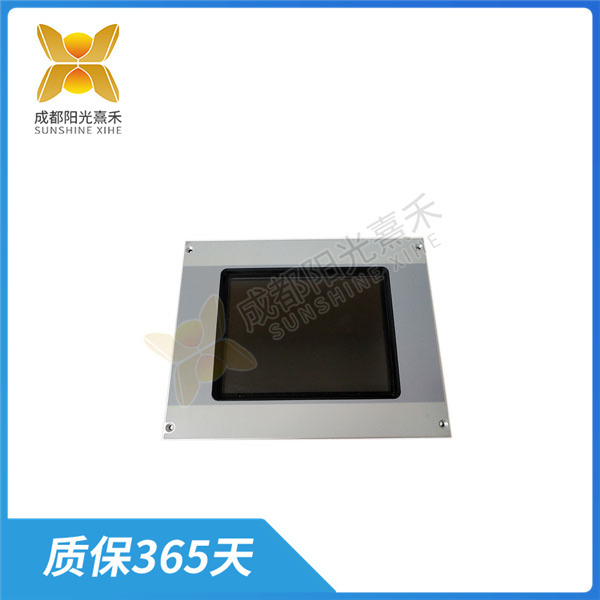

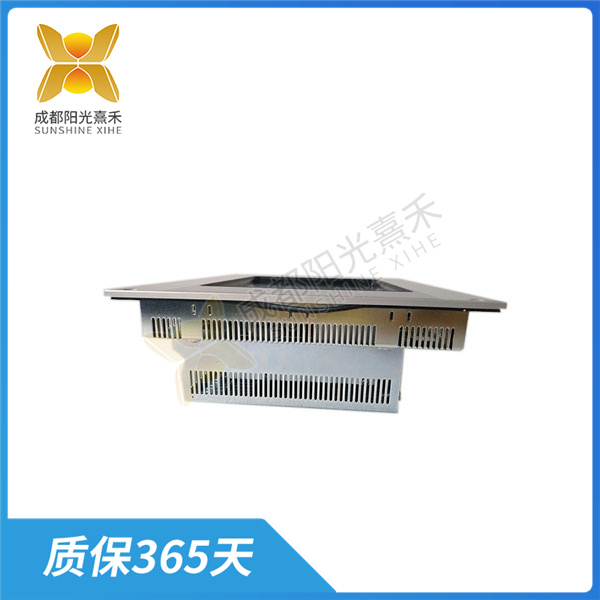

XV-440-10TVB-1-20 觸摸屏主要應用于公共信息的查詢、領導辦公室

觸摸面板是一種可接收觸頭等輸入信號的感應液晶顯示裝置，也被稱為“觸摸顯示屏”或“觸摸面板”。當觸碰顯示屏上的圖形按鍵時，XV-440-10TVB-1-20顯示屏上的觸感反饋機制可依據事先編程的程序驅動各種各樣的相互連接裝置。觸摸屏可以取代機械式的按鍵面板，并通過液晶顯示界面制造出栩栩如生的影音視頻效果。作為一種全新的電腦輸入設備，觸摸屏是現階段非常簡單、便捷、自然的人機交互方式。它賦予了多媒體系統全新的面貌，是富有吸引力的全新升級多媒體系統交互機器設備。觸摸屏主要應用于公共信息的查詢、領導辦公室、工業控制系統、國防指揮、電子游戲、KTV點歌點餐、信息化教學、房地產業預購等領域。使用觸摸屏?xí)r，用戶可以用手指或其他物塊觸摸安裝在顯示屏前端的觸摸屏，系統軟件會根據手指觸摸的標志或菜單部位來精準定位選擇信息輸入。

觸摸面板的工作原理是基于人體與面板的接觸產生的電容變化來實現的。下面以投射電容式觸摸屏為例進行說明：

投射電容式觸摸屏是由印在聚酯上的兩層透明菱形網格圖案組成，XV-440-10TVB-1-20在這兩層的中間又有一層光學透明的絕緣體。假設藍色菱形上有一堆電子，由于中間有一層透明的絕緣體，所以它們無法移動到黃色菱形上。然而這些電子卻能產生電場，使正電荷聚集在黃色菱形上，這種狀態也被稱為電容。

當把導電材料（如手指）靠近這個電容時，電場就會遭到破壞，從而改變黃色菱形上聚集的正電荷，使之遷移到手指上面來。這種變化會被手機處理器記錄下來，通過沿藍色菱形掃描電荷或電壓的變化來檢測出觸摸的位置。與此同時，黃色菱形序列也會被掃描。每列藍色菱形是連在一起的，每行黃色菱形也是如此，這樣就形成了由藍色菱形列和黃色菱形行組成的網格圖案。

XV-440-10TVB-1-20 觸摸屏主要應用于公共信息的查詢、領導辦公室

The touch panel is an inductive liquid crystal display device that can receive the input signal of the touch class, also known as the “touch display screen” or “touch panel”. When the graphical keys on the display are touched, the tactile feedback mechanism on the XV-440-10TVB-1-20 display drives a variety of interconnected devices according to a pre-programmed program. The touch screen can replace the mechanical button panel and create lifelike audio and video effects through the LCD display interface. As a new computer input device, touch screen is a very simple, convenient and natural way of human-computer interaction at this stage. It gives the multimedia system a new look, is an attractive new upgrade multimedia system interactive machine equipment. Touch screen is mainly used in public information inquiry, leadership office, industrial control system, national defense command, electronic games, KTV song ordering, information teaching, real estate industry pre-purchase and other fields. When using the touch screen, the user can touch the touch screen installed on the front of the display screen with a finger or other objects. The system software will accurately locate and select information input according to the sign or menu part touched by the finger.

The working principle of the touch panel is based on the capacitance changes generated by the contact between the human body and the panel. The following takes the projection capacitive touch screen as an example:

The projected capacitive touch screen is composed of two layers of transparent diamond mesh pattern printed on polyester, and the XV-440-10TVB-1-20 has another layer of optically transparent insulator in the middle of these two layers. Suppose you have a bunch of electrons on the blue diamond, but they can’t move onto the yellow diamond because there’s a transparent insulator in the middle. These electrons, however, produce an electric field that causes the positive charge to concentrate in a yellow diamond, a state also known as capacitance.

When a conductive material (such as a finger) is placed close to this capacitor, the electric field is destroyed, changing the positive charge that accumulates on the yellow diamond and causing it to migrate to the finger. This change is recorded by the phone’s processor, which detects the location of the touch by scanning for changes in charge or voltage along the blue diamond. At the same time, the yellow diamond sequence is also scanned. Each column of blue diamonds is linked together, as is each row of yellow diamonds, thus forming a grid pattern consisting of blue diamond columns and yellow diamond rows.
