描述

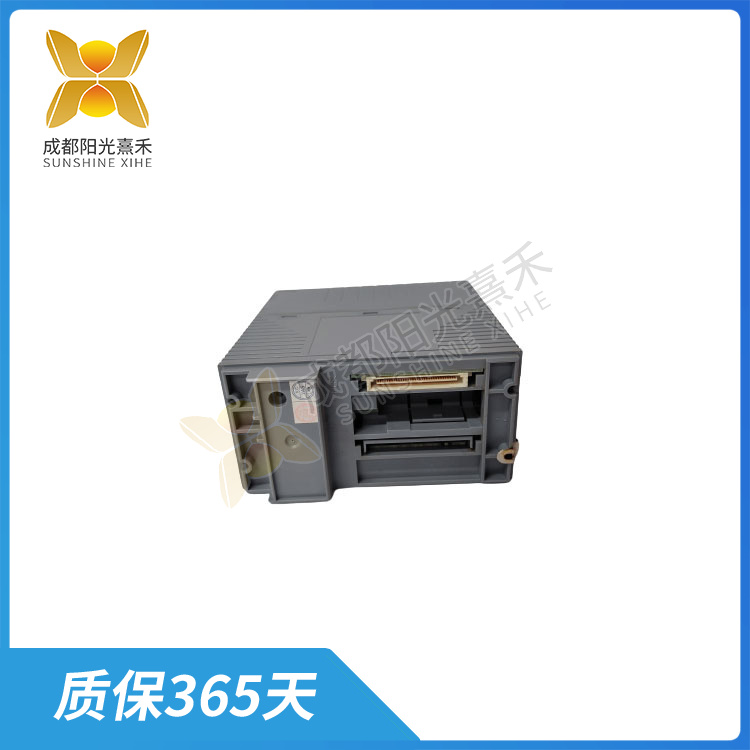

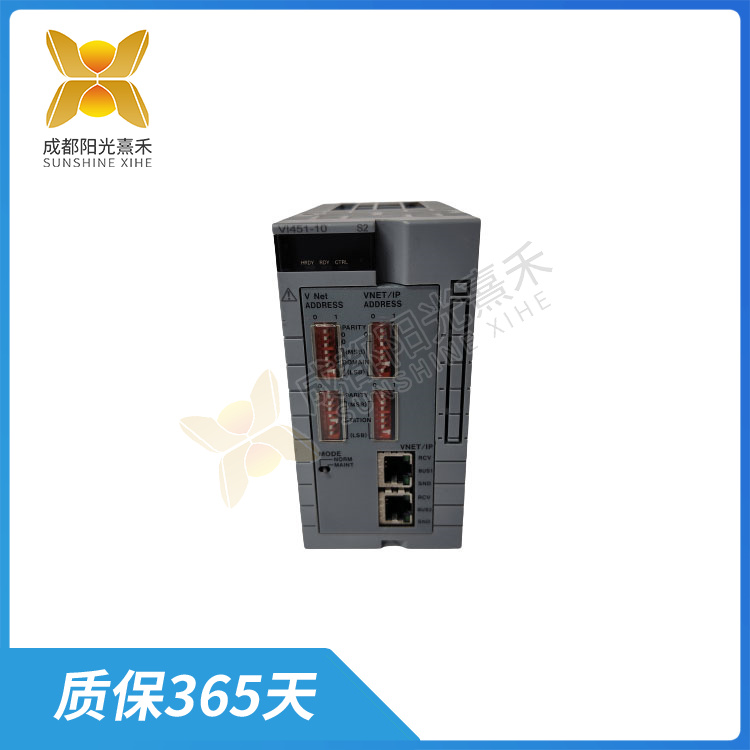

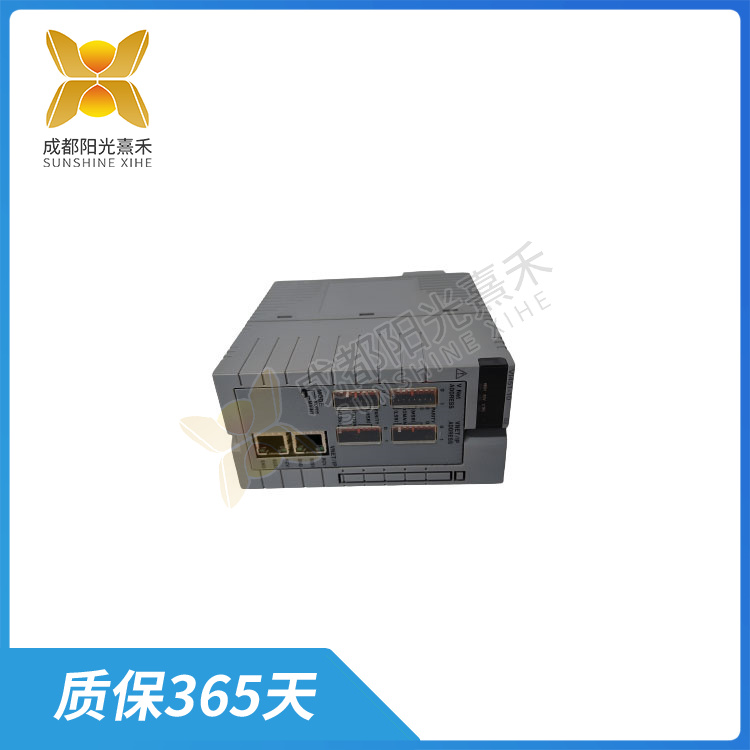

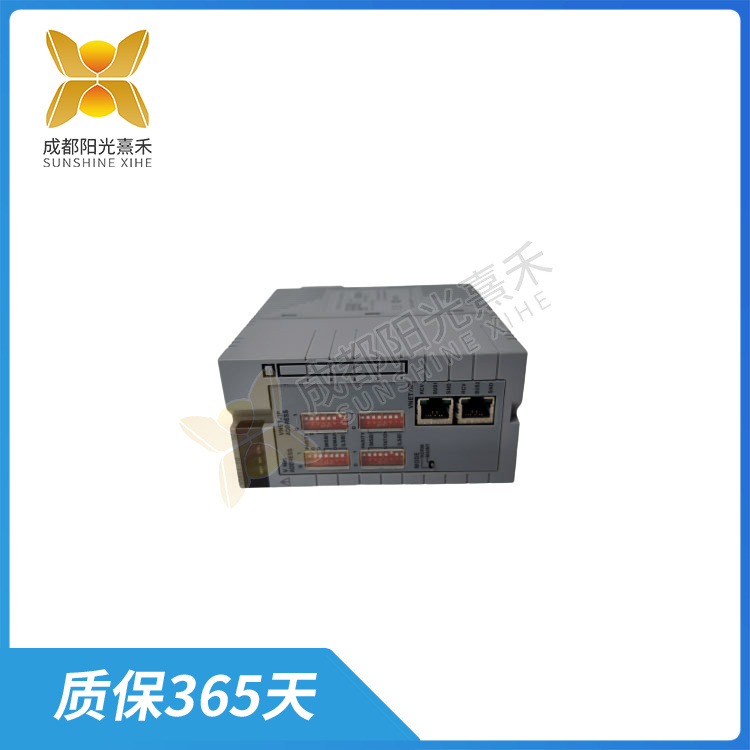

YOKOGAWA VI451-10 將機械或電子信號轉換為數字信號，以便計算機或其他數字設備進行處理

編碼器模塊的工作原理主要是基于光電或磁性技術，YOKOGAWA VI451-10將機械或電子信號轉換為數字信號，以便計算機或其他數字設備進行處理。

在編碼器模塊中，光源通常是一個穩定的、非常明亮的光源，例如發光二極管（LED）。光電傳感器則是一個能夠測量光強度的器件，通常由一個發光二極管和一個光敏二極管組成。當物體旋轉時，光源會發出光線，照射到光柵或碼盤上。如果光線穿過了突起，那么光電傳感器就會感受到強光，并輸出一個高電平信號；如果光線穿過了凹槽，那么光電傳感器就會感受到弱光，并輸出一個低電平信號。這樣，逐個掃描每個刻度，就可以得到一個完整的二進制編碼，表示旋轉的角度或位置。

編碼器模塊廣泛應用于汽車音響、示波器、鼠標等設備，可以通過正向和反向轉動輸出脈沖計數，而且轉動計數是沒有限制的，它的工作電壓是5伏。

此外，YOKOGAWA VI451-10 多圈編碼器則是通過增加齒輪傳動和碼盤數量來擴大測量范圍。增量式旋轉編碼器則是通過內部兩個光敏接受管轉化角度碼盤的時序和相位關系，得到角度碼盤角度位移量增加（正方向）或減少（負方向）。

YOKOGAWA VI451-10 將機械或電子信號轉換為數字信號，以便計算機或其他數字設備進行處理

The working principle of the encoder module is mainly based on photoelectric or magnetic technology, and the YOKOGAWA VI451-10 converts mechanical or electronic signals into digital signals for processing by computers or other digital devices.

In an encoder module, the light source is usually a stable, very bright light source, such as a light-emitting diode (LED). A photosensor is a device that measures the intensity of light, usually consisting of a light-emitting diode and a photosensitive diode. When the object rotates, the light source emits light that hits the grating or the code disk. If the light passes through the protrusion, the photoelectric sensor senses the bright light and outputs a high level signal; If the light passes through the groove, the photoelectric sensor senses the weak light and outputs a low level signal. This way, scanning each scale one by one gives a complete binary code representing the Angle or position of the rotation.

The encoder module is widely used in car audio, oscilloscope, mouse and other equipment, can output pulse counting through forward and reverse rotation, and rotation counting is no limit, its operating voltage is 5 volts.

In addition, the YOKOGAWA VI451-10 multi-turn encoder expands the measurement range by increasing the number of gears and dials. The incremental rotary encoder converts the timing and phase relationship of the Angle codec through two photosensitive tubes inside, and the Angle displacement of the Angle codec increases (positive direction) or decreases (negative direction).
