描述

WT310 數字功率器 用于測量交流（AC）和直流（DC）功率

特征
全點顏色帶來卓越的易讀性液晶顯示:即使在清晨和傍晚陽光直射的情況下，也能確保顯示屏的高可見度。用戶可以從儀表、趨勢顯示、條形圖、警報和事件顯示中自由訪問所需的操作顯示。所有參數都可以通過前面板顯示屏進行設置。

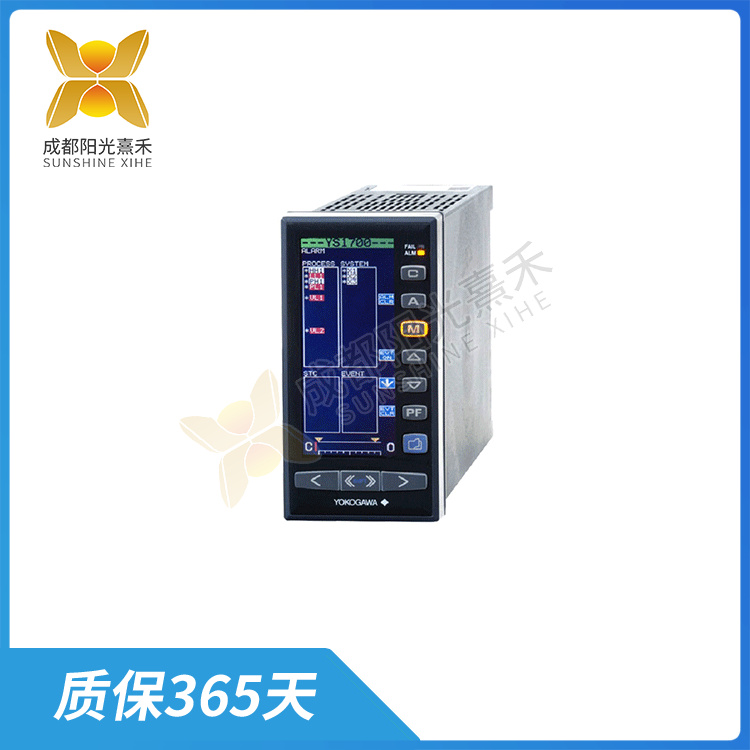

功能塊編程:除了與早期型號兼容的文本編程外，YS1700還提供了新的基于GUI的編程方法，即功能塊編程。YS 1000系列可選的YSS1000設置軟件用于開發用戶程序。

大編程容量:文本程序的程序容量為1000步，功能塊程序的程序容量為400個模塊。

更強大的控制和計算功能:IEEE7 54格式的四字節浮點計算允許在計算中使用實際值。有- -百多種計算模塊，包括指數和對數函數、溫度補償和壓力補功能選擇模式(無需編程):多功能控制器模式允許從常用功能(單回路、級聯或選擇器控制)中選擇控制，無需編程。數字和模擬輸入/輸出(DIs、DOs、Als和AOs)的功能分配可由參數設置決定。

可擴展I/O:帶有可擴展l/O的基本型有八個模擬輸入、四個模擬輸出、十個數字輸入或十個數字輸出(總共十四個數字輸入和輸出)。

自動防故障:由于采用了雙CPU(-個用于控制，一個用于顯示),即使任一-CPU出現故障 ，也能進行顯示和手動操作。獨立于數字電路并入的硬手動電路使得控制器輸出能夠在包括兩個CPU的數字電路故障期間被手動調整。(當指定了/NHM選項時，不包含硬手動電路。)肝存儲器備份的非易失性存儲器:沒有電池或電容器用于內存?zhèn)浞荩阌诰S護。

賄寬工作電壓范圍的交流/DC雙電源，確保電源電壓波動的穩定性:可以由交流(100伏)或DC (24伏)電源驅動。此外，DC電源能夠接收沒有極性的電力。(如果使用220 V交流電源，必須在訂購時指定。)250毫米深(僅適用于基本型)

防塵防濺IP54面板(僅適用于基本型)

CE標志(僅適用于基本型和YS100兼容型)
FM非易燃防爆(僅基本型可選)

通信(可選)-以太網(Modbus/TCP;僅用于基本類型)- RS485 (PC鏈接、Modbus、 點對點通信和YS協議;不適用于YS80內部裝置兼容型)- DCS-
LCS通信。

WT310 數字功率器 用于測量交流（AC）和直流（DC）功率

trait
The all-point color results in excellent legibility of the LCD display: high visibility of the display is ensured even in direct sunlight in the early morning and evening. Users can freely access the required action display from the meter, trend display, bar chart, alert and event display. All parameters can be set through the front panel display.

Feature block Programming: In addition to text programming that is compatible with earlier models, the YS1700 also offers a new GUI-based programming approach known as feature block programming. The YS 1000 series optional YSS1000 setup software is used to develop user programs.

Large programming capacity: the program capacity of the text program is 1000 steps, and the program capacity of the function block program is 400 modules.

More powerful control and computation: four-byte floating point computation in IEEE7 54 format allows the use of actual values in calculations. There are more than 100 calculation modules, including exponential and logarithmic functions, temperature compensation, and pressure complement function selection modes (no programming required): The multifunction controller mode allows you to select controls from common functions (single loop, cascade, or selector control) without programming. The functional allocation of digital and analog inputs/outputs (DIs, DOs, Als, and AOs) can be determined by parameter Settings.

Expandable I/O: The base model with expandable l/O has eight analog inputs, four analog outputs, ten digital inputs, or ten digital outputs (fourteen digital inputs and outputs in total).

Fail-proof: Due to the use of dual cpus (one for control and one for display), even if either CPU fails, it can be displayed and manually operated. The hard manual circuit, independent of the digital circuit incorporation, allows the controller output to be manually adjusted during the digital circuit failure of both cpus. (When the /NHM option is specified, hard manual circuits are not included.) Non-volatile memory for liver memory backup: No batteries or capacitors for memory backup, easy maintenance.

Ac /DC dual power supply with wide operating voltage range ensures stability of power supply voltage fluctuations: it can be driven by AC (100 volts) or DC (24 volts) power supply. In addition, DC power supplies are capable of receiving power without polarity. (If 220 V AC power is used, it must be specified at the time of ordering.) 250 mm deep (basic model only)

Dust and Splash IP54 panel (basic model only)

CE mark (only for basic and YS100 compatible models)
FM Non-flammable and explosion-proof (only basic model optional)

Communication (optional)- Ethernet (Modbus/TCP; For basic types only)- RS485 (PC link, Modbus, point-to-point communication and YS protocol; Not applicable to YS80 internal device compatible type)- DCS-
LCS communication.
