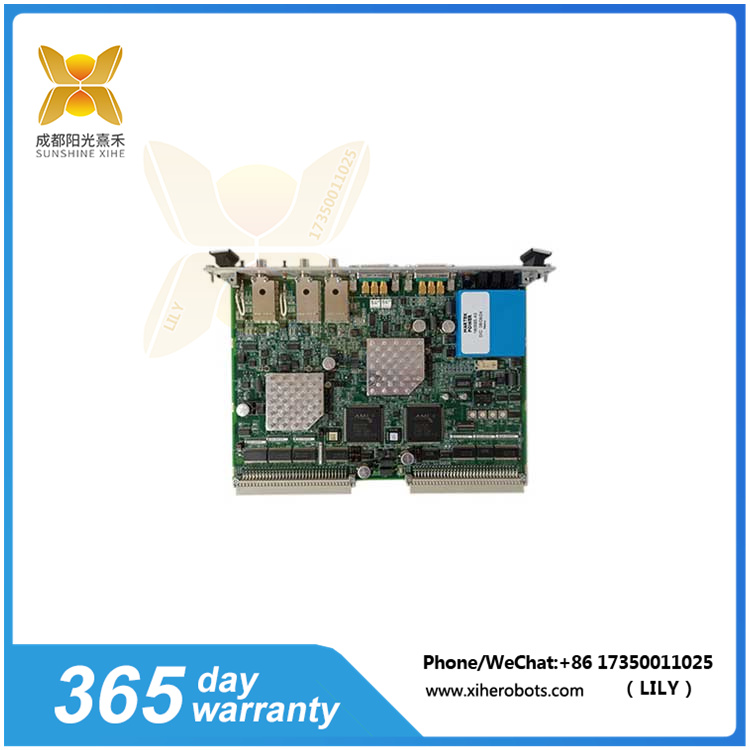

ZMI-2002?8020-0211 ZYGO 高性能雙軸測量板 成都陽光熹禾

ZMI-2002?8020-0211 ZYGO 高性能雙軸測量板 成都陽光熹禾

  • 型號：ZMI-2002 8020-0211-1-J
  • 品牌：ZYGO
  • 系列：ZMI-2000
  • 功能：用于測量表面形貌和輪廓的雙軸測量板
分類：

描述

產品細節說明:ZMI-2002?8020-0211 ZYGO 高性能雙軸測量板

該雙軸測量板適用于各種精密測量和控制系統，包括光學元件制造、半導體制造、數據存儲、精密機械加工和科研等領域。它能夠測量表面粗糙度、臺階高度、坡度和其他表面形貌參數，并檢測表面缺陷，如劃痕、坑洼和顆粒。此外，它還可用于分析表面形貌與光學性能或設備性能之間的關系，以及進行質量控制和工藝改進

  • 雙軸測量：允許同時測量兩個測量軸，適合需要二維測量或控制的應用場景。
  • 高精度：通常采用高精度傳感器和電路設計，以實現高精度測量和控制。
  • 可編程性：支持多種編程語言和協議，便于開發和定制。
  • 模塊化設計：采用模塊化設計，便于擴展和定制，可根據不同的應用需求進行配置和擴展

ZMI-2002?8020-0211

產品詳情參數:ZMI-2002?8020-0211 ZYGO 高性能雙軸測量板

  • 光源：633 nm 激光
  • 傳感器：CMOS 陣列
  • 分辨率：小于 1 納米 (< 1 nm)
  • 測量范圍：X 軸 50 毫米 (mm)，Y 軸 25 毫米 (mm)
  • 精度：±0.1 微米 (μm)
  • 工作溫度：0°C 至 +40°C
  • 保護等級：IP54
  • 尺寸：229 x 114 x 29 毫米 (mm)
  • 重量：1.2 公斤 (kg)

ZMI-2002 8020-0211 ZYGO? ?應用領域:

這款測量板以其高精度測量、雙軸同步測量、數字化信號處理、兼容性與擴展性為主要特點，并可能配套有專業的控制軟件，使用戶可以配置測量參數、實時監控測量結果并進行數據分析 。

Product Details: ZMI-2002 8020-0211 ZYGO High Performance Dual Axis Measurement Board

This dual axis measuring board is suitable for various precision measurement and control systems, including optical component manufacturing, semiconductor manufacturing, data storage, precision machining, and scientific research. It can measure surface roughness, step height, slope, and other surface morphology parameters, and detect surface defects such as scratches, potholes, and particles. In addition, it can also be used to analyze the relationship between surface morphology and optical or equipment performance, as well as for quality control and process improvement

Dual axis measurement: allows simultaneous measurement of two measurement axes, suitable for applications that require two-dimensional measurement or control.
High precision: Typically, high-precision sensors and circuit designs are used to achieve high-precision measurement and control.
Programmable: Supports multiple programming languages and protocols for easy development and customization.
Modular design: Adopting modular design, it is easy to expand and customize, and can be configured and expanded according to different application needs
Product details and parameters: ZMI-2002 8020-0211 ZYGO high-performance biaxial measuring board
Light source: 633 nm laser
Sensor: CMOS array
Resolution: Less than 1 nanometer (<1 nm)
Measurement range: X-axis 50 millimeters (mm), Y-axis 25 millimeters (mm)
Accuracy: ± 0.1 micrometers (μ m)
Working temperature: 0 ° C to+40 ° C
Protection level: IP54
Size: 229 x 114 x 29 millimeters (mm)
Weight: 1.2 kilograms (kg)
ZMI-2002 8020-0211 ZYGO Application Fields:

This measuring board is mainly characterized by its high-precision measurement, dual axis synchronous measurement, digital signal processing, compatibility and scalability, and may be equipped with professional control software, allowing users to configure measurement parameters, monitor measurement results in real time, and perform data analysis.
