描述

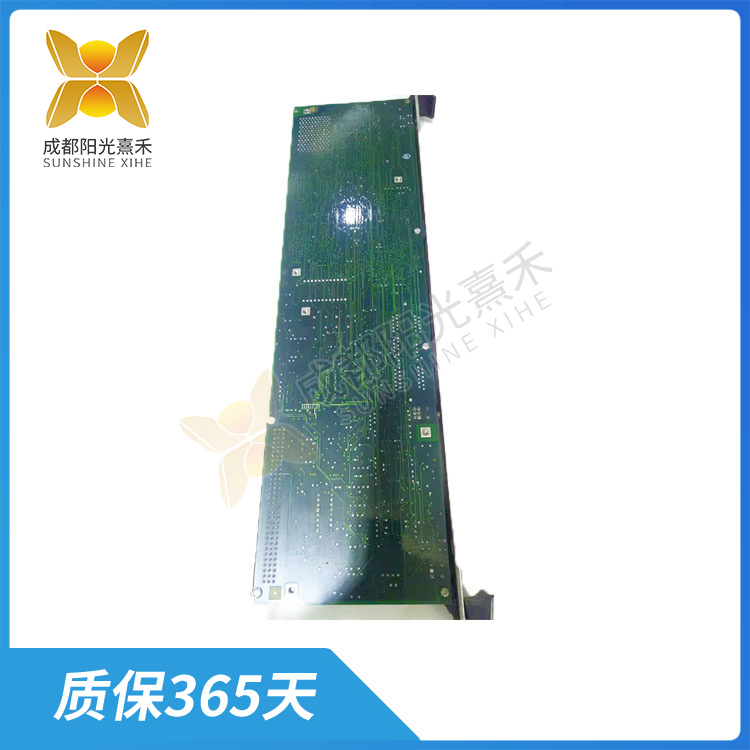

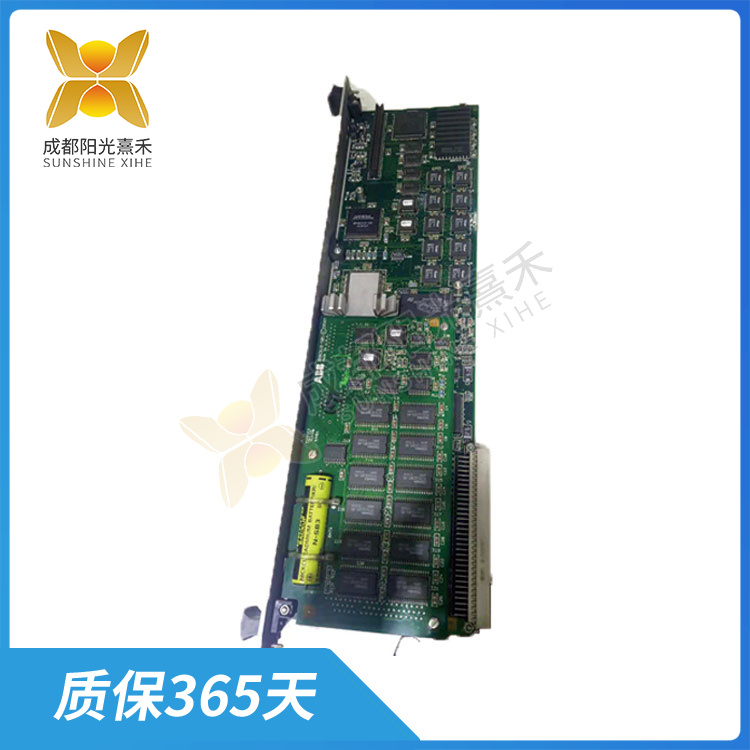

086349-002 伺服控制器

086349-002是一款伺服控制器，工作原理主要涉及到指令接收、指令解析、速度與位置計算以及控制信號輸出等步驟。

首先，伺服控制器接收來自外部（如上位機或其他控制器）的指令，這些指令可以是數字信號或模擬信號，但通常會被轉換成數字信號以便于處理。

接下來，伺服控制器對接收到的指令進行解析，了解需要執行的具體動作和要求。

然后，根據當前的位置和速度，以及目標位置和速度，伺服控制器會計算出需要施加給執行器的力或扭矩，以及移動的速度。這個計算過程涉及到復雜的算法和數學模型，以確保精確控制。

最后，伺服控制器根據計算結果輸出控制信號，控制電路接收到這些信號后，會控制機械系統實施相應的控制動作，從而達到系統的預期目標。

總的來說，086349-002通過接收、解析指令，計算速度與位置，并輸出控制信號，實現對機械系統的精確控制。這種控制方式廣泛應用于需要高精度定位和運動控制的場合，如工業機器人、數控機床等。

086349-002 伺服控制器

086349-002 is a servo controller, the working principle is mainly involved in command reception, command analysis, speed and position calculation and control signal output steps.

First, the servo controller receives instructions from an external source (computer or other controller), which can be digital or analog signals, but are usually converted to digital signals for easy processing.

Next, the servo controller parses the received instructions to understand the specific actions and requirements that need to be performed.

Then, based on the current position and speed, as well as the target position and speed, the servo controller calculates the force or torque that needs to be applied to the actuator, as well as the speed of movement. This calculation process involves complex algorithms and mathematical models to ensure precise control.

Finally, the servo controller outputs the control signals according to the calculation results. After receiving these signals, the control circuit will control the mechanical system to implement the corresponding control actions, so as to achieve the expected goal of the system.

In general, 086349-002 achieves precise control of mechanical systems by receiving and analyzing instructions, calculating speed and position, and outputting control signals. This control method is widely used in the need of high-precision positioning and motion control, such as industrial robots, CNC machine tools and so on.
