描述

133819-02? 提供六個溫度監控通道

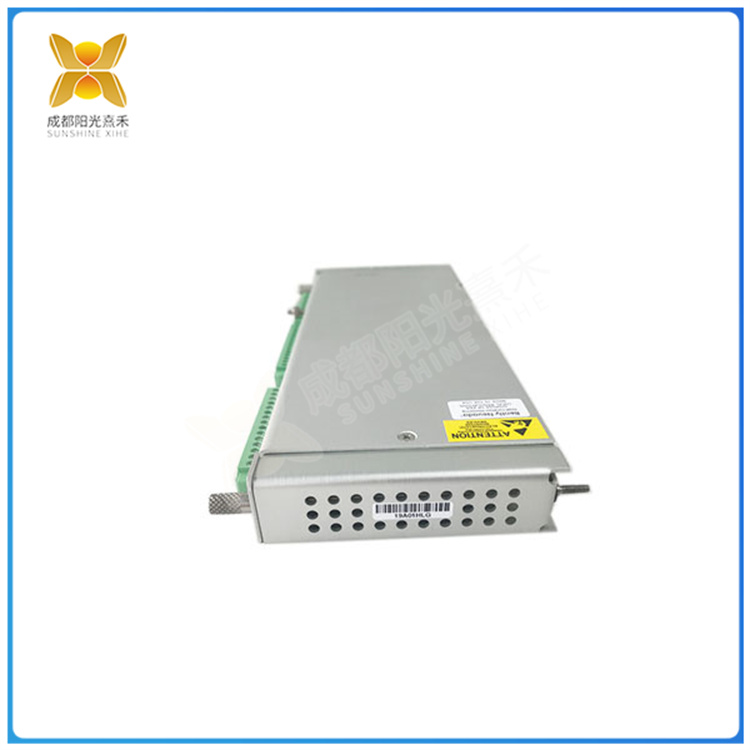

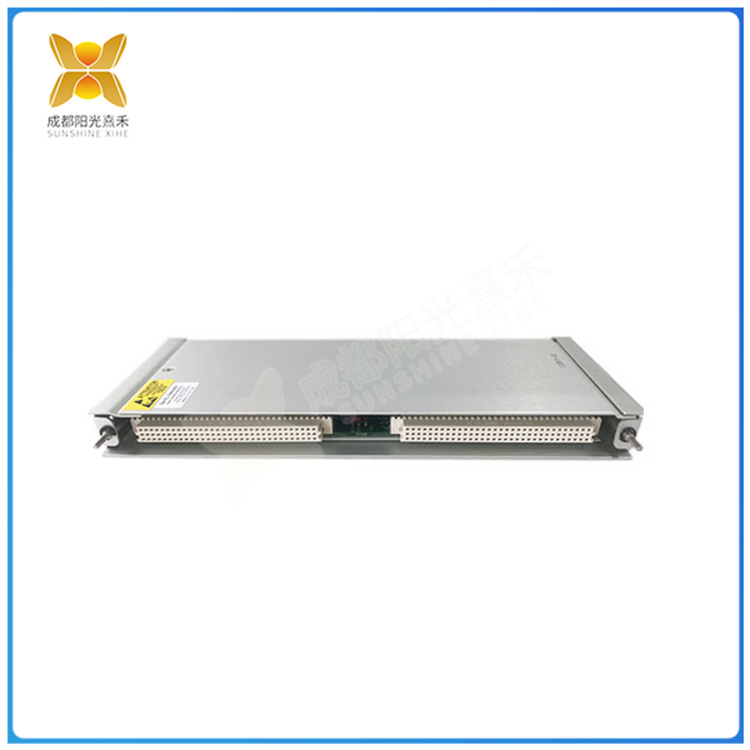

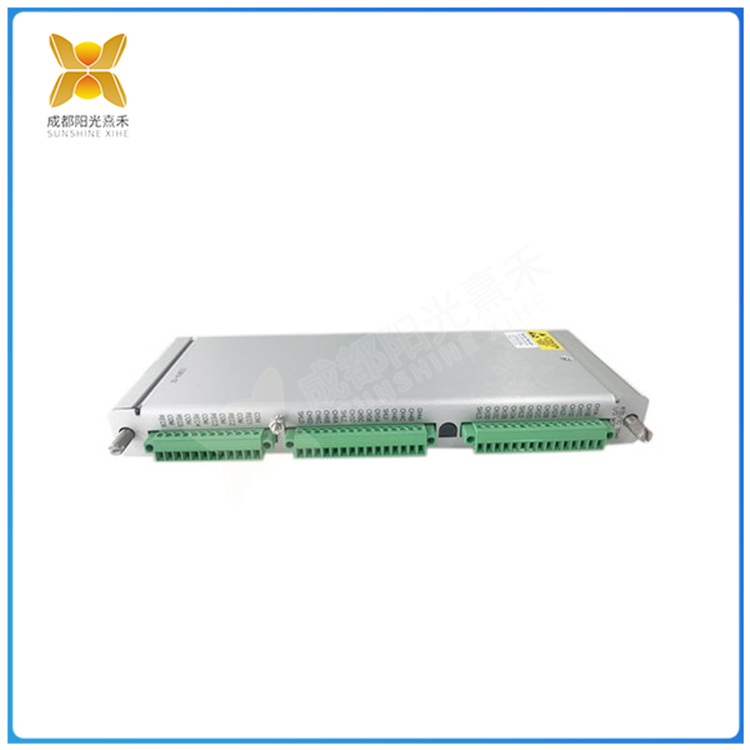

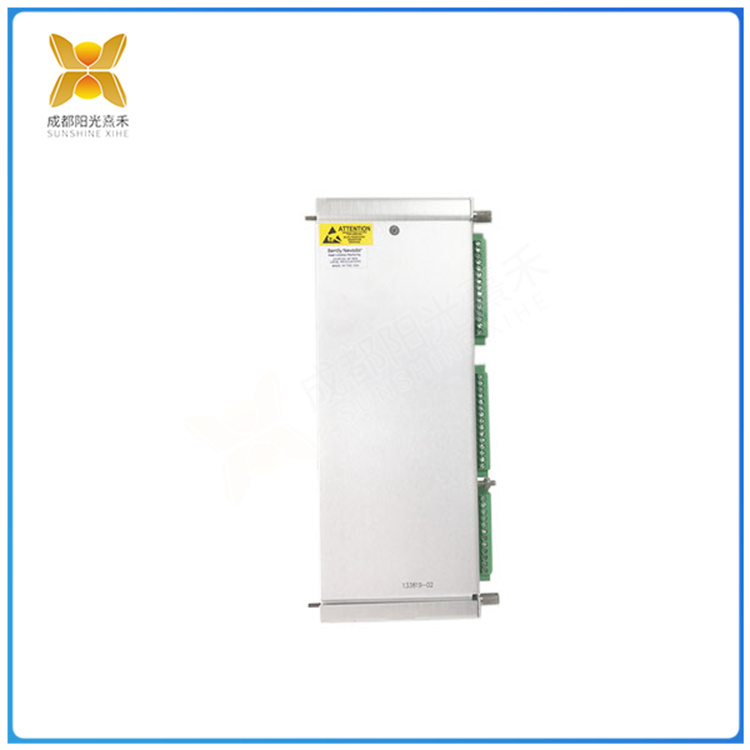

133819-02是由通電氣公司開發的RTD/TC溫度1/O模塊。它是一個3500/61 RTD/TC非隔離I/O模塊，帶有內部終端。除此之外，系統還具有溫度監控功能，接收電阻溫度檢測器和熱電偶溫度輸入。系統模塊調節這些輸入。他們將其與用戶可編程的報警設定值進行比較。

133819-02功能描述

●GE/ Bently Nevada 3500/60和3500/61系列溫度監控模塊支持熱電偶(TC)和電阻溫度檢測器(RTD)溫度輸入，提供六個溫度監控通道。這些輸入由模塊有條件地與用戶可編程報警設定值進行比較。3500/60和3500/61之間的唯一 區別是, 后者的六個通道都有記錄器輸出,而前者沒有。

●使用3500框架配置軟件,用戶配置模塊進行RTD或TC溫度讀數。有多種I/O模塊是RTD/TC非隔離或TC隔離的。RTD/TC非隔離型可配置為接受TC、RTD或TC和RTD的組合輸入。TC隔離版本提供250 Vdc的通道間隔離，以防止外部干擾。

●在三模冗余(TMR)設置中使用時，溫度監測器必須三個-組并排安裝。當以這種方式設置時，系統使用兩種不同的投票方法來保證準確性并防止單點故障。

133819-02系統還具有溫度監控功能，接收電阻溫度檢測器和熱電偶溫度輸入

133819-02? 提供六個溫度監控通道

133819-02 is an RTD/TC temperature 1/O module developed by Tong Electric Company. It is a 3500/61 RTD/TC non-isolated I/O module with an internal terminal. In addition, the system also has a temperature monitoring function, receiving resistance temperature detector and thermocouple temperature input. The system module adjusts these inputs. They compared it to a user-programmable alarm setpoint.

None. 133819-02 Function Description

The GE/ Bently Nevada 3500/60 and 3500/61 series temperature monitoring modules support thermocouple (TC) and resistance temperature detector (RTD) temperature input and provide six temperature monitoring channels. These inputs are conditionally compared by the module to user programmable alarm setpoints. The only difference between 3500/60 and 3500/61 is that the latter has recorder outputs in all six channels, while the former does not.

Using 3500 frame configuration software, the user configs the module for RTD or TC temperature readings. There are many types of I/O modules that are RTD/TC non-isolated or TC-isolated. The RTD/TC non-isolated type can be configured to accept TC, RTD, or a combination of TC and RTD inputs. The TC isolation version provides 250 Vdc inter-channel isolation to prevent external interference.

When used in a three-mode redundancy (TMR) setup, the temperature monitor must be mounted in three – groups side by side. When set up in this way, the system uses two different voting methods to guarantee accuracy and prevent a single point of failure.

The 133819-02 system also has a temperature monitoring function, receiving resistance temperature detector and thermocouple temperature input
