1746-A7 SLC 7 插槽機箱

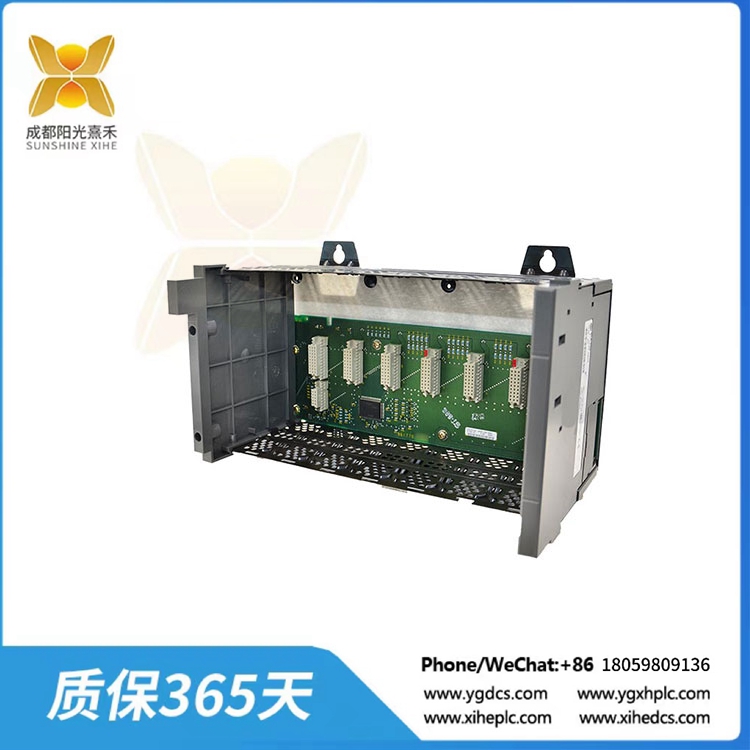

Allen-Bradley 1746-A7包含模塊化處理器、通信適配器模塊和輸入輸出模塊。該機箱有7個插槽，是SLC 500模塊化機箱的一部分，提供了系統配置的靈活性。在模塊化系統中，每個機箱都需要自己的電源。SLC 500 1746-A7模塊化機箱可以作為一個獨立單元在一個系統中使用，也可以與另一個或兩個本地機箱一起工作。機箱互聯電纜可用于構建多個機箱配置和擴展信號線。這最多可以創建總共30個I/O插槽。使用不同長度的1746-C9或1746-C16線纜垂直連接機箱。兩根電纜都有一個剛性的，不彎曲的收縮包，當模塊連接在另一個下面時，可以緩解應變。水平布線時，使用1746-C7線纜。不要使用任何其他電纜進行安裝。電纜過長可能會影響數據通信的完整性，導致操作不安全。

從1746-A7機箱到接地母線進行接地連接可以降低電阻。接地時，請勿將兩個耳耳直接疊在一起。壓縮會導致這些連接變得松動。1746-A7的最大背板電流為10A時的5.1伏直流電流或2.88A時的24伏直流電流。為獲得最佳性能，工作環境溫度為0℃~ 60℃(32℃~ 140℉)，相對濕度為5% ~ 95%(無冷凝)。

1746-A7是一款SLC 500機箱，可安裝SLC 500模塊，如SLC處理器、SLC IO模塊、SLC通信適配器和專用模塊。

1746-A7具有7個插槽，通過在控制器所在的主機箱上再連接2個機箱，可以擴展到21個模塊。這是通過使用部件號為1746-C9, 1746-C7和其他不同長度的互連電纜來完成的。每個機箱需要單獨的電源，但只需要一個SLC 500處理器。該處理器應放置或安裝在主機箱上。擴展機箱被視為遠程IO機架。

SLC 500還有其他型號的底盤，包括1746-A13、1746-A10和1746-A4。所有這些機箱，包括1746-A7都有一個嵌入式電子電路，它連接到電源插槽。該電路用作背板，其中功率被分配到插入的模塊。同時作為處理器和模塊之間的信息交換，因此，SLC 500模塊化控制器離不開機箱。

在其他術語中，機箱也可以稱為機架或背板。在典型的應用中，這個機箱是水平安裝的。如果系統需要一個以上的底盤，也允許并排安裝，前提是有精確的面板空間，并保持7.7厘米至10.2厘米或3.0至4.0英寸的建議間隔。

1746-A7 SLC 7 插槽機箱

The Allen-Bradley 1746-A7 houses the modular processor, communication adapter module, and input and output modules. This chassis is built with 7 slots that is part of the SLC 500 Modular Chassis that provide flexibility in the configuration of systems. In a modular system, each chassis will require its own power supply. The SLC 500 1746-A7 Modular Chassis can be used as a standalone unit in one system or can work with another one or two local chassis. The chassis interconnection cable can be used to build multiple chassis configurations and extend signal lines. This can create a total of 30 I/O slots at maximum. Interconnect chassis vertically with the 1746-C9 cable or 1746-C16 cable that comes in different lengths. Both cables have a rigid, unbending shrink wrap for strain relief when linking modules with one below another. For a horizontal layout, use the 1746-C7 cable. Do not use any other cables for the setup. Longer cables may affect data communication integrity leading to unsafe operation.

Running a ground connection from the 1746-A7 Chassis to the ground bus reduces electrical resistance. When grounding, do not lay one lug directly on top of another. Compression can cause these connections to become loose. The 1746-A7 has a maximum backplane current of 5.1 Volts DC at 10A or ?24 Volts DC at 2.88A. For optimal performance, operate in temperatures between 0 degrees Celsius to 60 degrees Celsius (32 to 140 degrees Fahrenheit), and relative humidity of 5% to 95% (without condensation).

The 1746-A7 is an SLC 500 chassis that provides mounting to SLC 500 modules such as SLC processors, SLC IO modules, SLC Communication adapters and specialty module.

The 1746-A7 features Seven (7) slots with which may be expanded up to 21 modules by connecting an additional of Two (2) more chassis from the main chassis where the controller resides. This is done with the use of interconnection cables with part number 1746-C9, 1746-C7 and other interconnect cables with varying lengths. Each chassis requires individual power supply but only one SLC 500 processor is needed. This processor shall be stationed or installed to the main chassis. The expansion chassis are treated as remote IO racks.

SLC 500 come with other variants of chassis including 1746-A13, 1746-A10 and 1746-A4. All of these chassis, including the 1746-A7 has an embedded electronic circuitry which is connected to the Power Supply slot. This circuitry is used as the backplane where power is distributed to the inserted modules. It also serves as the information exchanged between the processor and modules therefore, an SLC 500 Modular Style controller cannot be operated without a chassis.

In other terminologies, chassis may also referred to as Rack or Backplane. In typical applications, this chassis is installed horizontally. If more than one chassis is needed by the system, side by side installation is also permitted provided that there is accurate panel space and the recommended separation of 7.7 cm to 10.2 cm or 3.0 to 4.0 inches is maintained.
