1746-IA16 交流輸入模塊

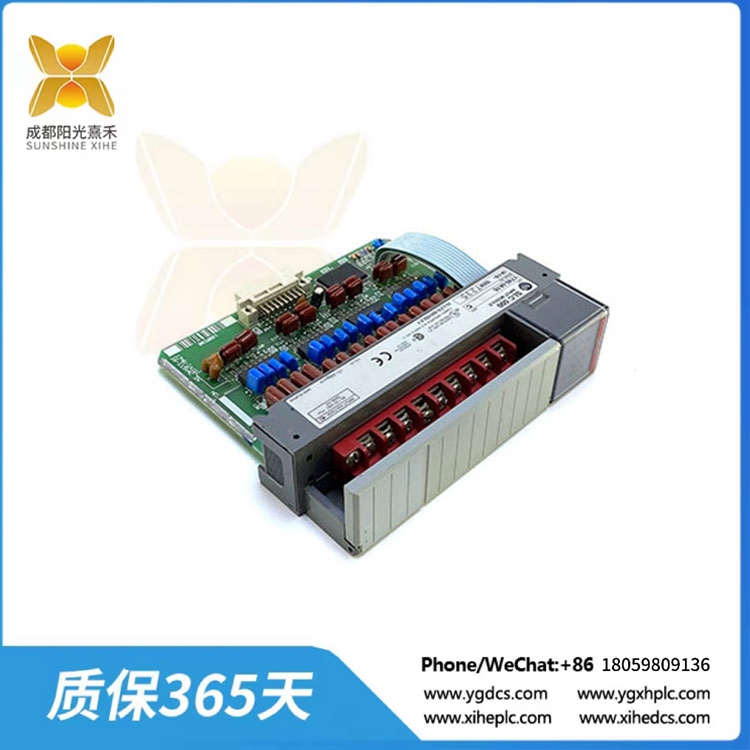

Allen-Bradley 1746-IA16是一種交流輸入模塊，兼容用作SLC 500控制器平臺的組件。該輸入模塊有16個通道，接受交流信號電壓范圍為85-132 VAC。

輸入模塊是任何可編程邏輯控制器(PLC)的必要組成部分，因為它在過程中為離散設備提供實時接口。它表示信令設備的實際狀態，供控制器進行邏輯處理時參考。大多數PLC系統將輸入掃描作為執行用戶程序的主要階段。如果沒有檢測到輸入信號，控制器將沒有執行程序的參考。

這個交流輸入模塊有二十(20)個端子。所有終端都使用終端18和19作為內部連接的公地。該模塊的端子塊是可移動的，允許更換輸入模塊，同時消除了重新連接輸入端子的需要。

它具有可調參數，以微調模塊的操作。只要機箱有可用槽位支持安裝，安裝1746-IA16時不受限制。本模塊可以安裝在固定硬件或模塊化硬件類型的控制器中，也可以安裝在本地或擴展機架中。

本模塊屬于slc500交流輸入模塊，工作電壓范疇為100-120VAC。對于200/240VAC電壓操作，對應部件號為17460IM16。兩個模塊都不提供內部保護電路。任何將端接到該模塊的交流輸入設備都應與SLC 500輸入電路的浪涌電流兼容。

Allen-Bradley 1746-IA16重0.34公斤，尺寸為5 × 2 × 6(13厘米× 5厘米× 15厘米)。控制器模塊每點0.27瓦，最小為0.425瓦，總計4.8瓦。該模塊具有100 – 120V交流輸入信號電壓類別，每公共16點和16輸入。1746-IA16是一個通用的輸入應用程序。安裝為底盤式，有16個通道。工作電壓范圍從85 – 132V交流輸入信號。它有一個用于可編程控制器的16通道數字交流輸入模塊。工作電壓為85 – 132V AC, 47 – 63hz工作頻率。5V DC時背板電流消耗為0.085 mA, 24V DC時為0.0 A。

ON-delay的信號在35ms時最大，OFF-delay的信號在45ms時最大。而最大OFF狀態電壓達到30V AC, OFF狀態電流為2ma。120V AC時的輸入電流為12 mA標稱電流。1746-IA16的浪涌時間最長可達500微秒，最大浪涌電流為0.8 mA。

1746-IA16 交流輸入模塊

The Allen-Bradley 1746-IA16 is an AC input module compatible for use as component of SLC 500 controller platform. This input module has Sixteen (16) channels that accepts AC signal voltage range of 85-132 VAC.

Input modules are necessary components of any Programmable Logic Controller (PLC) as it provides real-time interface to discrete devices in the process. It represents the actual state of signaling devices for reference of the controller for processing the logic. Most PLC systems perform Input scan as the primary phase for executing a user program. If input signals are not detected, the controller will have no reference for executing the program.

This AC input module has Twenty (20) terminals. All terminals are used with terminals 18 and 19 serving as internally connected commons. The terminal block of this module is removable allowing replacement of the input module while eliminating the need to reconnect the input terminations.

It has adjustable parameters to fine tune the module’s operation. There is no limit when installing the 1746-IA16 as long as the chassis has available slots to support the installation. This module may be installed in fixed hardware or modular hardware style controller, locally or in an expansion rack.

This module belongs to SLC 500 AC input module with operating voltage category of 100-120VAC. For 200/240VAC voltage operation, the counterpart part number is 17460IM16. Both modules does not offer internal protection circuitry. Any AC input device that will be terminated to this module shall be compatible with SLC 500 input circuit inrush current.

The Allen-Bradley 1746-IA16 weighs 0.34 kg and has 5 x 2 x 6 (13 cm x 5 cm x 15 cm) dimension. The controller module has 0.27 watts per point with min to 0.425 Watts and a total of 4.8 Watts. The module has a 100 – 120V AC input signal voltage category with 16 points per common and 16 inputs. The 1746-IA16 is a general-purpose input application. The mounting is a chassis-type and has 16 channels. The operating voltage ranges from 85 – 132V AC input signal. It has a 16-channel digital AC input module for a programmable controller. The operating voltage is 85 – 132V AC at 47 – 63 Hz operating frequency. The back-plane current consumption at 5V DC is 0.085 mA and it is 0.0 A at 24V DC.

The signal for the ON-delay is at its max at 35 ms and the signal for the OFF-delay is at max at 45 ms. While the maximum OFF-state voltage reaches 30V AC and OFF state current of 2 mA. The input current at 120V AC is 12 mA nominal. The 1746-IA16 has an inrush current time duration at maximum to 500 microseconds and 0.8 mA maximum inrush current.
