描述

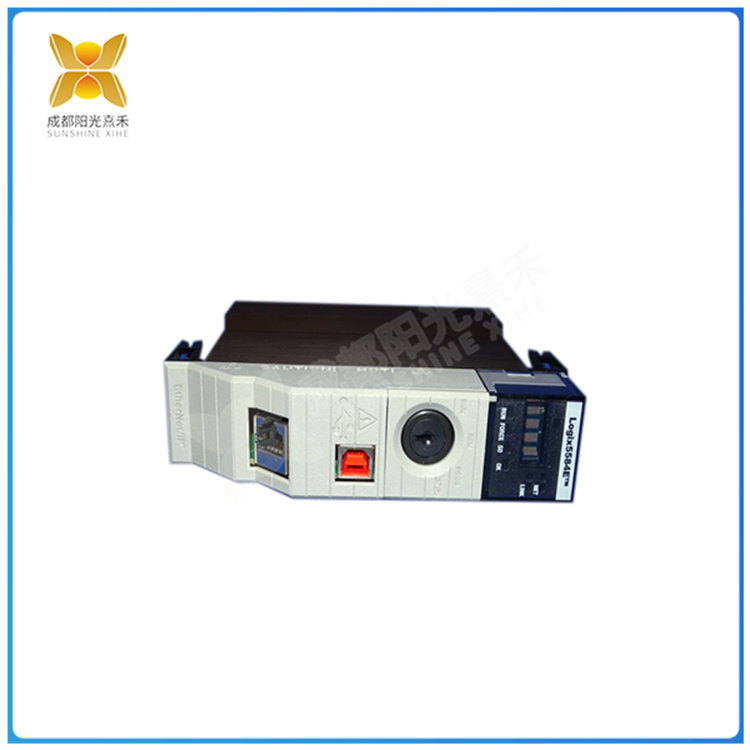

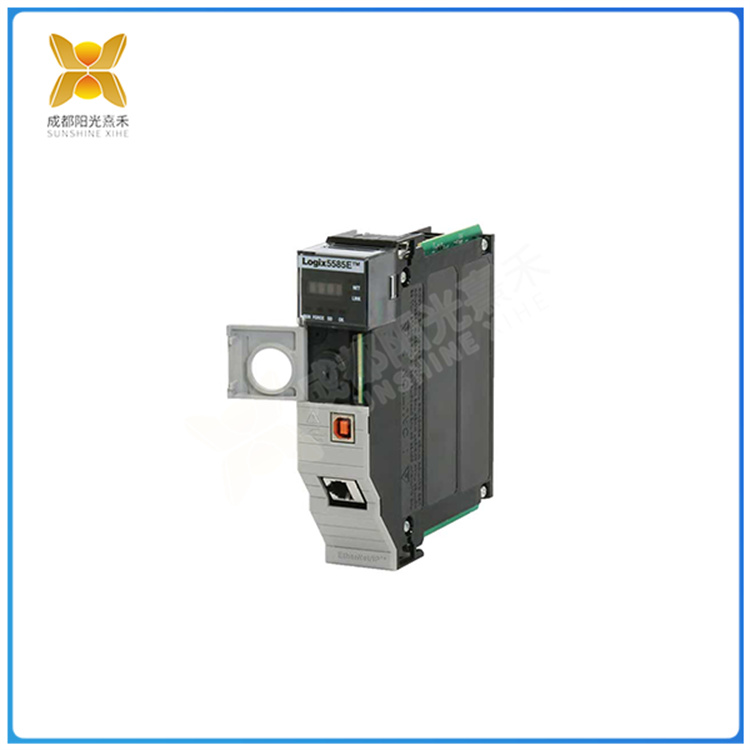

1756-L84E ControlLogix控制器

控制器可安裝到任何 1756 機箱插槽中，并使用單個插槽寬度?？刂破魍ㄟ^本地 I/O 事件觸發器機制執行的任務數量不受限制，編程是使用 Studio 5000 Logix Designer 應用程序版本 3.0 或更高版本實現的。1756-L84E 具有內置 USB 端口，專門用于編程、在線編輯和固件更新，不適用于危險條件。它還具有內置的嵌入式1 GB以太網端口，最多支持250個節點，并在EtherNet / IP網絡上提供增強的性能，更廣泛的通信和集成的運動控制。該控制器被指定為T4溫度代碼，并經過IEC測試，可在0-60度下工作。攝氏溫度范圍，在 5-95% 非冷凝相對濕度限制下不降低額定值。1756-L84E 可以承受 30G 的沖擊和 2G 的振動，整個控制器的重量約為 0.394kg。

Allen-Bradley 1756-L84E是一款ControlLogix控制器。該控制器屬于具有現代設計和連接的高端控制器。該控制器非常適合大型應用，因為它可用于連接和控制輸入和輸出設備，特別是128，000個離散輸入和輸出以及4000個模擬輸入和輸出。

Allen-Bradley 1756-L84E 是一款 ControlLogix 控制器，使用 Studio 5000 Logix Designer 編程軟件進行編程和配置。它支持本地 I/O 控制以及利用一種或多種通信協議（如 EtherNet/IP、ControlNet、DeviceNet、Data Highway Plus、Remote I/O、SynchLink 以及第三方進程和設備網絡

）實現分布式 I/O 架構 1756-L84E 帶有集成通信端口，如一 （1） 以太網 I/P。該嵌入式端口支持10/100/1000 Mbps的傳輸速度，可用于通過同一以太網網絡內的消息傳遞指令與人機界面（HMI）、監控和數據采集（SCADA）和其他控制器進行通信。此外，它還具有USB接口，可用于固件修訂和控制器參數的初始下載。USB 端口是支持 12 Mbps 通信速度的 USB 2.0。

A-B模塊1771-P4R 羅克韋爾 Allen-Bradley 優勢

1756-L84E ControlLogix控制器

The controller can be installed into any 1756 chassis slot and uses a single slot width. There is no limit to the number of tasks the controller can perform through the local I/O event trigger mechanism, and programming is implemented using the Studio 5000 Logix Designer application version 3.0 or later. The 1756-L84E has a built-in USB port designed for programming, online editing, and firmware updates, and is not intended for hazardous conditions. It also features a built-in embedded 1 GB EtherNet port that supports up to 250 nodes and provides enhanced performance, broader communication and integrated motion control over EtherNet/IP networks. The controller is specified as a T4 temperature code and is IEC tested to operate at 0-60 degrees. Celsius temperature range, with no reduction in rating at 5-95% non-condensing relative humidity limit. The 1756-L84E can withstand 30G of shock and 2G of vibration, and the weight of the entire controller is about 0.394kg.

The Allen-Bradley 1756-L84E is a ControlLogix controller. The controller is a high-end controller with modern design and connectivity. The controller is ideal for large applications as it can be used to connect and control input and output devices, especially 128,000 discrete inputs and outputs and 4,000 analog inputs and outputs.

The Allen-Bradley 1756-L84E is a ControlLogix controller that is programmed and configured using the Studio 5000 Logix Designer programming software. It supports local I/O control and utilizes one or more communication protocols such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink, and third-party processes and device networks

Implement distributed I/O architecture 1756-L84E with integrated communication ports such as (1) Ethernet I/P. The embedded port supports transfer speeds of 10/100/1000 Mbps and can be used to communicate with Human machine interface (HMI), supervisory control and Data acquisition (SCADA) and other controllers over messaging instructions within the same Ethernet network. In addition, it has a USB interface that can be used for firmware revisions and initial downloads of controller parameters. The USB port is USB 2.0 that supports 12 Mbps communication speed.

A-B Module 1771-P4R Rockwell Allen-Bradley advantage
